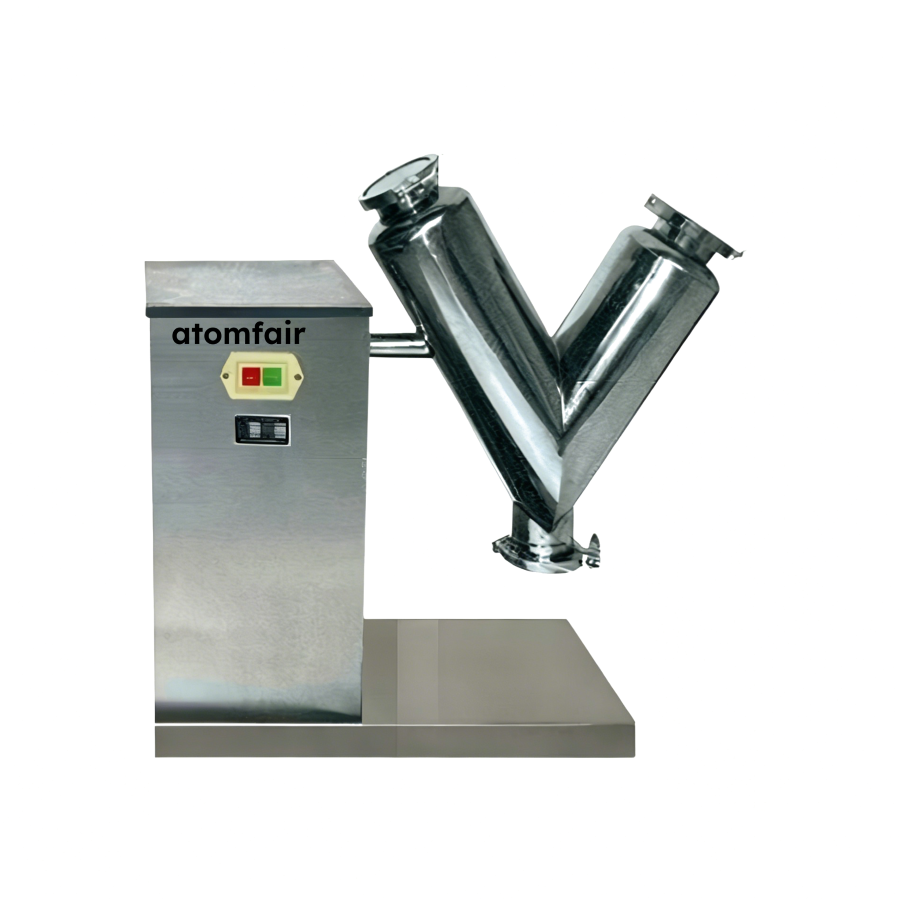

ATOMFAIR® v-type powder mixer machine featuring a polished stainless steel V-shaped barrel connected to a metallic control box with buttons.

V-Type Mixer VM-574 3L 20-60 RPM Digital Timer ATOMFAIR®

$1,504.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Stainless steel V-type mixer with 3L capacity, 20-60 rpm adjustable speed, and digital timer 1-900 min. Ideal for uniform powder mixing. Order now.

SKU: AFMSJQIR845
Category:
Brands:

Description

ATOMFAIR® V-TYPE MIXER / MODEL ATOMFAIR-VM-574

RESEARCH GRADE MATERIAL

Product Overview
The ATOMFAIR® premium **v-type mixer** (Model: Atomfair-VM-574) integrates a highly specialized mechanical transmission routing to provide absolute baseline homogeneity across dry powder and particulate scaling matrices. Utilizing an asymmetrical **unequal-height V-shaped cylinder**, the active material payload undergoes forced **reciprocating flipping and rolling** interactions that dismantle localized agglomerations. Forged entirely from research-grade stainless steel, the internal mixing environment completely removes geometric dead corners and material entrapment zones. This compact, variable-velocity mixer drastically lowers processing time barriers while ensuring uniform multi-batch results for advanced battery material research and industrial cleanroom workflows.

Technical Specifications
PARAMETER NAME SPECIFIC SPECIFICATIONS
Active Mixing Speed Range 20 – 60 rpm (Freely adjustable stepless profile)
Integrated Mixing Timer 1 – 900 minutes (Fully adjustable digital control countdown)
Mixing Cylinder Total Volume 3 L total geometric volume ceiling
Recommended Loading Coefficient 0.3 – 0.4 proportional fill factor for optimized fluidization
Chassis Structural Metallurgy Premium, chemical-resistant Stainless Steel (Full inner and outer assembly)
Kinematic Mixing Action Continuous non-destructive gravity-driven split-stream mechanical flipping
Alternative Options Explore our related catalog or custom dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.


Key Features & Advantages
  • Dead-Zone Free Split Kinematics: Designed with an unequal-height V-shaped cylinder that triggers aggressive reciprocating flipping and rolling actions, guaranteeing complete particle mixing without dead corners.
  • Full Stainless Steel Architecture: Forged entirely from research-grade stainless steel to deliver superior corrosion resistance, structural toughness, and cleanroom-compliant cross-contamination defense.
  • Zero Material Retention: Seamlessly polished internal tank walls ensure swift gravity discharge and zero powder accumulation, shortening cleanup turnaround periods between separate sample testing arrays.
  • Precision Programmable Telemetry: Outfitted with an integrated digital display timer and a stepless 20 to 60 rpm speed dial, allowing operators to accurately control structural parameters.
  • Highly Accelerated Mixing Timelines: Maximizes convective internal material translation boundaries to shorten blending cycles, substantially reducing labor and energy expenditure overheads.

APPLICATION SCOPE: Perfectly optimized for blending solid-state battery electrolyte powders, preparing composite electrode additives, blending metallurgical micro-powders, homogenizing pharmaceutical crystalline excipients, and conducting academic pilot line material screening.
PACKAGING & CUSTOMIZATION: Securely shipped within drop-tested, vibration-dampened specialized transit framing. For alternative cylinder volume allocations (e.g., 1L, 5L, 10L) or specialized material customization requirements, reach out via inquiry@atomfair.com.
IMPORTANT NOTICE: Adhere strictly to the recommended 0.3–0.4 loading coefficient guidelines to ensure sufficient internal headspace for optimal mass fluidization. Completely secure the quick-clamp hermetic access seals prior to engaging the 60 rpm drive circuit. Wipe internal stainless steel faces with volatile electronics-grade solvents after processing aggressive active compounds to maintain baseline surface passivity.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

The Atomfair VM-574 V-Type Mixer contains rotating mechanical parts and electrical components that pose entanglement and shock hazards. Operation requires a stable, level installation surface and a grounded electrical supply.

  • Electrical Grounding: Connect the mixer to a properly grounded electrical outlet to mitigate shock risk.
  • Mechanical Guarding: Verify that all protective covers and guards are securely in place before starting the motor.
  • Surface Stability: Place the mixer on a non-slip, vibration-dampening surface to prevent movement during operation.
  • Load Management: Adhere to the recommended fill volume to avoid excessive strain on the drive mechanism.

The Atomfair VM-574 V-Type Mixer blends dry powders using a rotating V-shaped cylinder. This procedure outlines safe setup and operation for uniform mixing.

Required Equipment: Atomfair VM-574 V-Type Mixer

  1. Setup and Power Connection
    Place the mixer on a stable workbench and plug the power cord into a grounded electrical outlet.
  2. Adjust Mixing Speed
    Set the desired rotation speed using the adjustable speed control knob on the control panel.
  3. Set Mixing Time
    Configure the mixing duration on the digital timer by rotating the dial or pressing the buttons to enter minutes.
  4. Load Materials
    Fill the V-shaped cylinder with the materials to be blended, ensuring the volume does not exceed the optimal fill level.
  5. Start Mixing
    Activate the mixer by pressing the start button and allow it to run until the timer automatically stops the motor.

How does the adjustable mixing speed (20-60 rpm) interact with the loading coefficient (0.3-0.4) to determine the minimum mixing time required for uniform blending?

The combination of the recommended loading coefficient (0.3-0.4) and the adjustable mixing speed range (20-60 rpm) directly controls the mechanical force applied to the material during reciprocating flipping and rolling. Higher speeds increase the frequency of material turnover and can reduce the required mixing time, but the optimal balance must be determined within the 1-900 minute timer range based on the specific material properties and the absence of dead corners in the stainless steel cylinder ensures no un-mixed zones persist.

Is the Atomfair VM-574 compatible with both dry granular materials and slightly sticky powders given its stainless steel cylinder and no-dead-corner design?

Yes, the stainless steel cylinder combined with the no-dead-corner internal geometry and reciprocating flipping motion is suitable for dry granular and slightly sticky powders, as material accumulation is prevented during mixing. However, the 3 L cylinder volume imposes a batch size constraint, and highly adhesive or wet materials may still require additional cleaning between runs; the corrosion-resistant stainless steel construction supports such cleaning if needed.

What is the recommended fill volume for the VM-574 mixing cylinder to ensure optimal mixing performance?

The recommended loading coefficient is 0.3-0.4, meaning the 3 L mixing cylinder should be filled to 30-40% of its total volume, or 0.9-1.2 L. This range ensures efficient reciprocating flipping and rolling without dead zones or material accumulation, as specified in the product's technical parameters.

The Atomfair VM-574 V-Type Mixer offers a stainless steel mixing cylinder with no internal dead zones, enabling uniform blending at adjustable speeds from 20 to 60 rpm and timed cycles up to 900 minutes, though its effective batch capacity is limited to 0.9–1.2 L due to the 0.3–0.4 loading coefficient.

Positive

  • Stainless steel construction: The entire mixing cylinder is fabricated from stainless steel, providing corrosion resistance and mechanical durability for repeated use in laboratory or light production environments.
  • Dead-zone-free mixing geometry: The V-shaped cylinder design eliminates material accumulation and dead corners, resulting in rapid, uniform mixing with minimal time expenditure and high operational efficiency.

Trade-offs

  • Restricted loading coefficient: The manufacturer recommends a loading coefficient of 0.3–0.4, limiting the actual working volume to 0.9–1.2 L per batch and reducing overall throughput for larger-scale operations.
  • Narrow mixing speed range: The adjustable mixing speed of 20–60 rpm may be insufficient for materials requiring higher shear forces or more aggressive blending dynamics, potentially extending cycle times for certain powders or granules.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
