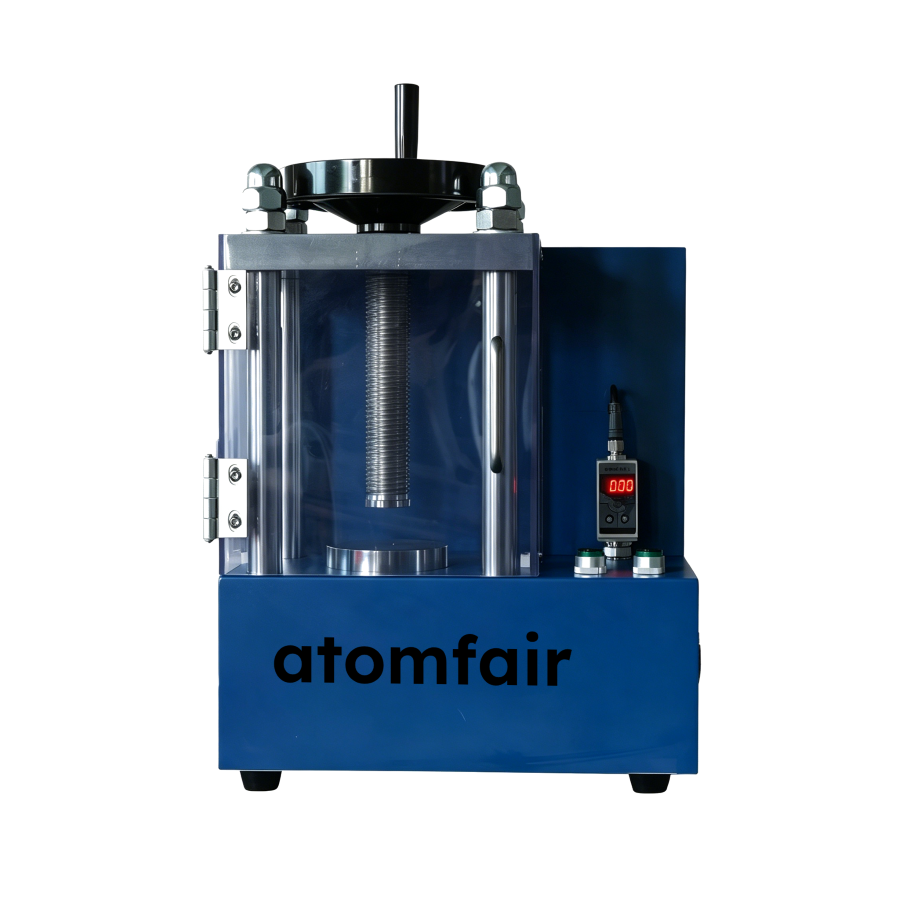

ATOMFAIR® ETP-7351 40-TON ELECTRIC TABLET PRESSRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
Operate only with a grounded 220V/50-60Hz power supply within the rated 0-40T pressure range. Avoid exceeding the rated pressure to prevent overload protection activation and equipment damage.
- Electrical Safety: The equipment requires a grounded 220V/50-60Hz power supply to mitigate electrical hazards.
- Pressure Overload Protection: Built-in overload protection automatically disengages pressure when exceeding the 40T limit to prevent equipment damage.
This press uses dual-mode electric or manual pressurization with automatic pressure holding. Follow these steps to safely form powder materials into tablets.
Required Equipment: Atomfair-ETP-7351 Electric Tablet Press
- Set Pressure
Set the desired pressure value on the digital pressure controller using the keypad. - Select Mode
Select either electric or manual pressurization mode using the mode selector switch. - Activate Pressing
Activate the pressing operation by pressing the start button to begin pressure application. - Hold Pressure
Allow the automatic pressure holding function to maintain the set pressure for the required dwell time.
How does the automatic pressure holding function improve sample consistency compared to manual pressure holding for long-duration compaction experiments?
The automatic pressure holding function maintains set pressure with stability better than 10Pa over 10 minutes, ensuring uniform sample formation and consistent density distribution. Manual pressure compensation relies on operator intervention, introducing variability in duration and precision. This digital closed-loop control is critical for experiments requiring repeatable compaction profiles, such as electrode pellet preparation for battery testing.
What die or mold configurations can be used with the Atomfair-ETP-7351 given its worktable diameter and column spacing?
The worktable diameter of Φ140mm and column spacing of 92mm × 160mm restrict the maximum die outer diameter to approximately 140mm, with die height limited by the 40mm piston stroke. Dies must fit within the four-column frame without interfering with the support posts, so square or rectangular molds with diagonal under 164mm are compatible. Standard round pellet dies up to 40mm diameter are typical for laboratory use.
What electrical and physical infrastructure is required to safely install and operate the Atomfair-ETP-7351 electric tablet press?
The press requires a 220V, 50/60Hz supply with at least 500W capacity, and a dedicated grounded outlet is recommended due to the electric pressurization motor. Its 72kg weight requires a stable benchtop or floor stand rated for >100kg, with footprint 275mm × 430mm. The built-in overload protection automatically cuts power if pressure exceeds 40T (300MPa), but operators must ensure the hydraulic oil level is correct and the chrome-plated piston is clean before each use.
The Atomfair-ETP-7351 40T Electric Tablet Press combines dual-mode pressurization with high-precision digital pressure control and automatic pressure holding, offering reliable powder compaction for laboratory and small-batch production, though its electrical requirements and 72kg weight impose specific infrastructure and handling considerations.
Positive
- Dual-mode pressurization: Supports both electric and manual pressurization, allowing flexible adaptation to different experimental scenarios and operation requirements with efficient mode switching.
- Automatic pressure holding with digital display: After reaching set pressure, the system automatically maintains it for uniform sample forming, improving experimental repeatability while the high-precision digital display provides intuitive, low-error readings.
Trade-offs
- Specific electrical infrastructure requirement: Requires 220V, 50Hz/60Hz power supply with 500W capacity, which may not be available in all laboratory settings without appropriate adapters or step-up transformers.
- Significant mass for benchtop use: At 72kg total weight, the press demands a robust work surface or floor mounting and may require mechanical assistance for relocation.
