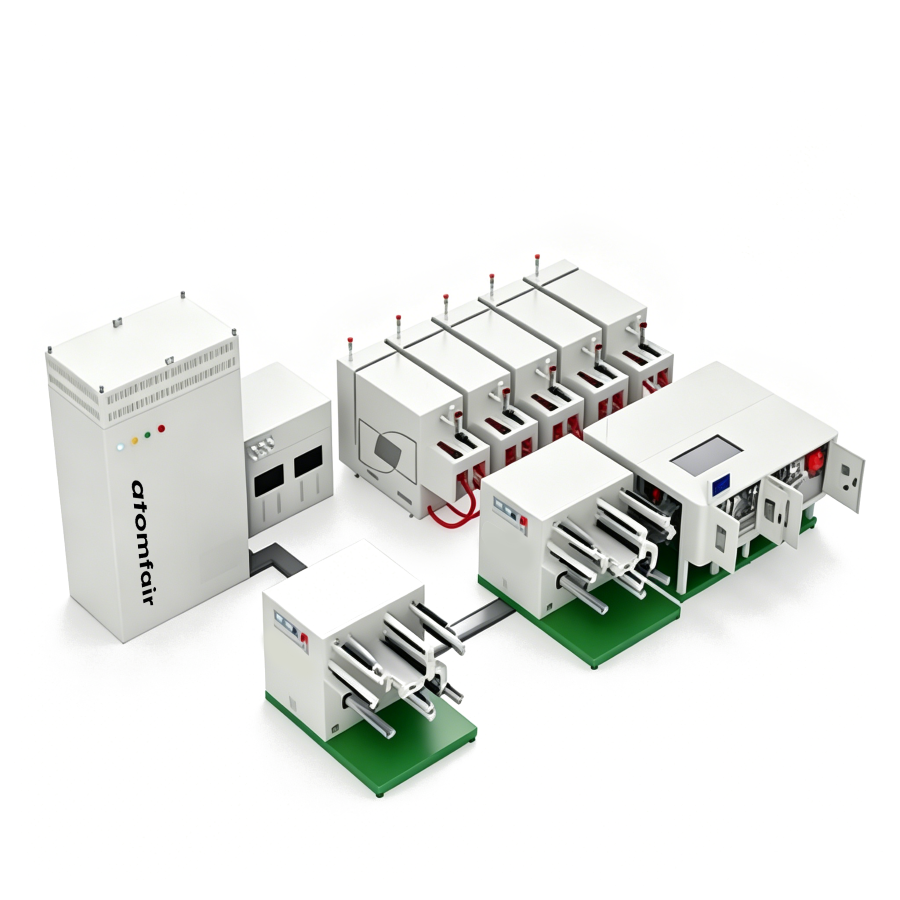

ATOMFAIR® AF-5RFFE MULTI-ROLL COMPOSITE FILM ROLL PRESSRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
The AF-5RFFE system operates with roll surface temperatures up to 150°C and rolling pressures up to 15 tonnes, posing burn and crush hazards. Electrical components require proper grounding and surge protection to prevent shock and equipment damage.
- Thermal Constraint: Roll surface temperatures must be maintained within the specified range to prevent material degradation and operator burn injury.
- Pressure Constraint: Operating pressure must not exceed 15 tonnes to avoid mechanical overload and structural failure.
- Electrical Safety: The system requires a stable electrical supply with proper grounding and overload protection to mitigate electric shock risk.
- Material Compatibility: Only processed materials that are thermally stable up to 150°C should be used to avoid toxic fume release or fire.
- Operational Limit: Maximum operating speed of 20 m/min must not be exceeded to maintain film thickness control and prevent equipment damage.
The following steps outline the safe initialization and operation of the AF-5RFFE for film calendering. Always follow lockout/tagout procedures before maintenance.
Required Equipment: Atomfair AF-5RFFE 5-Roll Film Forming Equipment
- Pre-operation Inspection
Inspect all roll surfaces for cleanliness, damage, and proper alignment before starting the system. - Parameter Configuration
Set the desired rolling pressure, temperature, and speed on the PLC touch screen control panel. - Preheat Rolls
Allow the rolls to reach the set temperature and stabilize for at least 15 minutes before material feeding. - Material Feeding
Feed the material into the nip between the first pair of rolls at the specified entry angle. - Process Monitoring
Monitor the film thickness and quality continuously using the integrated sensor feedback and adjust parameters as needed. - Shutdown Procedure
Reduce roll temperature gradually to room temperature and then clean the roll surfaces with a non-abrasive cloth after production. - Post-operation Safety
Disconnect the main power supply and apply lockout/tagout before any maintenance or cleaning operations.
How does the multi-roll calendering system improve film thickness consistency compared to traditional two-roll configurations?
The 5-roll continuous calendering system ensures uniform pressure distribution across the film width, delivering consistent film thickness within ±2 μm precision. This multi-roll structure minimizes localized pressure variations that can occur in two-roll systems, enabling defect-free films with repeatable quality for high-performance battery materials.
Can the AF-5RFFE handle dry-process electrode films with high solid content without roll sticking or material degradation?
Yes, the AF-5RFFE is designed for wide material compatibility including various battery materials, polymer films, and composite materials. With adjustable rolling pressure from 1 to 15 T and precise roll temperature control from room temperature to 150°C (±2°C), it can accommodate different material rheologies and process conditions to prevent sticking or degradation.
What safety and operational considerations are required for the roll heating system at temperatures up to 150°C?
The roll surface heating system operates from room temperature to 150°C with precision of ±2°C, requiring proper thermal management and operator training. Users should ensure adequate ventilation near the heated rolls, use heat-resistant gloves when handling materials, and follow standard safety protocols for hot surfaces to prevent burns or material ignition.
This multi-roll calendering system delivers exceptional thickness uniformity and precision for R&D and pilot production of battery films, but its 250 mm width and 20 m/min speed limit its suitability for high-throughput industrial applications.
Positive
- Multi-Roll Continuous Calendering: The 5-roll structure ensures uniform pressure distribution and consistent film thickness, delivering high-quality, defect-free films suitable for advanced battery and functional material applications.
- Precision Temperature and Thickness Control: Accurate roll heating (±2°C) and thickness control (±2 μm) guarantee repeatable film performance and consistent batch quality, enabling reliable R&D and production scale-up.
Trade-offs
- Limited Effective Rolling Width: With a maximum rolling width of 250 mm, this system may not accommodate wider film formats required for certain industrial-scale production lines, potentially necessitating additional processing steps.
- Maximum Operating Speed Constraint: The top operating speed of 20 m/min may limit throughput for high-volume manufacturing, making it more suitable for pilot-scale or precision-focused production rather than mass production.
