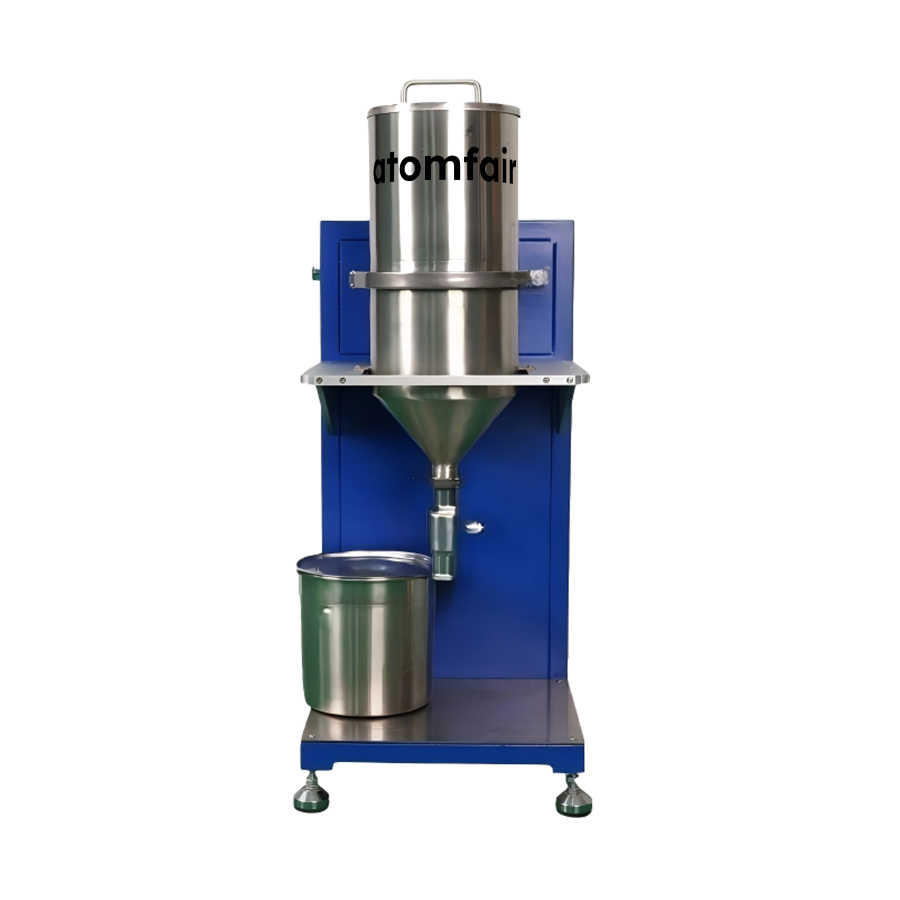

ATOMFAIR® laboratory slurry filter machine featuring a blue frame with a top stainless steel hopper tank and a lower metal bucket.

SUS304 Nanoscale Slurry Filter 5L Vacuum 65KPa ATOMFAIR®

$4,328.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

SUS304 nanoscale slurry filter, 65KPa vacuum, 5L capacity, permanent magnet iron removal. Standard 100 mesh, up to 1000 mesh. Order now.

SKU: AFMSZONC741
Category:
Brands:

Description

ATOMFAIR® NANOSCALE SLURRY FILTER / MODEL ATOMFAIR-NANOFILTER-9275

RESEARCH GRADE MATERIAL

Product Overview
The ATOMFAIR® premium **slurry filter** (Model No.: Atomfair-NanoFilter-9275) is an advanced, heavy-duty instrumentation ecosystem custom-engineered exclusively for high-efficiency **nanoscale slurry filtration** scenarios in laboratory environments. Boasting an elegant and sleek modular design, this high-capacity filtration device efficiently meets the rigorous requirements of variable nanoscale materials, providing stable and reliable support for experimental operations. Pre-integrated with a **permanent magnet iron removal** device to efficiently adsorb iron powder particles from the source, this vacuum-driven device ensures uncompromised chemical purity and fluid consistency across demanding battery prototyping, rheological sampling, and quality validation workflows.

Technical Specifications (International Standard)
PARAMETER NAME SPECIFIC SPECIFICATION
Overall Dimensions of Filter 500 × 500 × 510 mm (L × W × H)
Equipment Structural Weight 30 kg for solid benchtop stabilization
Power Adapter Interface AC 220V ± 10%, 50Hz grid compliance
Absolute Vacuum Degree 65 kPa stable negative pressure pull-down capacity
Air Pump Flow Rate 5 L/min steady-state volumetric displacement
Standard Equipped Filter Screen 100 mesh baseline configuration (Customizable on demand)
Optional Filter Screens Ultra-fine structural options scalable down to ≤ 1000 mesh parameters
Standard Fluid Capacity Volume 5 L large-volume containment vessel (Fully customizable on demand)
Core Material Infrastructure Full SUS304 Stainless Steel (High electrochemical resistance)
Alternative Options Explore our related catalog or custom dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.


Key Features & Advantages
  • Full SUS304 Stainless Steel: Constructed entirely from elite SUS304 steel, it delivers excellent corrosion resistance, easy cleaning, and complies with internationally accepted laboratory hygiene and durability standards.
  • High-Efficiency Iron Removal: Integrated with a permanent magnet magnetic filter device that efficiently adsorbs iron powder particles suspended in the slurry, ensuring ultimate purity from the source.
  • Low-Impedance Extended Lifespan: Equipped with a matrix filter screen of large active surface area, effectively reducing equipment pressure loss during continuous processing runs.
  • Vacuum-Driven Application Versatility: Powered by an intensive negative pressure circuit that supports interchangeable screens (ranging from 100 mesh down to ≤1000 mesh) to adapt fluid parameters dynamically.
  • Minimalist Aesthetic Form Factor: Balances clean geometric practicalities with an exquisite forming technology, allowing researchers to master the 5L device efficiently without complex training procedures.

APPLICATION SCOPE: Optimized for large-batch laboratory processing of lithium-ion and sodium-ion electrode slurries, magnetic element scavenging, active chemical suspension refining, and advanced composite polymer fluid filtering within academic cleanrooms and pilot assembly lines.
PACKAGING & TAILORED OPTIONS: Safely enclosed inside heavy-duty, impact-isolated crate structures. For customized fluid volumes, tailored mounting configurations, or specialized mesh selections, contact our engineering group at inquiry@atomfair.com.
IMPORTANT NOTICE: Routinely clean out accumulated iron particle scrap from the active permanent magnetic removal assembly after each processing loop to preserve supreme adsorption yields. Flush wetted SUS304 fluid channels with analytical-grade solvents immediately following use to prevent active aggregate baking on internal walls. Regularly evaluate seals on the 5 L/min air pump module to retain absolute 65 kPa airtight negative pressure bounds.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This device is electrically powered with a vacuum system rated at 65KPa and operates on AC 220V. Proper handling ensures safe filtration of nanoscale slurries without compromising equipment integrity.

  • Electrical Safety: Operate the filter only from a grounded AC 220V±10% 50Hz outlet to prevent electrical shock or damage.
  • Vacuum Integrity: Inspect all seals and connections before each run to maintain the rated 65KPa absolute vacuum and avoid implosion.
  • Filter Screen Care: Handle fine mesh screens (≤1000 mesh) with care to avoid tearing, and clean gently after each use.
  • Magnetic Field Precautions: Keep the integrated permanent magnet away from sensitive electronic devices and medical implants to prevent interference.
  • Cleaning and Storage: Clean stainless steel surfaces with a mild detergent and store in a dry, non-corrosive environment to prevent oxidation.

Follow these steps to safely set up and operate the vacuum-driven filtration device for nanoscale slurry separation. Proper preparation and monitoring prevent hazards and ensure efficient filtration.

Required Equipment: Atomfair Nanoscale Slurry Filter unit, Vacuum pump assembly, Filter screen set (customizable mesh), Power cord and grounding adapter

  1. Inspect Equipment
    Inspect the filter body, vacuum seals, and power cord for any visible damage before connecting.
  2. Install Filter Screen
    Select and install the appropriate mesh filter screen (100 to 1000 mesh) ensuring it is seated properly in the filtration chamber.
  3. Connect Vacuum System
    Connect the vacuum pump inlet to the filter outlet using appropriate tubing and verify all connections are airtight.
  4. Power On and Set Vacuum
    Plug the device into a grounded AC 220V outlet, power on the vacuum pump, and adjust the vacuum to the rated 65KPa.
  5. Introduce Slurry
    Slowly pour the nanoscale slurry into the filtration chamber while maintaining vacuum to avoid splashing or overflow.
  6. Monitor and Complete Filtration
    Monitor the filtration process until the desired volume has passed through, then power off the vacuum pump and disconnect power.

How does the vacuum drive performance change when using the optional 1000 mesh filter compared to the standard 100 mesh?

The large filtration area effectively reduces pressure loss, so the 65KPa absolute vacuum and 5L/min air pump provide sufficient driving force even with the finest 1000 mesh screen, ensuring stable filtration of nanoscale slurries without significant performance degradation.

Can the Atomfair filter be used for slurries that contain both nanoscale particles and iron contaminants?

Yes, the integrated permanent magnet iron removal device efficiently adsorbs iron powder particles, while the filter screen (100 mesh standard, up to 1000 mesh optional) retains nanoscale particles, making it ideal for simultaneous removal of both contaminants.

What are the electrical and space requirements for installing this filtration device?

The device requires an AC 220V±10% 50HZ power supply, has overall dimensions of 500×500×510mm and weighs 30Kg, fitting on a standard lab bench with an appropriate electrical outlet.

This nanoscale slurry filter combines SUS304 stainless steel durability with an integrated permanent magnet iron removal system, but its moderate 65KPa vacuum drive and 30kg weight impose operational constraints for high-viscosity applications and lab mobility.

Positive

  • SUS304 Stainless Steel Construction: The full SUS304 stainless steel provides excellent corrosion resistance, easy cleaning, and durable long-term use in laboratory filtration applications.
  • Integrated Permanent Magnet Iron Removal: The built-in permanent magnet efficiently adsorbs iron powder particles from the slurry, ensuring higher purity of the filtered product from the source.

Trade-offs

  • Moderate 65KPa Vacuum Limit: With an absolute vacuum of only 65KPa and 5L/min flow rate, the vacuum drive may be insufficient for high-viscosity or dense nanoscale slurries that require stronger pressure differentials for efficient filtration.
  • 30kg Equipment Weight: The device weighs 30kg, requiring a sturdy lab bench or cart for placement and careful handling during relocation or maintenance.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
