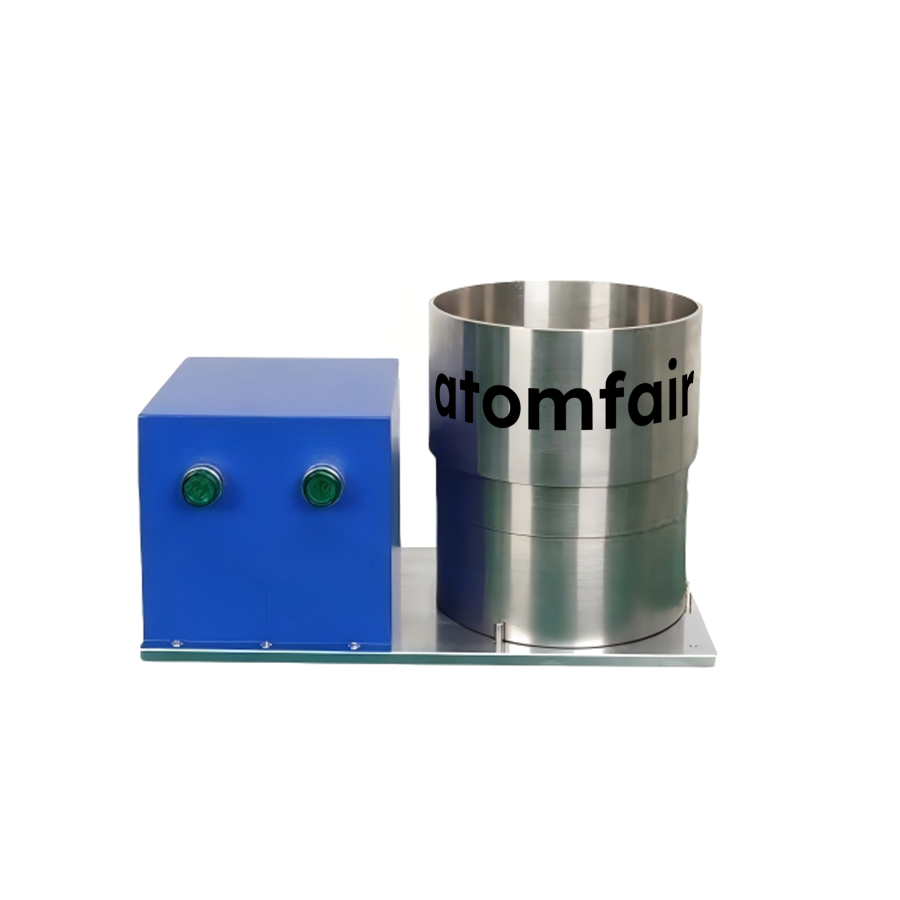

ATOMFAIR® compact laboratory slurry filter with a blue control box featuring green buttons next to a cylindrical steel tank.

SUS304 Nano Slurry Filter 124µm 1L Customizable ATOMFAIR®

$2,300.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

SUS304 stainless steel grade lab slurry filter with 124µm precision and 1L capacity, featuring 80-150 mesh screens for nano-scale filtration. Order now.

SKU: AFMSRNAR258
Category:
Brands:

Description

ATOMFAIR® LAB NANO-SCALE SLURRY FILTER / MODEL ATOMFAIR-NSF-7392

RESEARCH GRADE MATERIAL

Product Overview
The ATOMFAIR® premium lab nano-scale **slurry filter** (Model No.: Atomfair-NSF-7392) is a precision-engineered instrumentation system custom-developed for high-fidelity **lab nano-scale slurry filtration** matrices. This specialized hardware features an elegant modular configuration optimized for battery research scenarios requiring high-precision fluid clarification. Equipped with interchangeable **particle filter screens**, it purges micro-agglomerates from active chemical suspensions to ensure unmatched coating uniformity. Its advanced fluid routing system maintains uncompromised flow kinetics, protecting experimental baselines across demanding secondary battery prototyping paradigms.

Technical Parameters
PARAMETER CATEGORY SPECIFIC SPECIFICATIONS
Filter Core Dimensions 145 mm × 150 mm × 200 mm (L × W × H)
Air Generator Dimensions 140 mm × 70 mm × 150 mm (L × W × H)
Power Adapter Interface AC 220V ± 10%, 50Hz universal utility alignment
Absolute Vacuum Degree 65 kPa stable negative pull-down capacity
Integrated Air Pump Flow Rate 3 L/min constant volumetric throughput
Equipped Filter Screens Standard configuration includes 80 mesh, 100 mesh, and 150 mesh variants
Optional Filter Screens Ultra-fine options scalable down below 1000 mesh specifications
Standard Fluid Capacity 1 L volumetric containment basin (Custom capacities fully available upon request)
Filtration Resolution Boundary High filtration precision up to 124 microns (μm)
Alternative Options Explore our related catalog or custom dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.


Key Functional Features
  • Micron-Level Particle Capture: Delivers exceptional filtration precision up to 124 microns, utilizing two distinct screen classes tailored explicitly for positive and negative electrode conditioning.
  • Full SUS304 Stainless Build: Forged from premium marine-grade SUS304 steel to secure outstanding anti-corrosion properties and ensure long-term structural purity across complex fluid trials.
  • Low-Impedance Extended Lifespan: Engineered with an expanded geometric filter screen surface area to minimize overall system back-pressure loss and prevent premature matrix mesh fatigue.
  • Compact Benchtop Footprint: Designed with an ultra-compact dual-module layout that seamlessly saves specialized lab space while facilitating swift drawer or glovebox storage transitions.

APPLICATION SCOPE: Highly optimized for conditioning micro/nano battery slurry compounds, processing conductive carbon black fluids, refining active electrode suspensions, filtering diagnostic fluids, and ensuring batch uniformity inside cleanrooms and academic spaces.
PACKAGING & STORAGE: Safely packed in standard impact-dampening validation configurations. For custom capacity requirements (e.g., 500mL, 2L) or custom mesh profiles under 1000 mesh, contact our technical team at inquiry@atomfair.com.
IMPORTANT NOTICE: Thoroughly verify that the internal mesh screen matrix is seated flat before initializing the 65 kPa absolute vacuum pull-down sequence. Wash out fluid remnants with electronics-grade solvents immediately following each cycle to prevent aggregate cake layer baking on the SUS304 mesh walls. Always check connection seals on the 3 L/min air generator module regularly to retain absolute airtight suction parameters.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Store the filtration device in a dry, temperature-controlled environment to prevent corrosion of stainless steel components. Operate only with the supplied AC power adapter to avoid electrical hazards and ensure vacuum integrity.

  • Electrical Safety Constraint: Connect the power adapter only to an AC outlet matching the specified voltage to prevent electrical damage.
  • Corrosion Prevention Constraint: Regularly clean the stainless steel body and filter chamber to maintain corrosion resistance and hygiene.
  • Vacuum Operation Constraint: Ensure the air pump and connections are sealed properly before operation to achieve the required vacuum level.

This device filters nano-scale slurries using vacuum generated by an air pump. Proper selection and installation of filter screens ensure high-precision filtration for battery electrode materials.

Required Equipment: Slurry filter unit, Air generator, Power adapter, Filter screens (80, 100, or 150 mesh)

  1. Select filter screen mesh
    Choose the appropriate mesh size (80, 100, or 150) based on the particle size of the slurry to be filtered.
  2. Install the filter screen
    Insert the selected filter screen into the filter chamber and secure it firmly to prevent bypass.
  3. Connect air generator and power
    Attach the air generator to the filter unit and plug the power adapter into a compatible AC power source.
  4. Start the vacuum filtration
    Activate the air pump to create vacuum and begin the filtration process, monitoring the flow until completion.
  5. Clean the device after use
    Disassemble the filter unit and thoroughly clean all components to remove residual slurry and prevent clogging.

How do the included 80, 100, and 150 mesh screens affect filtration precision and throughput when filtering battery electrode slurries?

The 150 mesh screen provides the finest filtration, closely matching the device's stated 124 micron precision for positive and negative electrode slurries. The 80 and 100 mesh screens offer higher throughput for coarser filtration steps, while the large filtration area ensures low pressure loss and extended service life regardless of screen chosen.

Can the Atomfair-NSF-7392 filter be used with non‑aqueous solvents or corrosive electrolytes common in battery slurry preparation?

The full SUS304 stainless steel construction provides excellent corrosion resistance for typical battery slurry systems using PVDF, SBR, or organic carbonates. However, SUS304 may not withstand aggressive chloride‑rich or highly acidic media; for such applications, confirm compatibility with Atomfair or consider alternative alloys.

What vacuum and electrical infrastructure are needed to operate the Atomfair-NSF-7392 lab slurry filter?

The filter requires a standard AC 220V±10%, 50 Hz power supply for its integrated air generator, which delivers an absolute vacuum of 65 KPa at a flow rate of 3 L/min. The unit measures 145 mm×150 mm×200 mm and should be placed on a clean, dry benchtop; after use, the SUS304 body can be easily cleaned but must be stored in a dry environment to protect any non‑stainless components.

The Atomfair Lab Nano-Scale Slurry Filter offers 124-micron filtration precision with interchangeable 80/100/150 mesh screens in a compact SUS304 stainless steel body. Its 1L customizable capacity and integrated vacuum system (65KPa, 3L/min) suit benchtop battery electrode slurry filtration, though the micron-level precision restricts true nano-scale applications and the 220V/50Hz power requirement limits global deployment.

Positive

  • High filtration precision with dual screen types: Achieves up to 124-micron precision and comes with two types of filter screens specifically for positive and negative electrode filtration, enabling targeted slurry purification in battery research.
  • Corrosion-resistant SUS304 stainless steel construction: The full SUS304 design provides excellent corrosion resistance, is easy to clean and maintain, and ensures the cleanliness required for sensitive lab slurry filtration.

Trade-offs

  • Micron-scale precision limits nano-scale application: Despite the product's naming, the specified filtration precision of 124 microns—and the included 80, 100, and 150 mesh screens (177 to 100 microns)—mean it cannot retain true nano-scale (<100 nm) particles, making it unsuitable for genuine nano-slurry filtration without finer optional screens.
  • Region-specific power and vacuum infrastructure needed: The device requires AC 220V±10%, 50Hz mains power and its integrated vacuum pump operates at 65KPa with 3L/min flow, limiting plug-and-play use in regions with different voltages/frequencies and necessitating a dedicated vacuum or compressed air setup.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
