Atomfair-Mini Semi-Automatic Z-Type Stacking Machine with Wide Compatibility for Lithium Battery R&D

Atomfair-Mini Semi-Automatic Z-Type Stacking Machine with Wide Compatibility for Lithium Battery R&D

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Atomfair-DSZS-592 is a compact desktop Z-type stacking machine for battery cells. It features easy operation, wide electrode compatibility, foot pedal control, and a digital counter. Lightweight and space-saving, ideal for lab and small-batch production.

SKU: AFMSXKIG255
Category:
Tags:
Brands:

Description

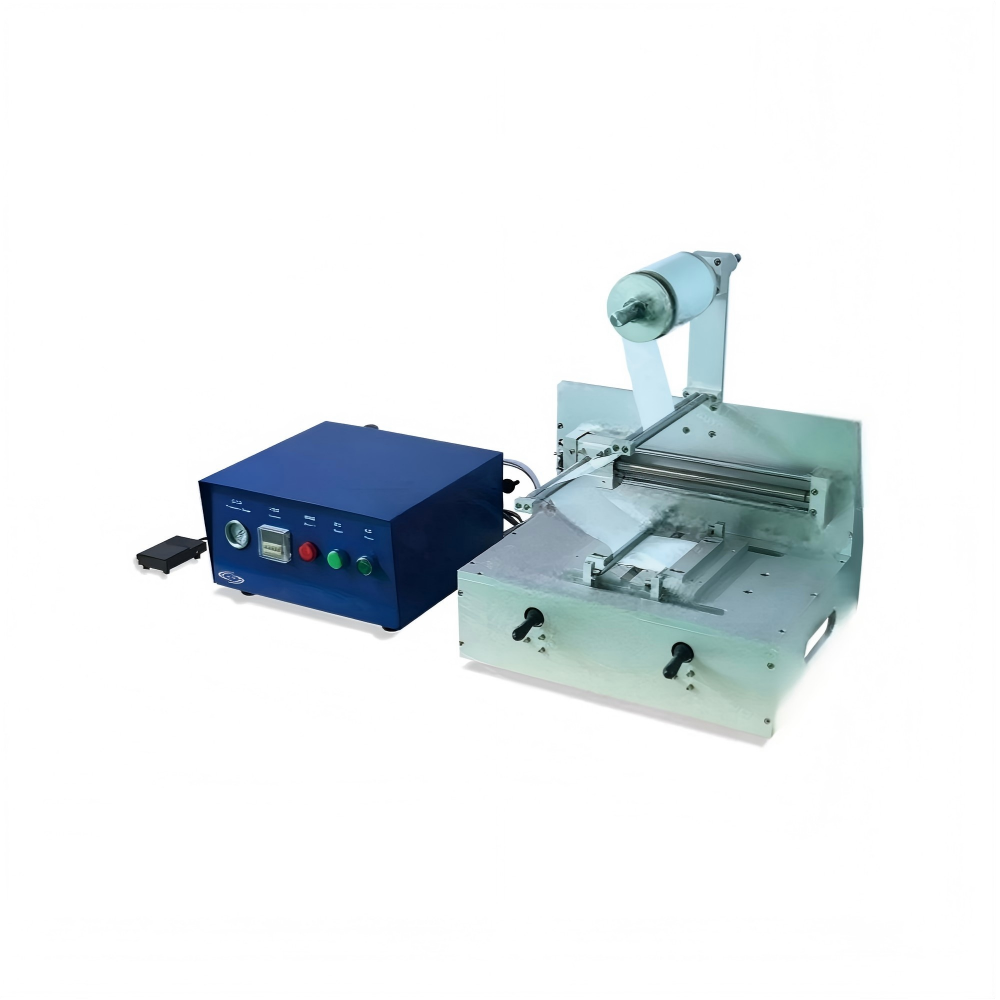

Atomfair Desktop Semi-Automatic Z-type Stacking Machine

Product Information

Model: Atomfair-DSZS-592

Release Date: March 12, 2022

Version: V2.0

Dimensions: L650mm × W400mm × H700mm

Weight: 30KG

Control Box: L200mm × W300mm × H380mm

Application

This machine is designed for battery cell lamination processes, performing Z-type stacking of positive/negative electrodes and separator.

Product Description

This machine is mainly used for battery cell lamination, stacking positive and negative electrodes with separator in a Z‑shape configuration.

Key Features

  • Desktop design, can be placed on a standard workbench
  • Simple calibration, operation and maintenance
  • Wide compatibility with various cell sizes
  • High efficiency with digital display counter
  • Foot pedal control for cylinder actuation

Technical Parameters

  • Max. separator roll: 3‑inch core, diameter φ200mm
  • Electrode size: Length 20–200mm, Width 20–200mm, thickness ≤18mm
  • Swing stroke: 350mm
  • Power supply: AC220V / 50Hz
  • Air pressure: 0.5MPa

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
