Description

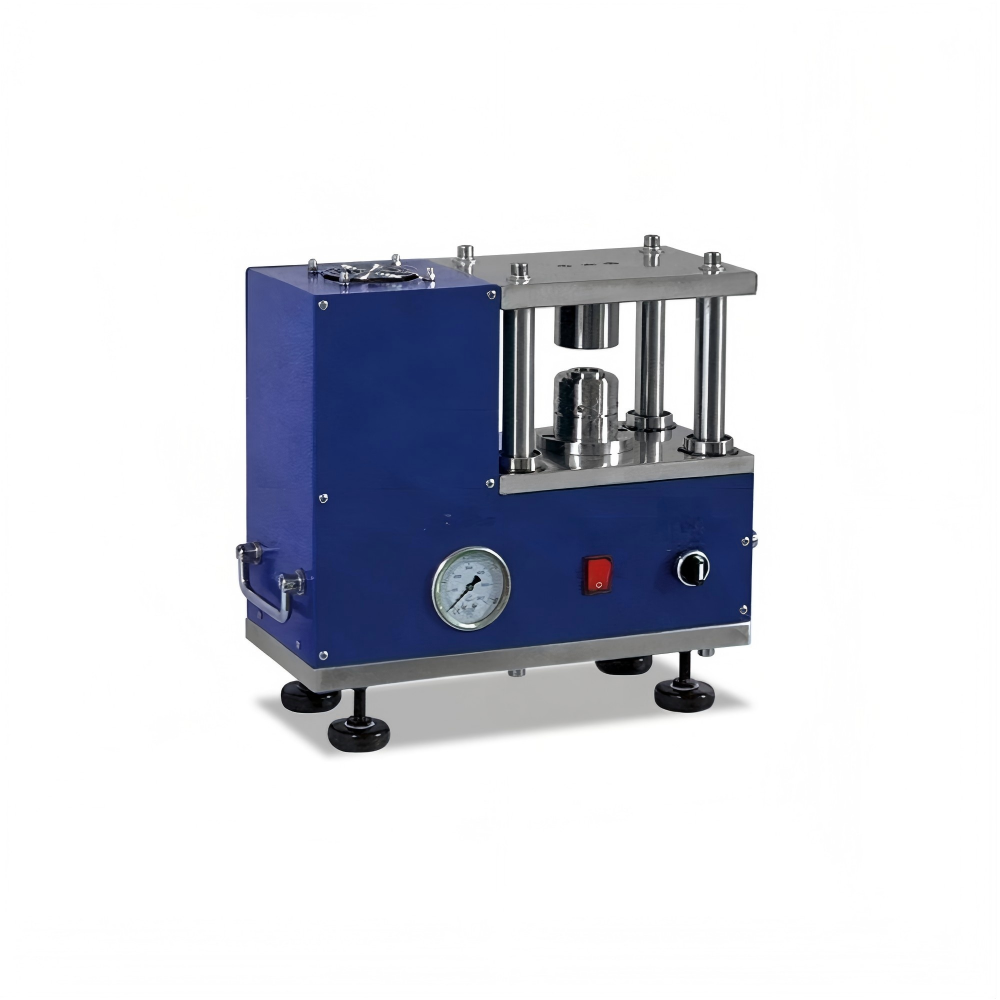

Atomfair Electric Button Cell Crimping Machine
Model: Atomfair‑EBC412
Launch Date: 2024‑01‑27
Version: V2.0
Dimensions: 385×160×325 mm
Weight: 33 kg
Application
For sample fabrication in laboratory battery material R&D, crimping of battery & capacitor samples, and small-batch trial production in factories.
Product Description
This machine is mainly used for sample preparation in laboratory battery material research, crimping of batteries & capacitors, and small-batch trial production. It adopts electric drive for effortless operation.
Key Features
- Compact size, passable through Φ360 glove box antechamber (without obstacles like slide plates)
- Electric drive, labor-saving and easy for automation
- Stable operation and consistent crimping
- Precision mold design for accurate & reliable crimping
- Robust steel structure for stable & safe use
- Built-in pressure gauge for monitoring & precise pressure adjustment (preset at factory)
- Compatible with CR20 series; CR2450/CR1620 usable by replacing partial mold parts
- Elegant appearance and easy maintenance
Technical Parameters
| Item | Specification |
|---|---|
| Structural Material | Aluminum alloy & high-strength chrome steel, eco-plated & coated, rustproof |
| Power Supply | AC220V/50Hz |
| Dimensions | 385×160×325 mm |
| Weight | 33 kg |
| Mold Material | Japanese imported mold steel |
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
