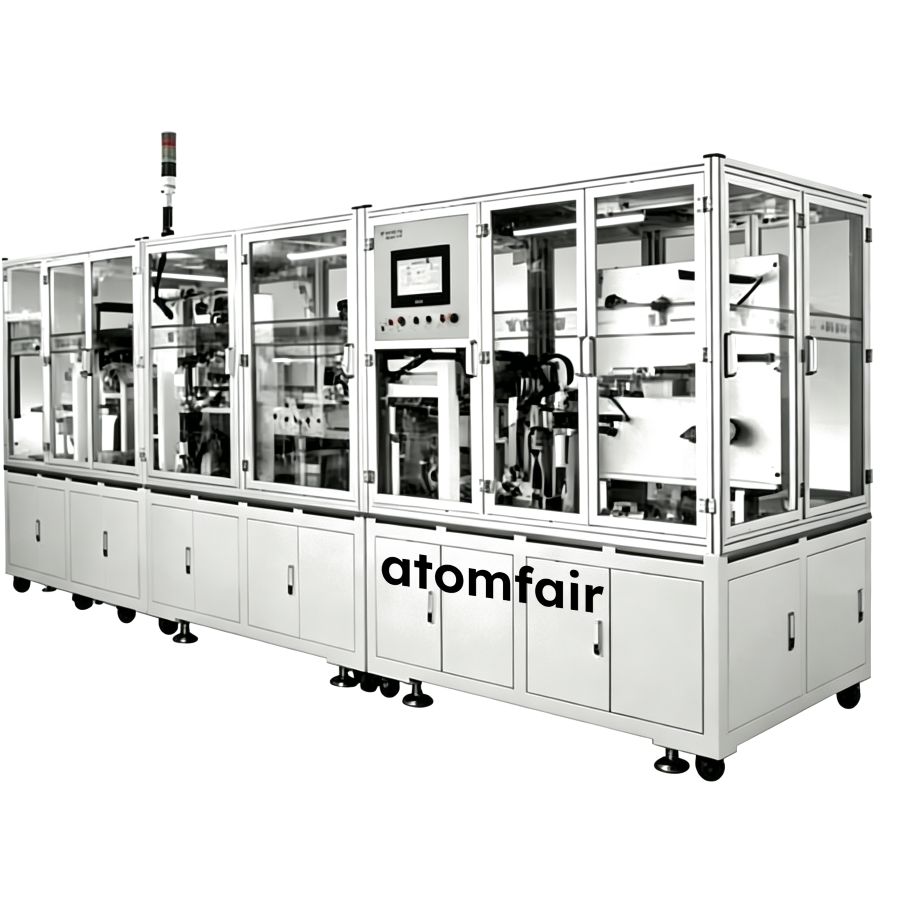

ATOMFAIR® lithium metal anode slitting machine featuring an extended processing line with glass window doors and a central control screen.

Lithium Metal Anode Slitter 40-120μm AF-HE-LMASM ATOMFAIR®

$10,000.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research-grade lithium metal anode slitter for all-solid-state batteries. Handles 40-120μm Li foil and 6-20μm Cu tabs with CCD defect detection. In stock.

SKU: AFMSNCXH863
Category: ,
Tags: ,
Brands:

Description

ATOMFAIR® AF-HE-LMASM ANODE SLITTING MACHINE

RESEARCH GRADE MATERIAL

Product Overview
The AF-HE-LMASM is a high-efficiency industrial slitting machine specifically engineered for lithium metal anodes within all-solid-state battery systems. Featuring precise multi-layer fabrication controls, this modular instrument delivers excellent cell-to-cell consistency, baseline testing control, and complete variable elimination across sensitive precursor thin-films. By optimizing multi-roll calendar machine price loops for high-speed electrode formatting of varying roll specifications, it establishes an elite validation platform. It integrates replaceable knife molds and a state-of-the-art CCD defect recognition matrix to maximize material utilization metrics while preventing structural phase contamination.

Technical Specifications
PARAMETER DETAILS
1. Core Device Identity & Defect Inspection
Product Code AF-HE-LMASM
CCD Defects Recognition Missing corners, tab position, right angles, and dimensional metrics
2. Lithium Foil Jumbo Roll Specifications
Foil Thickness 40–120 μm
Foil Width / Outer Diameter Width: 50–150 mm / Outer Diameter: 250 mm
3. Copper Tab Jumbo Roll Specifications
Tab Thickness 6–20 μm
Tab Width / Outer Diameter Width: 10–100 mm / Outer Diameter: 180 mm
Manufacturing Rules Processed under strict [ISO 9001 standard compliance] conditions
Alternative Options Explore our related catalog or custom dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.

Key Features & Advantages
  • Homogeneous Material Purity: Features an uncompromised structural configuration within matrix crystals, incorporating modular knife configurations to adapt to multi-size anode dimensions seamlessly.
  • Enhanced Operational Efficiency: Specifically engineered to demonstrate superior electrochemical performance, significantly boosting fabrication speed via a highly aligned, closely arranged workstation array.
  • Optimized Sintering/Microstructure: Advanced synthesis allows for lower required operating temperatures and ideal grain boundary integration, supported by online automated dimension and real-time defect sorting.

APPLICATION SCOPE: High-precision fabrication, dimension inspection, and rapid modular cutting for solid-state lithium metal anode sheets and copper tabs.
PACKAGING: Heavy-duty high-protection wooden packing integration engineered specifically for sensitive mechanical logistics.
IMPORTANT NOTICE: This product is highly sensitive to ambient exposure. Keep containers tightly sealed or handle exclusively within an anhydrous inert gas environment to prevent phase contamination or degradation before thermal validation.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

The machine requires installation of appropriate knife molds for different anode sizes to maintain cutting precision. The integrated CCD defect detection system must be configured to monitor specific defects like missing corners and tab position.

  • Defect Detection Configuration: Configure the CCD system to recognize missing corners, tab position, right angles, and dimensions for real-time quality control.

This machine slits lithium metal anode sheets from jumbo rolls using replaceable knife molds. It employs high-precision positioning and online defect detection for efficient fabrication.

Required Equipment: Replaceable knife mold set

  1. Install Knife Mold
    Install the appropriate knife mold into the machine for the desired anode sheet size.
  2. Load Lithium Foil Roll
    Load the lithium foil jumbo roll onto the unwind shaft, ensuring proper alignment.
  3. Initiate Slitting Process
    Set the machine parameters and start the slitting process with high-precision positioning.
  4. Monitor Defect Detection
    Monitor the CCD defect detection system in real-time to ensure product quality and dimensional accuracy.

How does the AF-HE-LMASM balance high electrode sheet utilization rate with fast fabrication speed?

The machine achieves both simultaneously through integrated high-precision positioning and inspection modules that reduce material waste and ensure accurate alignment, while the modular, closely arranged workstations enable high-speed electrode sheet preparation. This design eliminates the typical trade-off between utilization and throughput.

What are the allowable dimensions for lithium foil and copper tab jumbo rolls in the AF-HE-LMASM slitting machine?

Lithium foil jumbo rolls must have thickness 40–120 μm, width 50–150 mm, and outer diameter 250 mm. Copper tab jumbo rolls require thickness 6–20 μm, width 10–100 mm, and outer diameter 180 mm. These specifications are directly from the product description.

What quality inspection capabilities does the AF-HE-LMASM offer for real-time production monitoring?

The machine is compatible with CCD defect recognition systems that can detect missing corners, tab position, right angles, and dimensions online. It supports automatic sorting and real-time dimension inspection during production to guarantee product quality without interrupting the slitting process.

This slitting machine is designed for lithium metal anodes in all-solid-state batteries, featuring replaceable knife molds for size flexibility, high-precision positioning for material utilization, and online defect detection via CCD. Operation is limited to specific jumbo roll dimensions for lithium foil and copper tabs.

Positive

  • Multi-size compatibility: Replaceable knife molds allow flexible fabrication of electrode sheets in various sizes, adapting to diverse anode specifications without requiring separate machines.
  • High material utilization rate: High-precision positioning and inspection modules achieve accurate material positioning, effectively reducing waste and improving electrode sheet utilization.

Trade-offs

  • Limited lithium foil dimensions: Machine only accepts lithium foil jumbo rolls with thickness 40–120 μm, width 50–150 mm, and outer diameter 250 mm, restricting feedstock flexibility.
  • Restricted copper tab dimensions: Copper tab jumbo rolls must have thickness 6–20 μm, width 10–100 mm, and outer diameter 180 mm, imposing additional size constraints on the process.
