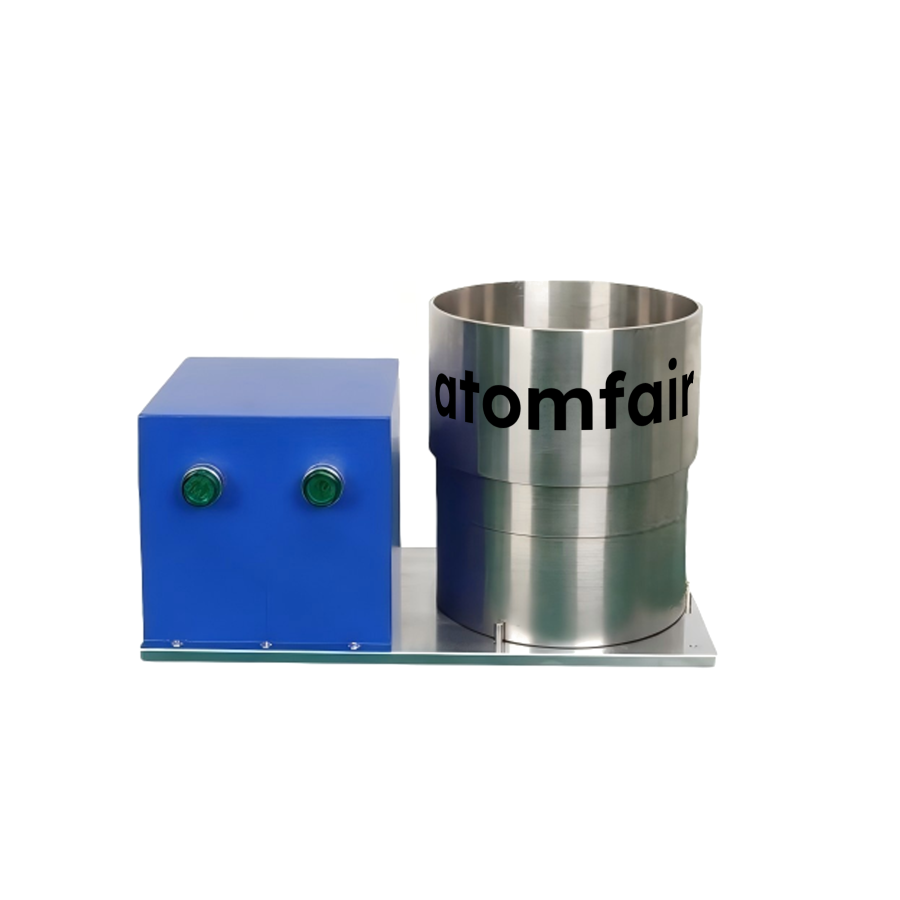

ATOMFAIR® compact laboratory slurry filter with a blue control box featuring green buttons next to a cylindrical steel tank.

Lab Nano-Scale Slurry Filter, 124μm, SUS304, 5L ATOMFAIR®

$2,100.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

SUS304 stainless steel lab nano-scale slurry filter, 124μm precision, 5L customizable capacity. Ideal for high-precision battery slurry filtration. Order now.

SKU: AFMSPHNO101
Category:
Brands:

Description

ATOMFAIR® LAB NANO-SCALE SLURRY FILTER / MODEL ATOMFAIR-NSF-7392

RESEARCH GRADE MATERIAL

Product Overview
The ATOMFAIR® premium lab nano-scale **slurry filter** (Model No.: Atomfair-NSF-7392) is a precision-engineered instrumentation system custom-developed for high-fidelity **lab nano-scale slurry filtration** matrices. This specialized hardware features an elegant modular configuration optimized for battery research scenarios requiring high-precision fluid clarification. Equipped with interchangeable **particle filter screens**, it purges micro-agglomerates from active chemical suspensions to ensure unmatched coating uniformity. Its advanced fluid routing system maintains uncompromised flow kinetics, protecting experimental baselines across demanding secondary battery prototyping paradigms.

Technical Parameters
PARAMETER CATEGORY SPECIFIC SPECIFICATIONS
Filter Core Dimensions 145 mm × 150 mm × 200 mm (L × W × H)
Air Generator Dimensions 140 mm × 70 mm × 150 mm (L × W × H)
Power Adapter Interface AC 220V ± 10%, 50Hz universal utility alignment
Absolute Vacuum Degree 65 kPa stable negative pull-down capacity
Integrated Air Pump Flow Rate 3 L/min constant volumetric throughput
Equipped Filter Screens Standard configuration includes 80 mesh, 100 mesh, and 150 mesh variants
Optional Filter Screens Ultra-fine options scalable down below 1000 mesh specifications
Standard Fluid Capacity 5 L large-volume containment basin (Custom capacities fully available upon request)
Filtration Resolution Boundary High filtration precision up to 124 microns (μm)
Alternative Options Explore our related catalog or custom dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.


Key Functional Features
  • Micron-Level Particle Capture: Delivers exceptional filtration precision up to 124 microns, utilizing two distinct screen classes tailored explicitly for positive and negative electrode conditioning.
  • Full SUS304 Stainless Build: Forged from premium marine-grade SUS304 steel to secure outstanding anti-corrosion properties and ensure long-term structural purity across complex fluid trials.
  • Low-Impedance Extended Lifespan: Engineered with an expanded geometric filter screen surface area to minimize overall system back-pressure loss and prevent premature matrix mesh fatigue.
  • Compact Benchtop Footprint: Designed with an ultra-compact dual-module layout that seamlessly saves specialized lab space while facilitating swift drawer or glovebox storage transitions.

APPLICATION SCOPE: Highly optimized for conditioning micro/nano battery slurry compounds, processing conductive carbon black fluids, refining active electrode suspensions, filtering diagnostic fluids, and ensuring batch uniformity inside cleanrooms and academic spaces.
PACKAGING & STORAGE: Safely packed in standard impact-dampening validation configurations. For custom capacity requirements (e.g., 250mL, 500mL, 1L) or custom mesh profiles under 1000 mesh, contact our technical team at inquiry@atomfair.com.
IMPORTANT NOTICE: Thoroughly verify that the internal mesh screen matrix is seated flat before initializing the 65 kPa absolute vacuum pull-down sequence. Wash out fluid remnants with electronics-grade solvents immediately following each cycle to prevent aggregate cake layer baking on the SUS304 mesh walls. Always check connection seals on the 3 L/min air generator module regularly to retain absolute airtight suction parameters.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

The device requires a grounded AC power supply within 220V±10% to avoid electrical hazards. Vacuum operation should not exceed 65KPa to maintain pump integrity.

  • Electrical Safety: Use only with the provided power adapter and ensure the outlet is grounded.
  • Pressure Limits: Maintain absolute vacuum at or below 65KPa to prevent over-pressurization.
  • Screen Selection: Select filter screen mesh (80, 100, 150, or optional up to 1000) according to slurry particle size.

Follow these steps to safely filter nano-scale slurries using the Atomfair filter. Proper setup and monitoring ensure consistent results and equipment longevity.

Required Equipment: Filter unit, Air generator, Power adapter, Filter screens

  1. Connect Power
    Connect the power adapter to an AC 220V outlet and verify the ground connection.
  2. Install Filter Screen
    Select and install the appropriate filter screen mesh into the filter housing.
  3. Fill Slurry
    Pour the slurry into the 5L capacity container, ensuring not to exceed the fill volume.
  4. Activate Vacuum
    Activate the air pump to generate vacuum and monitor the absolute vacuum gauge to stay below 65KPa.
  5. Collect Filtrate
    Collect the filtrate from the outlet and inspect for desired clarity.

What performance trade-offs should be considered when using optional filter screens below 1000 mesh compared to the equipped 80–150 mesh screens for nano-scale slurry filtration?

Equipped screens (80, 100, 150 mesh) deliver standard particle retention with low pressure loss and high throughput, enabled by the large filtration area. Optional screens below 1000 mesh provide finer filtration but increase pressure drop, which the air pump flow rate of 3 L/min and absolute vacuum degree of 65 KPa can partially offset, though cleaning frequency may rise.

What are the key infrastructure and integration requirements for installing the Atomfair NSF-7392 filter into a battery electrode slurry processing line?

The filter requires an AC 220 V±10%, 50 Hz power supply and bench space of at least 145 mm × 150 mm × 200 mm for the main unit plus 140 mm × 70 mm × 150 mm for the air generator. It is designed for lab-scale integration with positive and negative electrode slurries, and its 5 L customizable capacity allows adaptation to varied batch sizes.

What cleaning and handling procedures are recommended for the SUS304 stainless steel filter to prevent cross-contamination between positive and negative electrode slurries?

The SUS304 stainless steel housing is corrosion-resistant and designed for easy cleaning between runs. Removable filter screens (80, 100, 150 mesh) can be separately cleaned or replaced to avoid cross-contamination. The device’s compact, accessible construction allows straightforward disassembly and rinsing with compatible solvents, and maintenance is simplified by the low-pressure-loss design.

The Atomfair Lab Nano-Scale Slurry Filter provides precise 124-micron filtration with interchangeable screens for positive and negative electrode applications. Its SUS304 stainless steel construction ensures corrosion resistance and easy maintenance, while the 5L customizable capacity suits lab-scale slurry processing. Users must accommodate its specific AC 220V power requirement and 65KPa vacuum limit, which may affect throughput with viscous slurries.

Positive

  • High-precision dual-screen filtration: Achieves filtration precision up to 124 microns with two dedicated particle filter screens for positive and negative electrode slurries, enabling targeted separation in battery material processing.
  • Corrosion-resistant stainless steel build: Full SUS304 stainless steel construction provides excellent corrosion resistance, easy cleaning, and long service life, maintaining cleanliness and forming performance in aggressive slurry environments.

Trade-offs

  • Specific AC power requirement: Operates on AC 220V±10%, 50Hz power supply, which may require a voltage converter or dedicated outlet in labs with 110V or non-50Hz installations.
  • Limited vacuum capacity: Absolute vacuum degree is only 65KPa with an air pump flow rate of 3L/min, potentially restricting filtration speed for high-viscosity or dense slurries.
