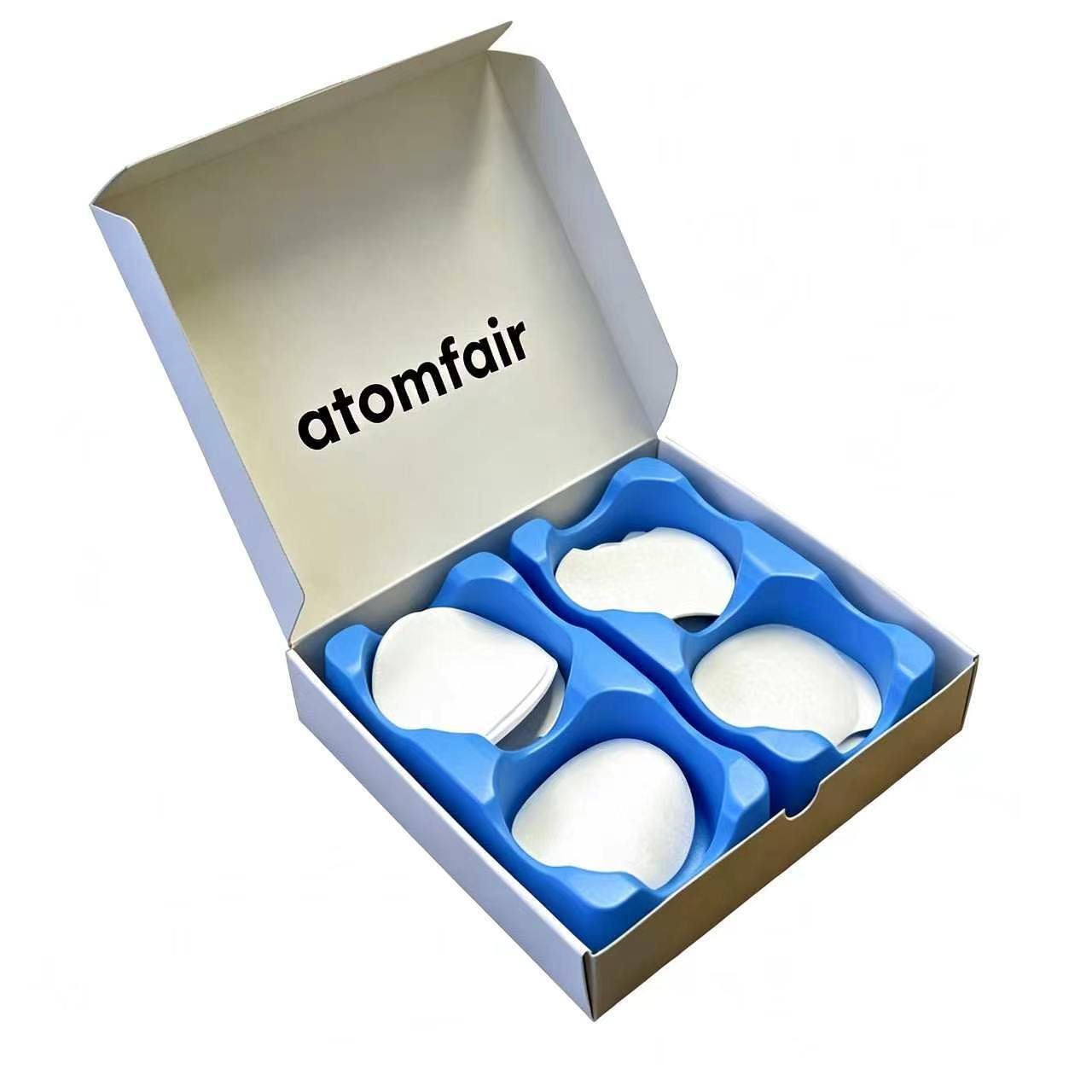

ATOMFAIR® an open white cardboard box containing white circular PTFE battery separator discs neatly stacked inside a four-compartment blue plastic tray.

High-Purity PTFE Separator 0.2-0.22μm 47mm ATOMFAIR®

$201.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

High-purity PTFE separator for lithium-air battery R&D. Pore size 0.2-0.22μm, thickness 130-200μm, bubble point 16.0-24.7 psi. Meets ASTM F316. In stock.

SKU: AFMSHOSW423
Category:
Brands:

Description

ATOMFAIR® 0.2UM PORE SIZE PTFE SEPARATOR

RESEARCH GRADE MATERIAL

Product Overview
The ATOMFAIR® 0.2μm Pore Size PTFE Separator is a premium, research-dedicated component engineered exclusively for advanced lithium-air battery R&D and aggressive material compatibility verification. Fabricated from high-purity polytetrafluoroethylene (PTFE), this matrix membrane integrates exceptional chemical inertness with total structural hydrophobicity. Its precisely calibrated pore network features rigid dimensional stability to withstand corrosive solvents, alkalis, and acids. By securing uninterrupted gas cross-flow while completely blocking water-based aerosols, it eliminates moisture-induced parasitic side reactions to lock in uncompromised data reproducibility.

Technical Specifications

PARAMETER DETAILS / METRIC VALUES
1. Core Device & Device Root Substrate Designation
Material Composition High-Purity Polytetrafluoroethylene (PTFE) Matrix
Intrinsic Surface Property Strongly Hydrophobic (Blocks moisture intrusion and aqueous aerosols)
Laboratory Box Specification Convenient R&D Packaging (100 uniform pieces per box)
2. Membrane & Porous Barrier Parameters
Calibrated Pore Size Scope 0.2 × 0.22 μm Precise Geometric Boundaries
Total Membrane Thickness Range 130 × 200 μm Thickness Cross-Section
Form Factor Diameter 47 mm Circular Pre-cut Disc Layout
3. Gas Transport, Pressure & Hydrophobic Kinetics Matrix
Bubble Point Threshold Range 16.0 × 24.7 psi Matrix Failure Pressure
Cross-Flow Permeability Flux 8 × 13.8 ml/min·cm² Under Calibrated Structural Differential Pressures
Manufacturing Rules Processed under strict ISO standard experimental grade compliance conditions (ISO 10993, ASTM F316, and ASTM E1294 compliant)
Alternative Options Explore our full porous battery barrier spectrum or tailor-made geometric sizes. For specific institutional quotes, specialized performance test sheets, or sample requirements, please contact our support team.


Key Features & Advantages
  • Homogeneous Material Purity: Formulated with premium fluoropolymer solids to ensure supreme acid, alkali, and non-polar solvent immunity, fully neutralizing corrosion from aggressive non-aqueous electrolytes.
  • Enhanced Operational Efficiency: Specifically engineered to demonstrate reliable gas transmission paths, effectively preventing aerosol penetration and humidity-induced side-reactions.
  • Optimized Microstructure: Tightly controlled bubble points and flux ranges secure absolute batch-to-batch consistency, significantly eliminating baseline testing variables on research cells.

APPLICATION SCOPE: Dedicated micro-porous barrier separators for lithium-air battery cell integration, material compatibility evaluation in harsh chemical environments, customized battery breathable protection hoods, and targeted gas-purification/moisture-blocking verification workflows.
PACKAGING: Sealed protective laboratory packaging with integrated anti-contamination inner shielding to preserve uncompromised surface cleanliness during transit.
IMPORTANT NOTICE: This porous hydrophobic matrix is highly vulnerable to surface oil and mechanical handling defects. Keep membrane packages securely integrated and handle exclusively under contamination-free laboratory settings away from unexpected chemical fumes, dust buildup, or direct impact pressures to defend pore configuration values before definitive validation.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

The separator is chemically resistant to aggressive electrolytes and solvents used in lithium-air battery systems. It provides a hydrophobic barrier against moisture and aerosols to prevent side reactions.

  • Chemical Compatibility: The separator withstands corrosion from aggressive electrolytes, acids, and solvents.
  • Moisture Barrier: The separator blocks water-based aerosols and prevents moisture intrusion.
  • Gas Permeability: The separator enables unimpeded gas transmission.
  • Dimensional Stability: The separator maintains dimensional stability under harsh testing conditions.

How does the 0.2–0.22 μm pore size range affect bubble point and flow rate for lithium-air battery separator performance?

The specified pore size range yields a bubble point of 16.0–24.7 psi and a flow rate of 8–13.8 ml/min·cm² at 10 psi. This trade-off ensures the separator effectively blocks water-based aerosols (hydrophobic barrier) while maintaining sufficient gas permeability for cathode oxygen access—both critical for lithium-air cell operation. The tight pore size tolerance keeps performance consistent across batches.

Can this PTFE separator be used with organic electrolytes and aggressive solvents typical in lithium-air battery research?

Yes, the high-purity PTFE material provides outstanding acid, alkali, and solvent resistance, withstanding corrosion from aggressive electrolytes and liquids common in lithium-air systems. The raw material complies with ISO 10993 standards for chemical inertness, ensuring no adverse reactions with electrolytes or electrode materials. This prevents degradation and failure issues seen with traditional separators.

What handling and storage conditions are required to preserve the hydrophobicity and pore integrity of this PTFE separator?

Store the separator in a dry, clean environment to maintain its hydrophobic property and prevent moisture intrusion. The PTFE material inherently resists moisture and blocks water aerosols as designed, but contamination or physical damage can alter pore structure. Keep in the original packaging (100 pieces per box) until use to avoid dust and mechanical stress that could compromise dimensional stability.

This Atomfair PTFE separator provides high chemical resistance and precise hydrophobic gas permeability for lithium-air battery R&D, but is explicitly designed for research-scale use and dedicated to lithium-air cell applications.

Positive

  • Superior chemical resistance to aggressive electrolytes: High-purity PTFE withstands corrosion from strong acids, alkalis, and solvents used in lithium-air battery experiments, preventing separator degradation and ensuring stable test conditions.
  • Precise hydrophobic gas-permeable design: Controlled 0.2–0.22 µm pore size blocks water-based aerosols while enabling unimpeded oxygen transmission, critical for lithium-air battery operation and moisture intrusion prevention.

Trade-offs

  • Application limited to lithium-air R&D: This separator is explicitly tailored for lithium-air battery research and material compatibility testing, not validated for other battery chemistries or general separation tasks.
  • Not intended for production-scale use: Marketed as a research-dedicated component, it is optimized for laboratory experimental cell assembly and is not specified for pilot or commercial manufacturing lines.
