ATOMFAIR® AF-FR100L INDUSTRIAL FIBER STRENGTHENING SYSTEMRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
Processed materials require a controlled inert atmosphere with sub-ppm oxygen and moisture to prevent hydrolysis of sulfide and halide electrolytes. Operation must be conducted within the equipment's rated temperature and pressure limits to avoid thermal degradation or mechanical failure.
- Atmosphere Integrity: Maintain continuous inert gas flow and vacuum integrity to prevent atmospheric contamination of reactive electrolyte materials.
- Thermal Management: Do not exceed the maximum operating temperature to avoid decomposition or phase changes in processed materials.
- Material Compatibility: Process only cathode, anode, and electrolyte materials that are chemically compatible with the 100L stainless steel chamber and inert atmosphere.
- Containment and Ventilation: Ensure local exhaust ventilation is active to capture any fugitive dust or off-gases from sulfide or halide electrolytes.
- Grounding and Interlocks: Verify all electrical connections are grounded and safety interlocks are engaged before powering the screw discharge mechanism.
This procedure details the initialization, material feeding, and shutdown steps for processing sulfide-based electrolytes under inert atmosphere. Adherence to these steps ensures consistent fiber network reinforcement while mitigating exposure risks to reactive compounds.
Required Equipment: Inert gas supply (argon or nitrogen), Vacuum pump with exhaust filtration, Material feeding hopper with moisture barrier, Temperature controller with over-limit alarm
- Prepare inert atmosphere
Evacuate the chamber to below 1 mbar using the vacuum pump, then backfill with inert gas to ambient pressure until oxygen concentration falls below 1 ppm. - Load fiber network material
Transfer the fiber network material into the gravity feeding hopper, ensuring the hopper remains sealed to prevent moisture ingress. - Set process parameters
Configure the temperature controller to the desired set point within the operating range and activate the screw discharge at the required feed rate. - Monitor process conditions
Continuously observe chamber pressure, temperature, and inert gas flow to maintain stable conditions throughout the reinforcement cycle. - Unload processed material
Deactivate the heater and screw discharge, then slowly vent the chamber to atmospheric pressure with inert gas purge before collecting the reinforced fiber network. - Shut down and clean
Power off all systems, disconnect inert gas supply, and clean the chamber interior using a non-abrasive tool to remove residual electrolyte dust.
How does the 100 kg/h processing capacity affect the uniformity of fiber network strengthening when processing sulfide electrolyte powders?
The AF-FR100L delivers rapid and uniform network strengthening even at the maximum throughput of 100 kg/h, thanks to its gravity feeding and screw discharging design combined with precise atmosphere control. The optimized mechanical design ensures efficient fiber reinforcement that maintains consistent mechanical stability and structural integrity across large batches, with no compromise in uniformity.
Can the Atomfair AF-FR100L be integrated into a production line requiring continuous inert atmosphere processing for halide electrolyte materials?
Yes, the AF-FR100L supports integration into inert-atmosphere lines via its vacuum pumping and inert gas filling system, which provides precise atmosphere control. The gravity feeding and screw discharging methods allow for both batch and continuous operation modes, making it compatible with upstream and downstream equipment that maintain inert environments. For specific integration requirements, customization inquiries can be directed to the manufacturer.
What handling and safety precautions are required when using the AF-FR100L to process air-sensitive materials like sulfide electrolytes?
Processing sulfide electrolytes in the AF-FR100L demands strict inert atmosphere protection due to their high reactivity with moisture and oxygen. The equipment’s vacuum pumping and inert gas filling system creates a controlled environment to mitigate exposure risks. Additionally, operators should follow standard safe handling practices for fine powders, including electrostatic discharge precautions, given the equipment's 100 kg/h throughput capacity. Detailed safety protocols should be obtained from the supplier.

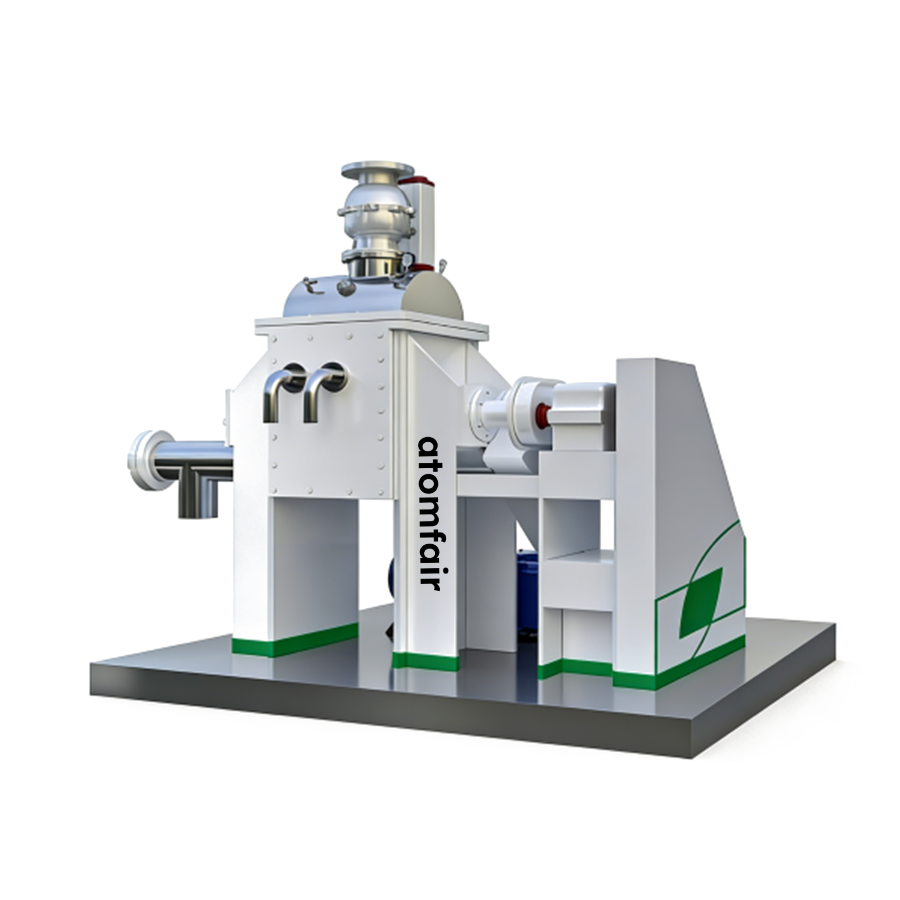

The AF-FR100L is a 100L industrial-scale fiber network strengthening system with a processing capacity of 100 kg/h, employing gravity feeding and screw discharging. Its precise atmosphere control via vacuum pumping and inert gas filling, combined with a temperature range up to 100°C, enables uniform reinforcement of cathode, anode, and electrolyte materials, including moisture-sensitive sulfides and halides.
Positive
- High-Volume Processing Capacity: With a 100 L volume and 100 kg/h throughput, the system supports large-scale industrial production, significantly improving preparation efficiency and reducing cycle time.
- Precise Atmosphere and Temperature Control: The combination of vacuum pumping, inert gas filling, and a temperature range from room temperature to 100°C allows strict regulation of process parameters, ensuring consistent material quality and repeatability.
Trade-offs
- Limited Temperature Range: The maximum operating temperature is 100°C, which may be insufficient for processes requiring elevated thermal treatment, such as certain calcination or annealing steps.
- Gravity Feeding Constraint: Gravity feeding relies on material flow under gravity, which can cause bridging or inconsistent feed rates for cohesive or low-bulk-density powders, potentially requiring additional feeding aids or preconditioning.
