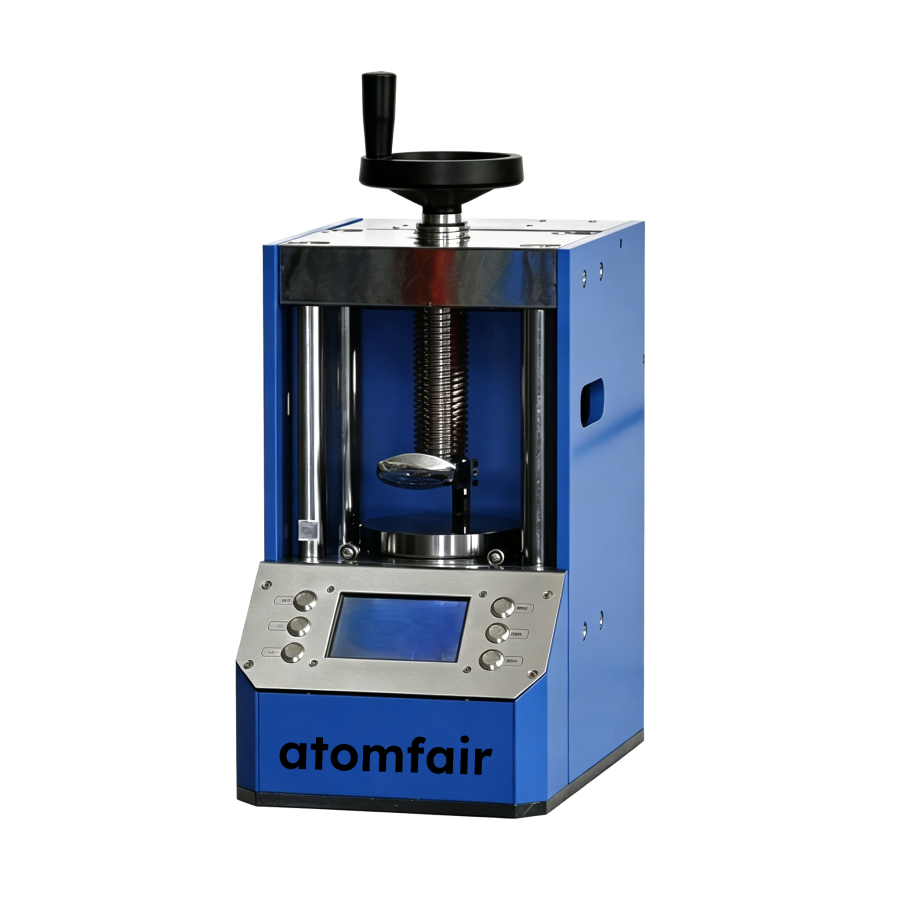

ATOMFAIR ATP-671 AUTOMATIC PELLET PRESS (0-30 TON)GENERAL PURPOSE LABORATORY COMPACTION SYSTEM
|
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or customized equipment quotations.
EMAIL: INQUIRY@ATOMFAIR.COM
|
|||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR
|
The ATP-671 automatic pellet press generates up to 30 tons of compressive force and requires strict adherence to electrical and mechanical safety protocols. Improper use may cause crushing injuries, electrical shock, or equipment damage if load capacities or environmental limits are exceeded.
- Electrical Safety: Ensure the press is connected to a grounded outlet and never operate with wet hands or near water sources.
- Mechanical Hazard: Keep hands and loose items clear of the pressing area during operation to avoid pinch-point injuries.
- Pressure Limit: Do not exceed the rated 30-ton compression limit as structural overload may lead to frame failure or component rupture.
- Environmental Conditions: Operate the press on a stable, level surface in a dry, dust-free environment between 10°C and 40°C.
- Maintenance: Inspect hydraulic seals and electrical connections monthly and replace worn parts before continued use.
This procedure guides the user through pre-operation checks, sample loading, and automated pressing cycles. Following these steps ensures safe and reproducible pellet formation while preventing overload or mechanical failure.
Required Equipment: Sample Die Set, Safety Glasses, Protective Gloves, Level Surface
- Pre-Operation Inspection
Inspect the press for any visible damage, debris, or loose components before connecting power. - Parameter Configuration
Set the desired pressure and dwell time on the LCD interface using the keypad controls. - Sample Loading
Place the sample powder evenly into the die cavity and ensure the die is clean and dry. - Die Positioning
Position the die centrally on the press platen to ensure uniform force distribution. - Cycle Initiation
Initiate the automatic pressing cycle by pressing the start button on the LCD panel. - Cycle Completion
Allow the cycle to complete; the press will automatically vent and retract the platen. - Pellet Retrieval
Retrieve the formed pellet after the platen retracts fully and the press powers down.
What is the maximum sample hardness the ATP-671 can effectively compact at 30 tons?
The ATP-671 is engineered for routine chemical crystals and medium-hardness composite material powders, as stated in its product overview. It cannot reliably compact very hard or brittle materials such as sintered ceramics or metal alloys without risking die damage or inconsistent pellet quality. The 30-ton metric limit and multi-pillar structure provide sufficient force for standard infrared spectroscopy samples and mineral fragments, but harder matrices require a higher-tonnage press.
What is the maximum pellet die diameter that fits inside the ATP-671's internal column clearance?
The internal column clearance is 140 mm × 160 mm spacing, so the maximum die outer diameter must be less than the smaller dimension (140 mm) to fit between the pillars. However, the actual die height and mounting may further restrict usable diameter. Common laboratory dies up to 40-50 mm diameter typically fit, but users should verify die dimensions against the stated 140 mm × 160 mm spacing to ensure proper clearance.
What bench strength and space are required to safely install the 98 kg ATP-671 automatic pellet press?
The ATP-671 weighs 98 kg and measures 230 mm × 390 mm × 420 mm, requiring a sturdy, level benchtop rated for at least 150 kg static load to ensure stability and avoid tipping during operation. The bench must also provide clearance for the 140 mm × 160 mm column spacing and allow easy access to the LCD control panel. Operators must never exceed the 30-ton maximum pressure to prevent hydraulic system failure, as noted in the operational compliance notice.
The ATP-671 automatic pellet press offers a 30-ton intelligent closed-loop compaction cycle for producing flat, crack-free disks from routine chemicals and medium-hardness minerals, but its 98 kg mass and strict 30-ton pressure ceiling require robust benchtop support and careful operational adherence to avoid seal damage.
Positive
- Extended 30-ton power profile: Handles both routine chemical crystals and medium-hardness composite powders, enabling batch production of uniform pressed disks for spectroscopy and QC applications.
- Intelligent closed-loop cycle: Fully automated pressure ramp, stable dwell, and exhaust stages deliver flat, crack-free specimens with high batch repeatability for third-party and industrial labs.
Trade-offs
- Heavy 98 kg equipment mass: The 98 kg benchtop weight demands a reinforced laboratory workstation capable of safely supporting the unit to prevent structural instability.
- 30-ton compression ceiling limit: Exceeding the 30-ton maximum risks damaging internal hydraulic seals and lines, requiring strict adherence to the rated pressure limit during operation.
