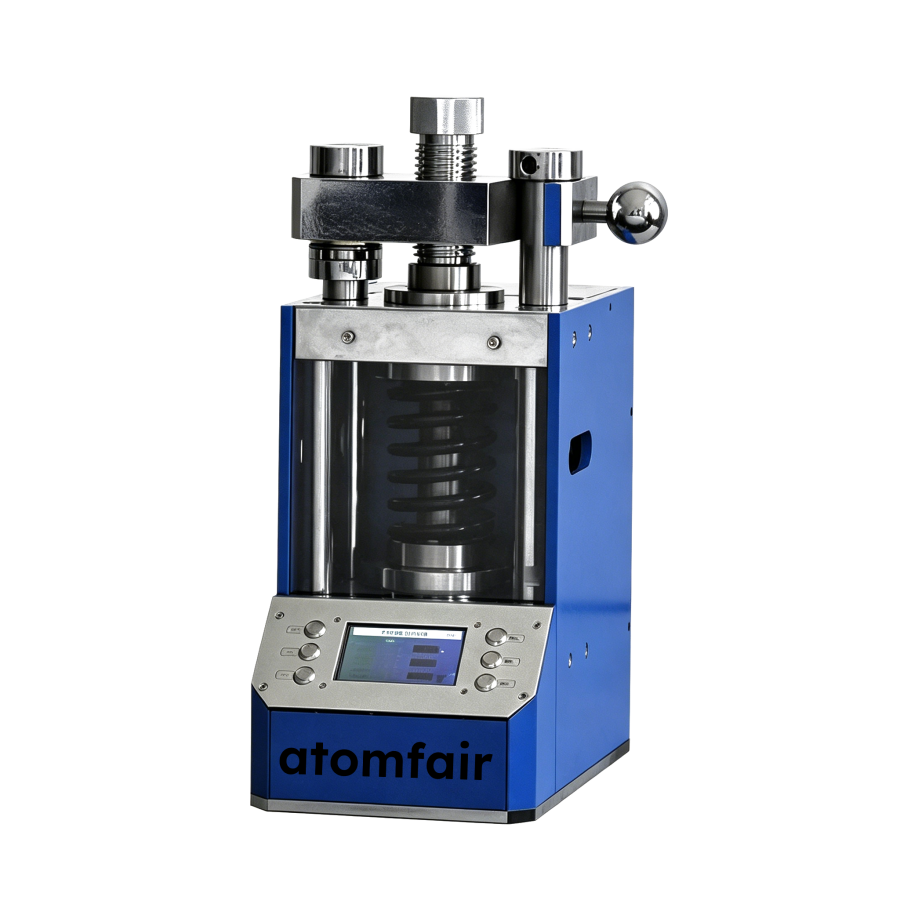

ATOMFAIR AFP-518 AUTOMATIC FLUORESCENCE PELLET PRESS (0-30 TON)PROGRAMMABLE SPECTROSCOPY HARDWARE
|
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or customized equipment quotations.
EMAIL: INQUIRY@ATOMFAIR.COM
|
|||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR
|
This procedure outlines the safe operation of the AFP-518 automatic pellet press for preparing fluorescence spectroscopy samples. The press uses a controlled compression sequence to produce uniform pellets from powdered materials.
Required Equipment: AFP-518 Automatic Fluorescence Pellet Press
- Initiate Slow Press Intensification
Activate the press to begin gradual compression of the sample at a controlled rate until the target pressure is reached. - Maintain Continuous Stabilization
Hold the pressure steady for the programmed dwell duration to ensure uniform pellet density. - Engage Automatic System Venting
Trigger the automated venting sequence to release pressure and extract the finished pellet.
How does the adjustable dwell time from 0 to 999.59 seconds affect pellet quality for different sample matrices?
The dwell time directly controls the stabilization phase of the compression sequence. For hard oxides or ceramics, longer dwell times (e.g., 600–999 seconds) ensure complete consolidation and uniform density, while for softer polymers or organic powders, shorter durations prevent over-compaction and structural cracking. The AFP-518's automated slow-press loading and programmed venting further mitigate layer separation and improve reproducibility.
Can the AFP-518 be used with die sizes other than the included 40mm boric acid die?
Yes, the AFP-518 supports alternative tooling options. While the standard hardware includes a Φ40 mm boric acid die module, users can order customized powder metallurgy molds or other standard die dimensions. Contact Atomfair engineering to verify compatibility with specific die geometries and to select appropriate hydraulic loads.
What are the infrastructure requirements for safely installing the AFP-518 pellet press?
The AFP-518 weighs 110 kg and occupies a footprint of 250 mm × 390 mm × 460 mm. The supporting bench or table must be rated to safely bear the 110 kg static load. Additionally, operators must never exceed the rated 30-ton pressure limit to preserve hydraulic integrity. Ensure adequate clearance around the unit for venting and maintenance access.
The AFP-518 delivers a calibrated 0-30 ton programmable hydraulic press with soft-start compression and integrated 40 mm boric acid die, enabling reproducible XRF/XRD pellet preparation. However, its 110 kg mass demands reinforced benching, and the single included die size limits out-of-the-box sample dimensions to 40 mm, requiring additional tooling purchases for other formats.
Positive
- Calibrated 0-30 Ton Hydraulic Core: The press is engineered to process standard hardness powders and oxides, comfortably fulfilling daily multi-sample analytical schedules with a wide pressure envelope.
- Advanced Soft-Start Programming: Programmable delay windows up to 999.59 seconds allow gradual compression ramps that prevent target matrix cracking or internal layer separation, improving sample integrity.
Trade-offs
- Heavy 110 kg Frame Requires Reinforced Benching: The 110 kg structural mass and operational compliance notice explicitly warn that laboratory benching must safely support the load to avoid structural risk during operation.
- Standard Die Limited to 40 mm Boric Acid: The included tooling is a fixed Φ40 mm boric acid die; alternative mold dimensions or customized dies must be sourced separately from the catalog, adding lead time and cost.
