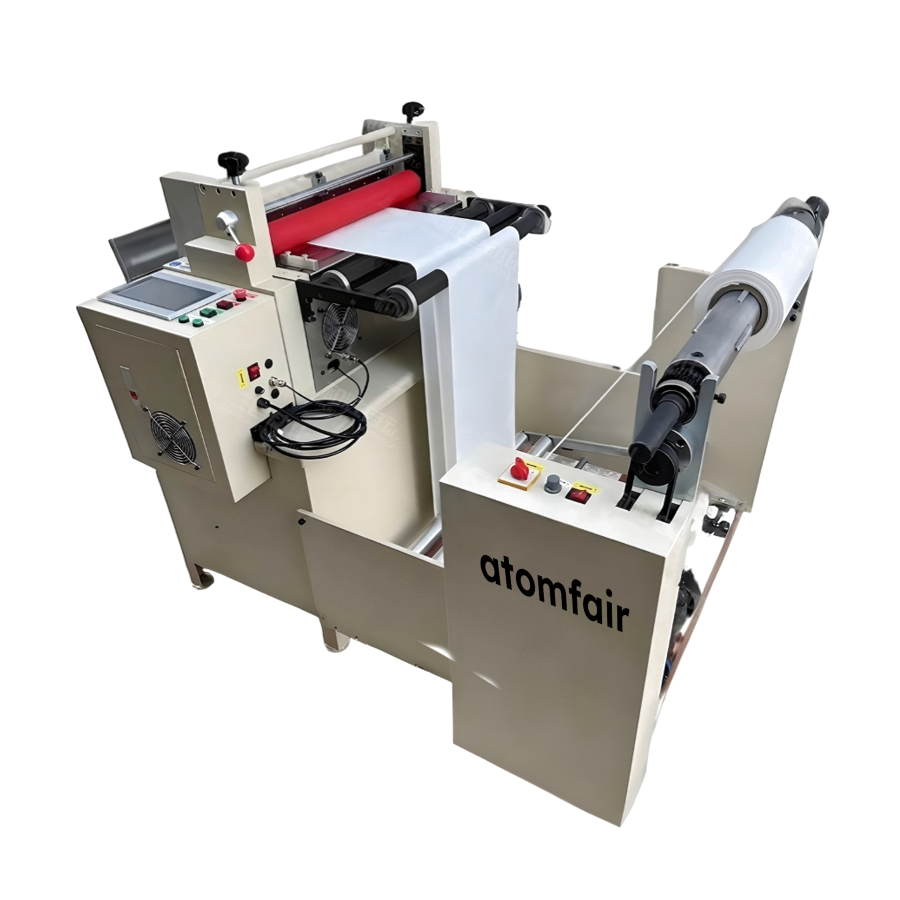

ATOMFAIR® ATOMFAIR-ADM-371 DIE CUTTING MACHINERESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||
The machine requires stable electrical and pneumatic supplies within manufacturer-defined limits to ensure safe and precise operation. Proper material handling and cleanliness measures prevent defects and extend mold life.
- Electrical Supply: Maintain AC power within the specified voltage tolerance to prevent electrical damage.
- Compressed Air: Supply clean, dry air at the recommended pressure to ensure consistent punching force.
- Cleanliness: Activate static elimination and brush cleaning to prevent dust accumulation on electrode surfaces.
This machine automatically cuts electrode sheets from continuous material using a die-cutting mold. Setup involves installing the mold, loading material, and configuring feeding parameters.
Required Equipment: Automatic die cutting machine, Die-cutting mold, Compressed air supply
- Install Mold
Install the appropriate die-cutting mold into the clamping mechanism and secure it. - Load Material
Load the electrode reel onto the unwinding shaft and thread the material through the guiding rollers. - Set Parameters
Set the feeding length and forming speed on the control panel according to your specifications. - Start Operation
Start the pneumatic and electrical systems, then initiate the automatic sequence. - Collect Output
Monitor the forming process and collect the cut electrode sheets from the output.
How does the Atomfair-ADM-371 maintain burr control within ≤±0.01 mm Z-burr and ≤±0.02 mm X-burr across the full electrode thickness range of 0.06–0.25 mm?
The integral casting frame with four-link drive provides stable and uniform punching force, which is critical for consistent burr control across varying electrode thicknesses. Additionally, the servo manipulator ensures precise fixed-length feeding with ±0.2 mm accuracy, and the automatic mold clamping with swing adjustment maintains optimal die clearance throughout the thickness range.
What specific features enable the Atomfair-ADM-371 to handle intermittent coating patterns without cumulative registration errors?
The machine is equipped with a dedicated memory function for intermittent coating and an automatic compensation system that eliminates cumulative error. Combined with the servo manipulator for precise fixed-length feeding and deviation correction, it ensures accurate registration even with variable coating patterns, making it suitable for positive/negative electrode forming of power batteries.
What are the utility and environmental requirements for operating the Atomfair-ADM-371, including power supply, compressed air, and contamination control?
The Atomfair-ADM-371 requires a 380V AC ±10% power supply with a 6.5 kW capacity and compressed air at 0.5–0.7 MPa. It includes static elimination and brush cleaning on PET film to prevent dust contamination. The machine measures 4600 mm × 2500 mm × 1800 mm and weighs 4.6 T, necessitating adequate floor support and space for operation and maintenance.
The Atomfair-ADM-371 is a heavy-duty automatic die cutting machine for power battery electrode forming, offering ±0.2 mm feeding accuracy and burr control below 0.02 mm, but operators must account for a stated 3% failure rate and the requirement for compressed air (0.5–0.7 MPa) and AC 380V power infrastructure.
Positive
- High precision feeding and low burr: Feeding accuracy of ±0.2 mm and maximum burr levels of 0.01 mm (Z) / 0.02 mm (X) directly improve electrode quality and reduce risk of internal short circuits in battery cells.
- Robust mechanical punching stability: The integral casting frame with four-link drive provides uniform, repeatable punching force, supporting consistent die-cutting and a mold life of at least 30,000 strokes.
Trade-offs
- Specified 3% failure rate: A failure rate of 3% means approximately 3 in every 100 strokes may produce non-conforming parts, requiring process monitoring and potential rework that can reduce overall line efficiency.
- Demands compressed air and 380V power: Operation requires compressed air at 0.5–0.7 MPa and a three-phase AC 380V supply, necessitating dedicated utility infrastructure and adequate compressor capacity in the production area.
