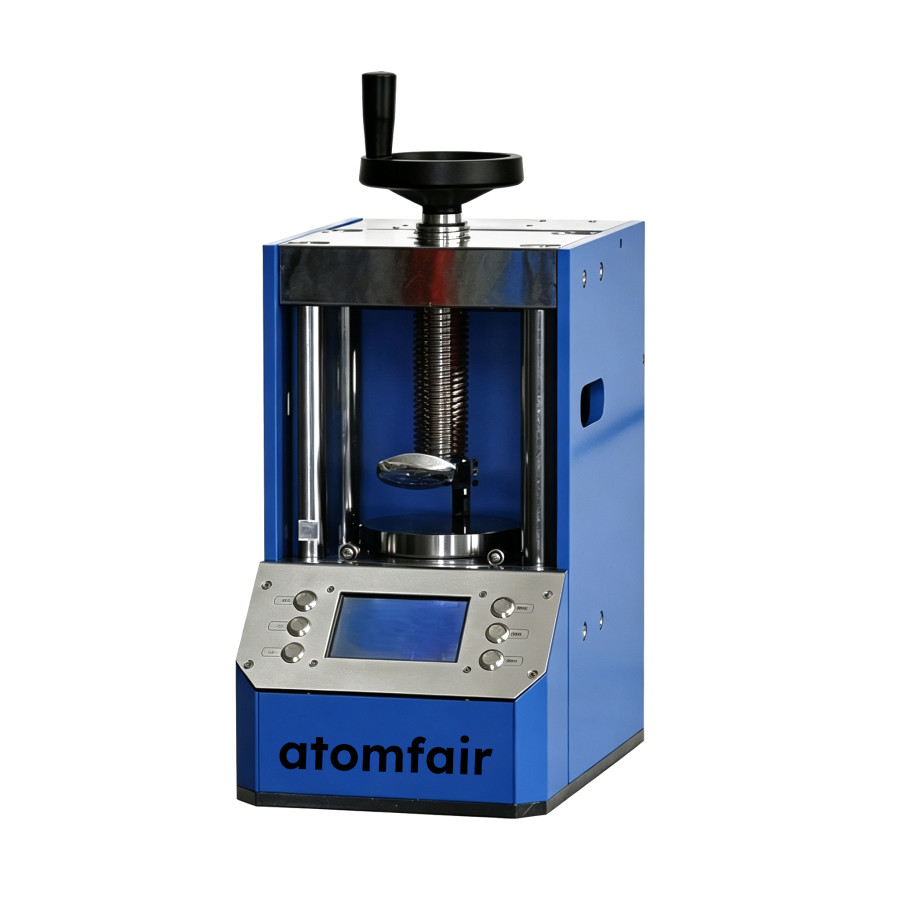

ATOMFAIR® blue industrial automatic pellet press machine with a top black handwheel and a control screen on a white background.

Automatic Pellet Press 0-40 Ton Model ATP-893 ATOMFAIR®

$5,790.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Industrial-grade automatic pellet press with 0-40 ton capacity and 175×180 mm column clearance. LCD touch control, 280x460x550 mm footprint. In stock.

SKU: AFMSRRPE074
Category:
Tags:
Brands:

Description

ATP-893 Automatic Pellet Press (0 – 40 Ton)

HEAVY-DUTY INDUSTRIAL COMPACTION SYSTEM

Product Overview
High-throughput analytical tracking and heavy industrial minerals validation require absolute structural consolidation under intense forces, and this commercial-grade automatic pellet press chassis supplies superior hydraulic load execution across automated sample production lines. Engineered explicitly to automate rigorous high pressure powder compaction sequences, the machine delivers a continuous 0 – 40 ton metric force threshold capable of processing high-hardness geological ores, abrasive metallurgical aggregates, and technical ceramic compounds that resist standard tableting methods. The mechanical frame features an expanded 175 mm × 180 mm column clearance designed to accommodate large, heavy-walled powder dies without causing framework deflection or misalignment errors. Operating as a dependable 40 ton hydraulic lab press framework, the built-in closed-loop logic drives an automated cycle sequence that integrates smart progressive loading, high-precision stabilization, and controlled exhaust routines to provide a master-tier industrial sample preparation system for modern testing workflows.

Technical Specifications
ANALYTICAL HARDWARE PARAMETER TECHNICAL SPECIFICATION RATINGS
Equipment Model Series ATP-893 Industrial Compaction System
Pressure Range Output 0 – 40 Tons Metric Compression Limit Threshold
Control Loop Sequence Intelligent Intensification → Continuous Pressure Stabilization → Automatic System Venting
Regulated Dwell Duration 0 – 999.59 Seconds Configurable Programmable Window
Operator Interface Unit High-Contrast LCD Screen Module Console
Internal Column Clearance 175 mm × 180 mm Widened Spacing Dimension Layout
External Equipment Dimensions 280 mm × 460 mm × 550 mm Heavy Duty Footprint
Net Equipment Chassis Mass 150 kg Rigid Industrial Weight Frame
Alternative Catalog Items Explore our complete laboratory machinery catalog for larger 60-Ton automatic press variants, customized split-die sets for battery research, automated ring grinders, or vacuum pellet molds.

Key Features & Advantages
  • Heavy-Duty 40-Ton Hydraulic Core: Tailored specifically to master stubborn, highly abrasive, or rigid industrial compounds smoothly without structural or seals strain.
  • Stabilized Closed-Loop Automation: Automated cycles ensure continuous sample density metrics, delivering perfectly tight, non-crumbling pellet surfaces suitable for high-precision analytical spectroscopy.
  • Expanded Tooling Column Geometry: Built with a wide 175mm × 180mm interior clearance layout to accommodate heavy-walled industrial powder dies and large-diameter assemblies easily.
  • Industrial Reinforced Enclosure: Features a high-integrity 150 kg steel structure engineered to safely damp cyclical mechanical shock during non-stop, multi-shift laboratory inspection schedules.

APPLICATION SCOPE: Mining operations, metallurgical inspection divisions, industrial technical ceramic production plants, large materials validation laboratories, and third-party commercial testing centers handling minerals, ores, hard chemical compounds, and metallic powders.
SHIPPING & LOGISTICS: Fully crated inside heavy, shock-absorbing industrial wooden packaging units to eliminate maritime or overland freight handling risks. Shipped with dedicated calibration certificates, power linkages, and standard operation software layout profiles.
OPERATIONAL COMPLIANCE NOTICE: Confirm your destination laboratory platform safely supports the heavy 150 kg mechanical system weight boundaries. Never operationalize the equipment past the 40-ton compression limit threshold to avoid internal hydraulic valve or line seal wear faults. Use only on flat, level horizontal surfaces and complete periodic system validation checks per the instruction manual.

TAILORED SOLUTIONS FOR PRODUCTION
Contact our engineering team for technical support or official commercial quotations.
EMAIL: INQUIRY@ATOMFAIR.COM
Manufacturer: PRODUCTION DIVISION · ADVANCED ENERGY STORAGE DIVISION
Brand: INDUSTRIAL TESTING HARDWARE
Specifications are representative and subject to change without notice. For the latest version and compliance certificates, contact official sales channel.

This high-pressure pellet press must be operated within its rated maximum limit to ensure structural integrity and operator safety. Proper storage in a dry, climate-controlled environment is essential to protect hydraulic and electronic components from degradation.

  • Pressure Limit: Do not exceed the 40-ton maximum rated pressure to prevent mechanical overstress and potential failure.
  • Level Surface: Operate the press on a stable, level workbench to maintain alignment and prevent tipping during the compaction cycle.
  • Hydraulic Fluid Integrity: Periodically inspect hydraulic fluid levels and quality to avoid pump damage and ensure consistent pressure application.
  • Automatic Venting: Allow the automatic venting cycle to complete fully before opening the press to release residual hydraulic pressure safely.

This sequence describes the safe and effective operation of the automatic pellet press for high-hardness sample compaction. Follow each step precisely to avoid equipment damage and ensure consistent pellet quality.

Required Equipment: Mold assembly appropriate for sample geometry

  1. Inspect Press
    Inspect the press for any visible damage, fluid leaks, or obstructions before initiating operation.
  2. Set Parameters
    Set the desired pressure level and dwell duration on the LCD console using the interface controls.
  3. Load Sample
    Load the sample powder into the selected mold assembly and position it centrally on the lower platen.
  4. Initiate Compression
    Activate the intelligent intensification phase to apply progressive pressure until the target load is reached.
  5. Complete Cycle
    Wait for the automatic stabilization and venting sequence to finish, then open the press and remove the pellet.

How does the ATP-893's 175 mm × 180 mm internal column clearance impact its structural integrity when compacting large dies at 40 tons?

The widened 175 mm × 180 mm column clearance is specifically engineered to accommodate heavy-walled industrial powder dies and large-diameter assemblies without sacrificing structural integrity. The reinforced 150 kg steel structure minimizes stress deflection, preventing sample crumbling even at the maximum 40-ton pressure load.

Can the ATP-893 produce pellets suitable for XRF or other optical analysis, and what mold sizes does it support?

Yes, the ATP-893 produces tight, non-crumbling pellet surfaces suitable for sensitive optics. It supports custom powder metallurgy molds and standard dies within its 175 mm × 180 mm internal column clearance; alternative die dimensions and customized tooling are available through the manufacturer's catalog.

What infrastructure and power connections are needed to install the 150 kg ATP-893 automatic pellet press in a laboratory?

The ATP-893 requires a sturdy laboratory bench or floor mounting capable of supporting its 150 kg mass. It ships with calibration certificates and power linkages for electrical connection; the automated control loop handles intensification, stabilization, and venting without manual intervention, reducing operator safety concerns.

This 40-ton automatic pellet press offers a heavy-duty hydraulic core with closed-loop automation for consistent high-density compacting of abrasive and rigid materials, featuring a 150 kg reinforced structure and expanded 175×180 mm column spacing. Its intelligent control sequence and configurable dwell time up to 999.59 seconds enable precise processing for industrial QC and metallurgical applications.

Positive

  • 40-Ton High-Pressure Hydraulic Core: Engineered to compact highly abrasive and rigid industrial compounds, delivering stable high-density pellets without operational strain.
  • Stabilized Closed-Loop Automation: Automated cycles with intelligent intensification, continuous pressure stabilization, and automatic venting ensure consistent sample density and non-crumbling pellet surfaces.

Trade-offs

  • High Gross Mass Requires Handling Infrastructure: The unit’s 150 kg steel structure demands mechanical lifting aids and a reinforced floor surface for safe installation and operation.
  • Limited Internal Column Clearance: Although widened to 175 mm × 180 mm, the column spacing may restrict use of exceptionally large or custom die geometries beyond this footprint.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
