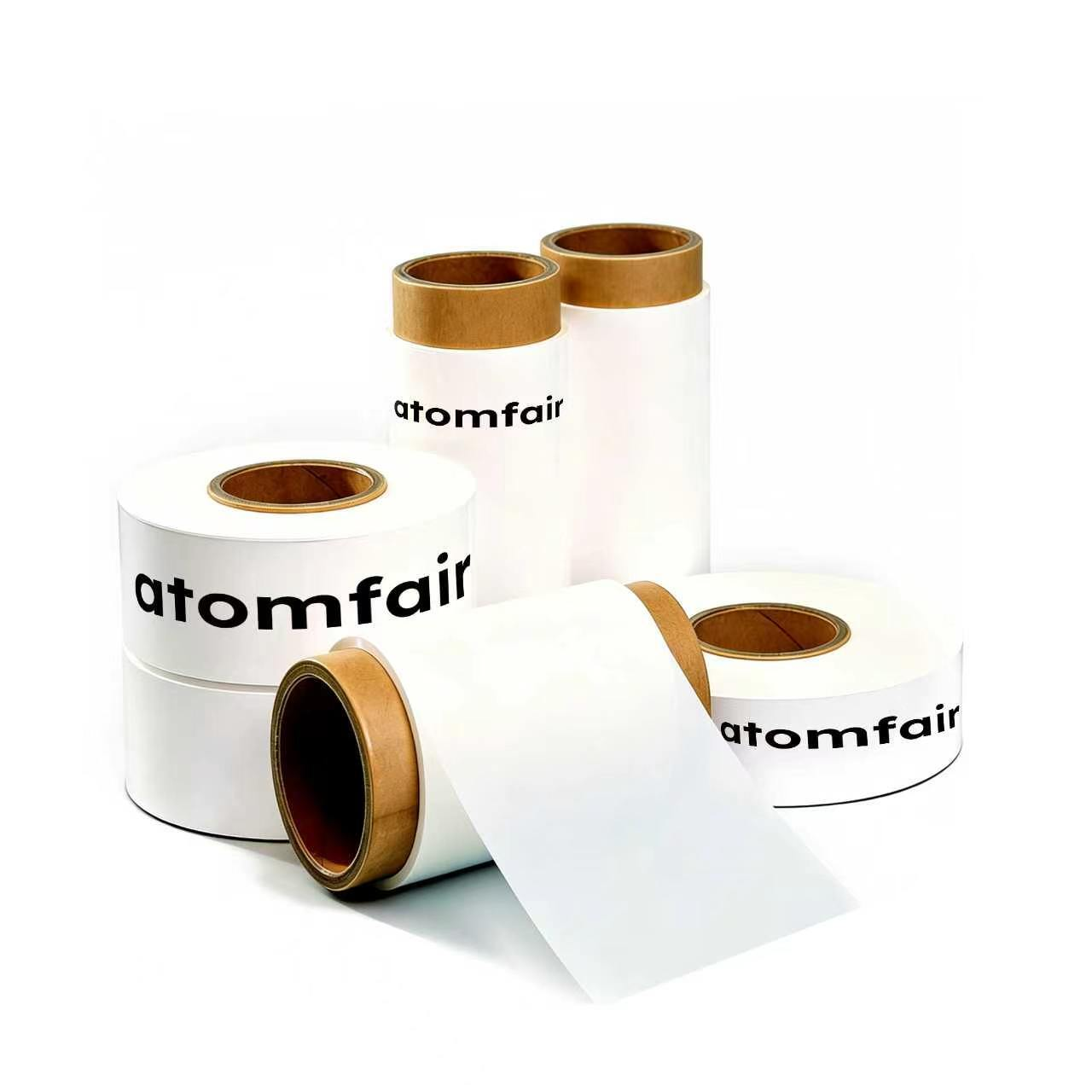

ATOMFAIR® SINGLE-SIDED ALUMINA + LATP DOUBLE-LAYER COATED PE SEPARATOR ROLLRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||||
This separator roll must be stored in a dry, temperature-controlled environment to prevent moisture absorption and thermal degradation. The coating layers are susceptible to delamination under excessive mechanical stress or prolonged exposure to temperatures above 130°C.
- Thermal Constraint: Exposing the separator to temperatures exceeding 130°C may cause irreversible dimensional changes and loss of ion conductivity.
- Mechanical Stress Limit: Puncture forces above 450 gf or tensile stresses beyond the specified MD/TD values can fracture the coating layers and compromise battery safety.
- Electrolyte Compatibility: Only electrolytes that meet ISO 10993 chemical inertness standards should be used to avoid adverse reactions with the separator materials.
- Lamination Process: Automatic laminators must be calibrated to apply uniform pressure without distorting the separator's multilayer coating structure.
How does the 15±2 µm thickness with a 9 µm PE substrate and 6 µm single-side coating (Al₂O₃ + LATP) affect mechanical robustness and ionic conduction compared to double-side coated separators?
The separator achieves a puncture strength ≥450 gf and tensile strength MD ≥1800 kgf/cm², TD ≥1700 kgf/cm², attributed to the robust 9 µm PE substrate and 3 µm Al₂O₃ layer. The single-side coating leaves one PE surface uncoated, which reduces overall ionic path resistance but may create anisotropic conduction; the 3 µm LATP layer provides efficient lithium-ion transport. Thermal shrinkage at 130°C is MD ≤2% and TD ≤1%, demonstrating that the coating does not compromise high-temperature dimensional stability.
What specific automatic lamination equipment and cell formats are compatible with this 60 mm wide, 100 m roll separator?
The 60±0.5 mm width and roll format are designed for equipment such as the MSK-111A-ES laminator (handling 110mm×100mm cells), enabling continuous feeding for pouch and prismatic battery assembly. The separator's 15±2 µm thickness and flexibility allow it to pass through roller systems without tearing, but the single-side coating requires orientation: the coated side should face the electrode with the higher interfacial resistance to avoid short circuits. The 100 m length supports pilot-scale R&D without frequent roll changes.
What handling precautions are critical to preserve the integrity of the LATP ceramic coating and PE substrate during cell assembly?
The 3 µm LATP coating is ceramic and can crack under sharp bending or creasing; use the roll with gentle tension and avoid folding. Puncture strength ≥450 gf indicates good resistance to particulate damage, but the substrate shrinks ≤2% MD at 130°C, so process temperatures must stay below this threshold. Store the roll in its original 16in×8in×8in packaging under clean, dry conditions to prevent contamination and maintain the 44±5% porosity needed for consistent electrolyte wetting.
This single-sided dual-layer Al2O3/LATP coated PE separator provides a flexible solid electrolyte with enhanced safety and conductivity, but requires careful handling for roll format and single-side usage.
Positive
- Synergistic Dual-Layer Coating: The combination of Al2O3 for high-temperature stability and LATP for efficient lithium-ion conduction achieves an optimal balance of battery safety and electrochemical performance.
- Outstanding Mechanical Strength: With puncture strength ≥450gf and balanced MD/TD tensile strength, the separator withstands cell assembly stress without structural damage, ensuring consistent performance.
Trade-offs
- Roll-Only Sales Format: Exclusively supplied in 100m rolls, requiring end-users to cut to size for individual cell preparation, which may introduce dimensional variability and material waste in small-scale R&D work.
- Single-Sided Coating: Only one side of the PE substrate receives the Al2O3+LATP coating, potentially limiting application in symmetric cell designs where both sides require ionic conduction.
