Description

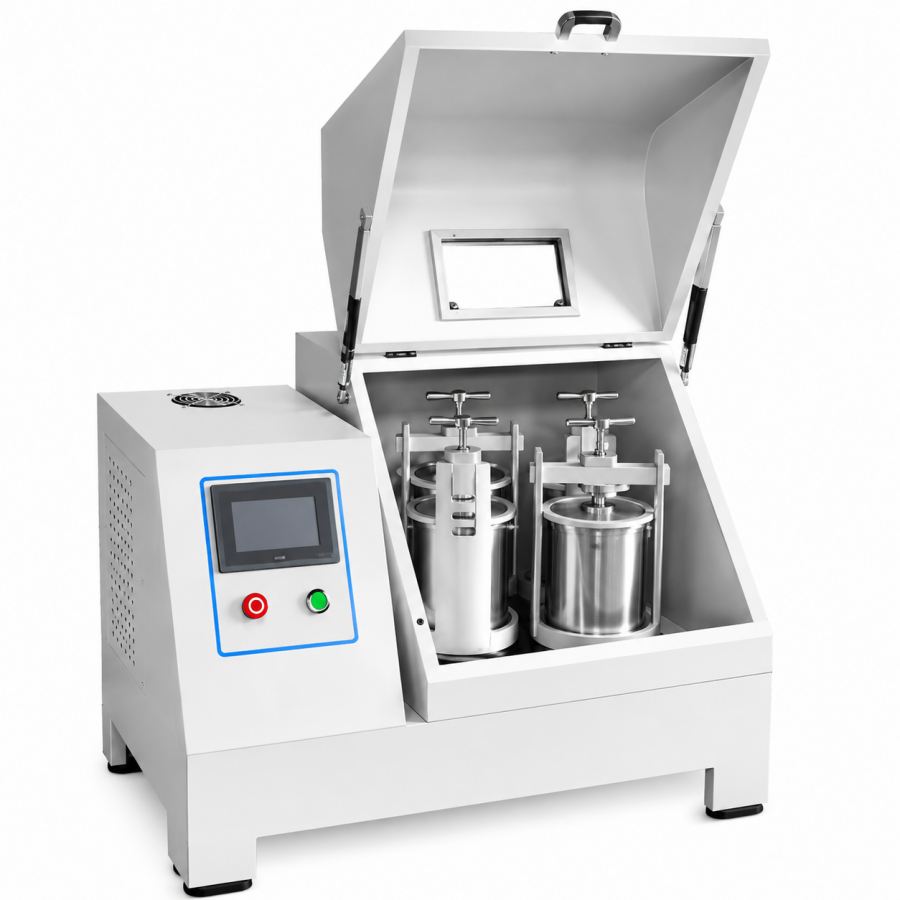

ATOMFAIR MPBM-16A TOUCHSCREEN PLANETARY BALL MILL PLC LAB GRADERESEARCH GRADE EQUIPMENT
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFair®
|
The MPBM-16A is a 205 kg semi-circular planetary ball mill with a 3 kW motor, requiring adequate floor support and a properly rated electrical supply. Jar and ball materials must be selected for compatibility with the target powder to avoid cross-contamination, and the PLC control system must be operated per the user manual for safe and reproducible grinding.
- Jar and Ball Material Compatibility: Select grinding jar and ball materials chemically compatible with the target powder to prevent cross-contamination and undesired reactions.
- Electrical and Mechanical Safety: Ensure the 3 kW motor is connected to a properly rated power source and the unit's 205 kg weight is supported on a stable, level surface.
- Control System Security: Use password protection on the PLC touchscreen to prevent unauthorized access and maintain program integrity.
- Operating Environment: Place the mill away from flammable materials and ensure adequate ventilation during wet or vacuum grinding to manage potential vapors or dust.
- Maintenance and Inspection: Inspect jar holders and fastening mechanisms before each run to ensure proper seating and avoid mechanical imbalance.
Follow these steps to safely configure and run a grinding protocol on the MPBM-16A. Always refer to the user manual for detailed safety and troubleshooting information.
Required Equipment: Grinding jars and balls of compatible material, PLC touchscreen control interface, User manual and maintenance tools
- Inspect Equipment Condition
Inspect the mill and verify that all jar holders, fasteners, and the touchscreen are in good condition. - Load Grinding Media
Select grinding jars and balls compatible with your target material and load them to approximately 40% jar capacity as recommended. - Configure PLC Program
Access the PLC touchscreen, enter the password, and create or recall a grinding program with forward/reverse rotation and timing parameters. - Secure and Start Mill
Secure the jars in the holders, close the lid, and confirm the safety interlocks are engaged before starting the motor. - Monitor and Complete Run
Monitor the real-time operation display and respond to any fault alarms; after completion, power down and remove jars.
What is the maximum jar rotation speed and motor power of the MPBM-16A, and how does the 3 kW motor affect grinding efficiency for hard ceramic materials?
The MPBM-16A achieves a jar rotation speed of 0–510 r/min driven by a 3 kW motor with a revolution diameter of Φ320 mm. The 3 kW motor provides sufficient torque to maintain consistent jar rotation under load, which is critical for grinding high-hardness materials such as alumina ceramics, zirconia ceramics, and WC-Co composites, where inadequate power can lead to stalled jars or prolonged processing times.
Can the MPBM-16A be integrated with existing glovebox or inert atmosphere systems for air-sensitive powder processing?
The MPBM-16A supports vacuum grinding mode, enabling operation under reduced atmosphere for air-sensitive materials. However, the unit is a semi-circular type with a 950 × 600 × 710 mm footprint and 205 kg weight, and it is not explicitly designed as a glovebox-integrated model. For direct glovebox compatibility, the MPBM-0.2S miniature glovebox unit is available, but the MPBM-16A can be used with external vacuum attachments or placed inside a larger glovebox if dimensions permit.
What are the infrastructure requirements for installing the MPBM-16A, including electrical and space considerations?
The MPBM-16A requires a 3 kW electrical supply and a floor area of approximately 950 × 600 mm with additional clearance for operation and maintenance. The unit weighs 205 kg, so a reinforced bench or floor mounting is recommended. The PLC touchscreen control system with password protection and fault alarming requires standard laboratory power conditioning to avoid data loss or program corruption during power fluctuations.
The MPBM-16A is a semi-circular planetary ball mill with a 3 kW motor, 0–510 rpm jar speed, and PLC touchscreen control supporting programmable protocols, bidirectional rotation, and power-off memory. It requires separate purchase of grinding jars and media, and its 205 kg weight necessitates robust installation.
Positive
- PLC touchscreen with program management: The integrated capacitive touch PLC system supports password-protected access, multi-program editing with storage and recall, real-time operation monitoring, and automatic fault alarm for enhanced process security and reproducibility.
- Bidirectional rotation with power-off memory: Forward and reverse rotation control with precise timing functions and automatic memory retention of operational parameters after power interruption ensures consistent grinding protocols across experimental campaigns.
Trade-offs
- Grinding jars and media ordered separately: The main unit does not include grinding jars or balls; users must select compatible materials from eight jar options and seven ball options to avoid cross-contamination, adding procurement complexity.
- Heavy unit requiring robust installation: At 205 kg net weight and dimensions of 950×600×710 mm, the mill demands adequate floor space and handling equipment for installation and relocation.
