YSZ ZIRCONIA PLANETARY MILL JAR 50ML-5L MOHS 8.5 HIGH-PURITY NANO GRINDRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
The YSZ jar must be paired with a planetary ball mill whose clamp dimensions match the jar's outer diameter and height. For 4 L and 5 L stainless-steel-jacketed jars, confirm clamp compatibility before ordering to avoid mechanical interference.
- Clamp Compatibility Verification: Confirm that the planetary mill's clamp dimensions accommodate the jar's outer diameter and total height, especially for 4 L and 5 L stainless-steel-jacketed variants.
- Vacuum Sealing Infrastructure: For inert atmosphere oxygen-free grinding, the jar requires vacuum sealing components and a compatible vacuum pump connection.
- Chemical Compatibility Check: Verify that the grinding media and material are chemically compatible with the jar's dense YSZ structure to prevent degradation or contamination.
How does the wear resistance and toughness of YSZ zirconia planetary mill jars compare to alumina jars for high-purity nano grinding?
YSZ jars offer significantly higher toughness due to phase-transformation toughening and ultra-low wear rates, with hardness Mohs 8.5 and Vickers HV≥1250. This yields far superior service life under continuous ultrafine grinding compared to alumina jars, while maintaining zero heavy metal contamination.
What are the critical compatibility considerations when selecting a 4L or 5L YSZ jar for a planetary ball mill?
The 4L and 5L jars feature outer stainless steel jackets for impact resistance. Before ordering, confirm that your planetary mill's clamp dimensions can accommodate the outer diameter (205 mm for 4L, 192 mm for 5L) and total height (231 mm for 4L, 254 mm for 5L) to ensure proper fit and safe operation.
What additional equipment is required to perform oxygen-free grinding with YSZ jars?
Optional vacuum sealing components are available for inert atmosphere (N₂/Ar) grinding. A compatible vacuum pump connection is required to evacuate and backfill the jar. Contact the manufacturer for custom vacuum-sealed jar configurations.

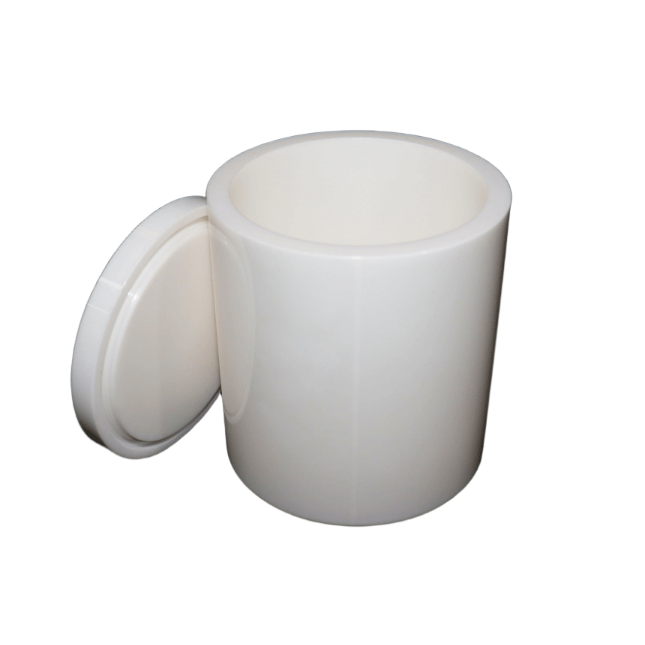

The Atomfair YSZ Zirconia Planetary Mill Jar (50ml–5L) is a high-density yttria-stabilized zirconia grinding vessel (6.0 g/cm³, Mohs 8.5, HV≥1250) designed for ultra-low wear and zero heavy metal contamination in nano-grinding applications. Its sintered, pore-free structure provides superior chemical resistance to acids, alkalis, and solvents, while the 4L and 5L variants include stainless steel jackets for enhanced impact resistance, though compatibility with planetary mill clamps must be verified for these larger sizes.
Positive
- Ultra-low contamination for sensitive materials: Non-metallic YSZ ceramic releases virtually no impurities during grinding, with zero heavy metal release, making it the industry-standard jar for lithium battery materials (NCM, LFP, Si-C anode), MLCC electronic ceramics, and pharmaceutical powders where metal contamination is unacceptable.
- High wear resistance and toughness: Hardness of Mohs 8.5 and Vickers HV≥1250 combined with phase-transformation toughening delivers wear life and impact resistance far superior to alumina jars, ensuring exceptionally long service life under continuous ultrafine grinding.
Trade-offs
- Large jar clamp compatibility required: 4 L and 5 L stainless-steel-jacketed jars require confirmation of compatibility with the planetary mill's clamp dimensions before ordering, as standard clamps may not accommodate the outer jacket.
- Vacuum sealing requires additional equipment: Optional vacuum sealing components for inert atmosphere grinding require compatible vacuum pump connections, adding infrastructure and setup complexity for oxygen-free processing.
