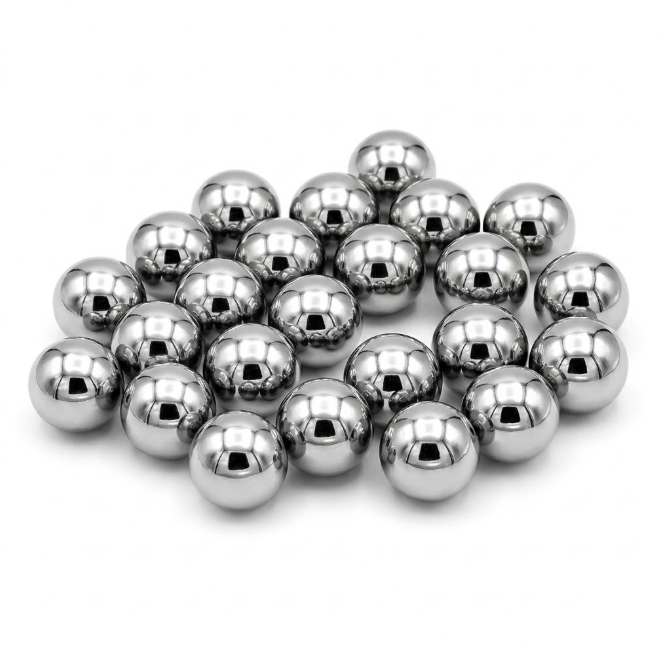

Cemented Carbide Grinding Balls Φ1mm to Φ30mm

Cemented Carbide Grinding Balls 1-30mm WC-Co

$520.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

ATOMFAIR cemented carbide grinding balls, WC-Co, Φ1–30mm. HRA 88–93, density 14.5–15.0 g/cm³, top wear resistance. For ultrafine grinding of SiC, quartz & super-hard materials. Default 5mm, 1kg.

Category: ,
Tags:
Brands:

Description

CEMENTED CARBIDE GRINDING BALLS 1-30MM WC-CO

LABORATORY CONSUMABLES

Product Introduction
Cemented carbide balls, commonly known as tungsten carbide balls, are beads made of cemented carbide. Featuring high hardness, wear resistance, corrosion resistance and bending resistance, they can perform reliably in harsh conditions and replace steel balls.

Product Features
  • Composed mainly of tungsten-cobalt alloy (WC-Co), they offer high hardness and excellent wear resistance, with better toughness than YG6 carbide balls and strong impact and vibration resistance. They are also used as punching balls or extrusion balls for high-impact parts.
  • High density up to 15.1 g/cm³, low porosity, outstanding wear and corrosion resistance, service life dozens of times longer than ordinary tungsten steel balls.
  • High precision with tolerance within 0.001 mm, smooth surface free of pitting, and enhanced surface treatment not available from most manufacturers.
  • Support small-batch production; our process enables production of only 3 pieces while ensuring roundness.

Technical Parameters
Parameter Specification
Diameter Φ1 mm – Φ30 mm
Main Components Sintered from WC, Co, etc.
Density (g/cm³) 14.5 – 15.0
Hardness Extremely high, HRA 88–93
Wear Resistance (Wear Rate) Premium, extremely low wear rate at the 10⁻⁹ g/h level
Contamination Risk Low, almost no self-wear
Main Application Fields Ultra-fine grinding of super-hard and high-value-added materials, such as silicon carbide, high-purity quartz, and cemented carbide powder.

Default Order: Diameter 5mm, Weight 1kg. For other sizes, please contact inquiry@atomfair.com to place your order.

* The above parameters are for reference only. Actual specifications shall prevail; customized parameters are available for special requirements.
