Description

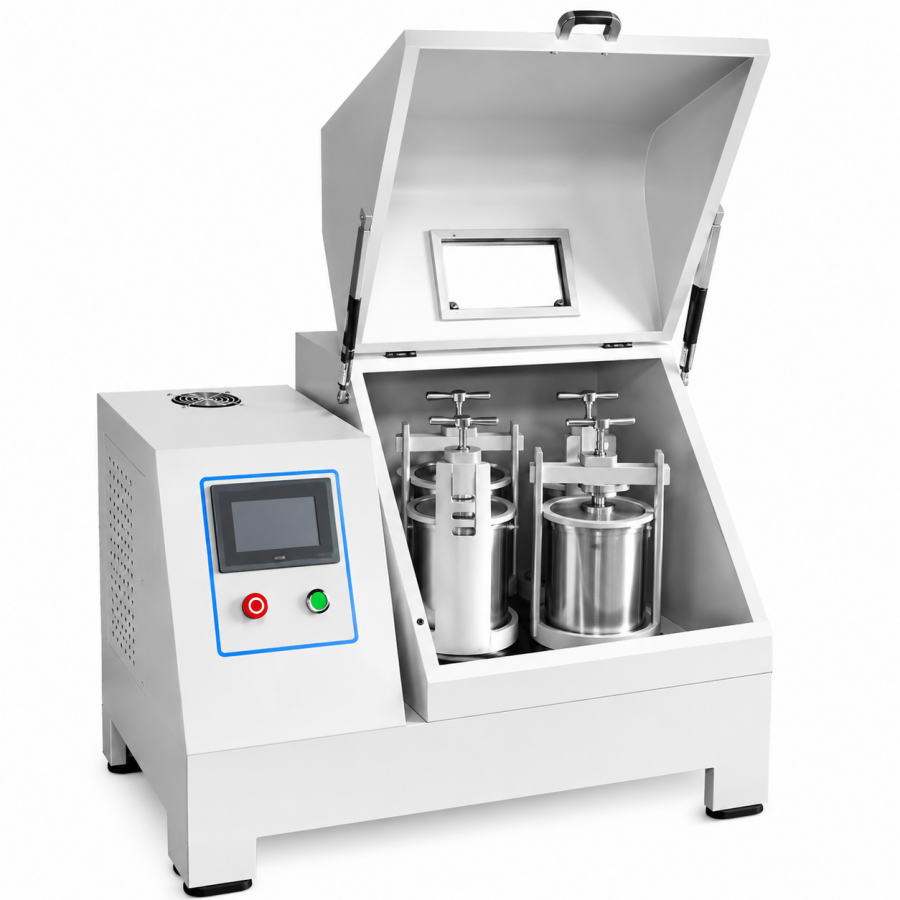

ATOMFAIR MPBM-4A TOUCHSCREEN PLANETARY BALL MILL PLC LAB GRADERESEARCH GRADE EQUIPMENT
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFair®
|
The MPBM-4A planetary ball mill must be operated with grinding jars and media that are chemically and mechanically compatible with the target material to prevent cross-contamination and equipment damage. The PLC control system requires password protection and proper electrical grounding to ensure safe and reproducible operation.
- Jar and Media Compatibility: Select jar and ball materials that are chemically inert with respect to the target material to prevent contamination.
- Balanced Loading: Ensure the grinding jars are symmetrically loaded to balance the centrifugal forces during operation.
- Access Control: Use the password protection feature to prevent unauthorized changes to grinding protocols.
- Seal Integrity: Regularly inspect the jar seals for wear when performing wet or vacuum grinding to avoid leaks.
Safe operation of the planetary ball mill requires proper selection and installation of grinding jars and media followed by programming the PLC touchscreen control. The following steps outline the standard initialization and grinding procedure.
Required Equipment: Grinding jar set (ordered separately), Grinding media (ordered separately), PLC touchscreen control interface
- Inspect the Main Unit
Inspect the main unit for any visible damage or loose components before operation. - Select Compatible Jars and Media
Select appropriate grinding jars and media based on the target material's chemical compatibility and desired particle size. - Install the Jars
Place the grinding jars onto the jar holders and ensure they are securely fastened. - Program the Control System
Set the desired rotation speed, direction, and grinding duration using the PLC touchscreen interface. - Activate Password Protection
Activate the password protection to lock the program parameters before starting. - Start the Grinding Cycle
Start the mill and monitor the operation via the real-time display for any fault alarms. - Retrieve the Product
After completion, allow the mill to come to a complete stop before removing the jars.
How does the MPBM-4A's 0.75 kW motor and 1 L jar capacity compare to larger models for scaling from research to production?
The MPBM-4A features a 0.75 kW motor and a 134 mm jar holder inner diameter, accommodating four 1 L jars for research-scale grinding. For production scaling, the MPBM series includes models up to the MPBM-200 with a 22 kW motor and 460 mm jar ID, enabling significantly higher throughput. The semi-circular design and PLC touchscreen control of the MPBM-4A are optimized for reproducible R&D applications.
What jar and ball material combinations are recommended for contamination-free grinding of electronic ceramics in the MPBM-4A?
For electronic ceramics such as alumina or zirconia, the description recommends selecting jar and ball materials compatible with the target to avoid cross-contamination. Available jar materials include Al₂O₃, YSZ, WC-Co, Agate, SS, PU, Ceramic, and Nylon; ball materials include Al₂O₃, YSZ, WC-Co, Agate, SS, and IC-PU. Using Al₂O₃ jars with Al₂O₃ balls or YSZ jars with YSZ balls provides high-purity, low-contamination grinding for these materials.
What safety and operational features does the MPBM-4A's PLC touchscreen system provide to ensure reliable grinding protocols?
The PLC touchscreen system includes password-protected access, multi-program editing with storage and recall, real-time operation monitoring, and automatic fault alarming. Bidirectional rotation with timing and power-off memory ensures protocol consistency after interruptions. The description also notes that installation guidance and operational training support are provided upon request, and operators must consult the user manual before first use.
The MPBM-4A semi-circular planetary ball mill integrates a PLC touchscreen control system with capacitive sensitivity, password protection, multi-program editing, and fault alarm monitoring, enabling reproducible dry, wet, and vacuum grinding protocols for advanced powder processing. Its 0.75 kW motor delivers 0–670 r/min jar rotation with bidirectional control and power-off memory, but the main unit requires separate purchase of grinding jars and media, and the 85 kg weight demands dedicated lab infrastructure for installation.
Positive
- PLC touchscreen with program management: The integrated capacitive touch PLC system supports password-protected access, multi-program editing with storage and recall, real-time operation monitoring, and automatic fault alarm, enhancing process security and reproducibility across grinding campaigns.
- Bidirectional rotation with power-off memory: Forward and reverse rotation control with precise timing and automatic memory retention of operational parameters after power interruption ensures consistent grinding protocols without manual re-entry.
Trade-offs
- Grinding jars and media ordered separately: The main unit does not include grinding jars or balls; these must be purchased separately from available materials (WC-Co, Al₂O₃, Agate, YSZ, SS, PU, Ceramic, Nylon for jars; WC-Co, Al₂O₃, Agate, YSZ, SS, IC-PU for balls), adding upfront procurement steps and compatibility considerations.
- 85 kg weight requires dedicated installation: At 85 kg net weight with dimensions 760 × 470 × 600 mm, the unit requires a stable, level lab bench or floor mounting and may need assistance for positioning, limiting portability and demanding adequate lab infrastructure.
