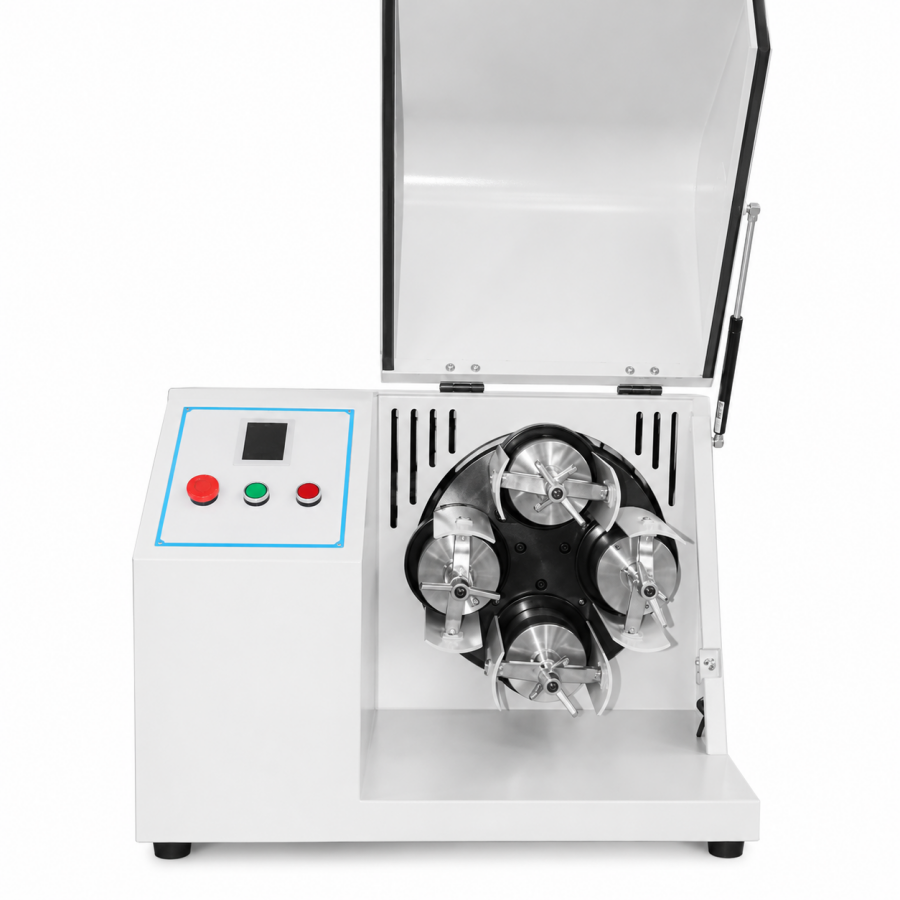

HPBM-(2-6) HEAVY-DUTY HORIZONTAL PLANETARY BALL MILL 0.75KWLABORATORY GRADE EQUIPMENT
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This planetary ball mill requires compatible grinding jars and balls (ordered separately) with a jar holder inner diameter of 134 mm and maximum jar rotation speed of 670 rpm. The mill must be operated on a stable surface, and the brake locking mechanism must be engaged before discharging the grinding jars.
- Jar compatibility: Only jars with 134 mm inner diameter holder and 0.5 L or 1.5 L capacity are compatible.
- Speed limit: Jar rotation speed must not exceed 670 rpm.
- Safety brake: The brake locking mechanism must be activated before opening the discharge screen.
- Weight handling: The mill weighs 96 kg and requires proper support and handling during installation.
Select the appropriate jar size and material, then fill jars with grinding balls to 40% capacity. Set the control parameters on the microcomputer touch system and engage the brake before discharging.
Required Equipment: HPBM-(2-6) Heavy-Duty Horizontal Planetary Ball Mill
- Select jar size and material
Select the appropriate jar size (0.5 L or 1.5 L) and material (e.g., Al₂O₃, YSZ, agate) based on your grinding application. - Fill jars with grinding balls
Fill each jar with grinding balls to approximately 40% of its capacity, ensuring even distribution. - Set operating parameters
Set the desired operation parameters on the microcomputer touch control system, including rotation speed, timing, and forward-reverse cycle. - Engage brake before discharging
Engage the brake locking mechanism before opening the discharge screen to safely unload the jars.
What is the maximum grinding capacity of the HPBM-(2-6) planetary ball mill and how does the drive ratio influence the milling performance?
The HPBM-(2-6) accommodates up to 4 × 1.5 L jars for a total capacity of 6 L. It operates with a drive ratio of 0.134 and a jar rotation speed range of 0–670 rpm, which together determine the effective centrifugal force and impact energy transferred to the grinding media. The dual-end double disc support frame and precision alloy transmission gears ensure stable high-speed running, critical for achieving fine particle sizes in materials like lithium battery powders and electronic ceramics.
Which jar materials are available for the HPBM-(2-6) and which are recommended for contamination-sensitive applications such as trace element analysis?
The HPBM-(2-6) is compatible with jars made from WC-Co, Al₂O₃, Agate, YSZ, stainless steel, PU, ceramic, and nylon. For zero-metal analysis, agate jars (natural SiO₂) are recommended as they avoid metallic contamination. For high-hardness materials, WC-Co or YSZ jars provide superior wear resistance. Grinding jars and balls are ordered separately and must be selected based on sample chemistry and target purity.
What safety and operational features does the HPBM-(2-6) include to protect users during high-speed milling?
The HPBM-(2-6) is equipped with an integrated lifting and screen discharging mechanism with a brake locking safety function to prevent accidental jar release during operation. The microcomputer touch control system supports forward-reverse cycling, timing, and power-off memory, allowing safe automated runs. The thickened steel plate cabinet and CNC machined heat-treated parts contribute to structural stability and noise reduction during high-speed milling.
HPBM-(2-6) heavy-duty horizontal planetary ball mill (0.75 kW) with dual-end support frame and microcomputer control, offering stable grinding for pilot-scale batches up to 6 L, though jars and media are sold separately.
Positive
- Sturdy dual-end support frame design: The dual-end double disc support frame structure enhances overall rigidity, load capacity, and operational stability compared to light horizontal planetary mills, enabling consistent grinding performance.
- Intelligent microcomputer control system: The touch control system supports forward-reverse cycle operation, timing, and power-off memory, allowing automated and reproducible milling protocols.
Trade-offs
- Jars and media purchased separately: Grinding jars and balls are not included with the main unit, requiring additional procurement and compatibility checks for specific materials.
- Limited to small-batch production: With a 0.75 kW motor and total jar capacity up to 6 L, the mill is designed for pilot trials and small-batch grinding, not for large-scale production.
