Product Overview

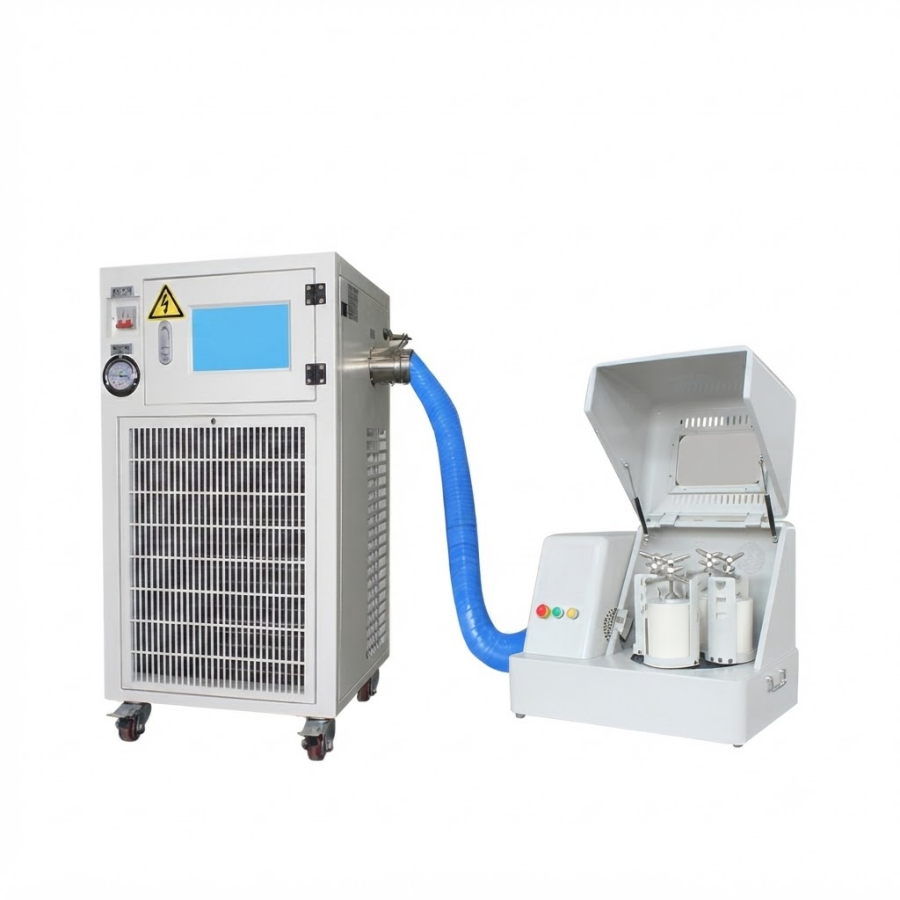

ATOMFAIR CPM-(8-12)A Cryogenic Planetary Ball Mill – key parameters: 1.5 kW gear-drive motor, 0–580 r/min (1:1.5) jar rotation, 275 mm revolution diameter, 162 mm jar holder ID, compatible with 4 × 2 L jars (total 8 L) or 4 × 3 L jars (total 12 L), output down to 0.1 μm, integrated 3P air-cooled refrigeration unit maintains 5–15°C.
The CPM-(8-12)A combines a planetary ball mill with an air-cooled refrigeration unit based on compressor-type cooling principles. During high-speed grinding, most materials generate temperature rise through friction and exothermic reactions, which can alter physicochemical properties and compromise grinding results. This cryogenic planetary ball mill is specifically designed for low-temperature ultrafine grinding research and small-batch production where strict temperature control is critical. The air-cooled refrigeration gear drive system rapidly removes grinding-generated heat through cold air circulation, stably maintaining the grinding chamber temperature between 5–15°C depending on ambient temperature differential. The gear-driven transmission supports simultaneous operation of 4 grinding jars, compatible with 2 L or 3 L jars to accommodate different batch size requirements. This listing is priced for the CPM-(8-12)A main unit only—grinding jars and grinding balls are ordered separately. The CPM series spans from 0.2 L miniature models to 200 L production units with integrated cryogenic temperature control.

CPM Series Full Model Specifications

No.	Model	Type	Rotation (rpm)	Jar ID (mm)	Motor	Rev Dia (mm)	Dimensions (mm)	Weight (kg)	Air Cooler
1	CPM-0.2	Mini	0–1160	50	90 W	Φ111	420×260×310	25	2P
2	CPM-0.2S	Mini Glovebox	0–1160	50	90 W	Φ111	Host: 390×220×270 Control: 200×180×240	29	2P
3	CPM-0.4A	Semi-Circular	0–870	80	250 W	Φ140	530×300×360	34	2P
4	CPM-6	Standard	0–670	134	0.75 kW	Φ234	760×470×580	100	2P
5	CPM-4A	Semi-Circular	0–670	134	0.75 kW	Φ234	760×470×600	85	2P
6	CPM-(8-12)	Standard	0–580	162	1.5 kW	Φ275	900×600×640	168	3P
7	CPM-(8-12)A	Semi-Circular	0–580 (1:1.5)	162	1.5 kW	Φ275	880×560×642	150	3P
8	CPM-16A	Semi-Circular	0–510	182	3 kW	Φ320	950×600×710	205	3P
9	CPM-20	Standard	0–430	222	4 kW	Φ385	1200×790×930	392	3P
10	CPM-40	Standard	0–390	250	5.5 kW	Φ430	1400×880×1070	656	3P
11	CPM-60	Standard	0–260 (1:1.5)	275	7.5 kW	Φ490	1600×1070×1250	950	3P
12	CPM-100	Standard	0–240 (1:1.5)	326	11 kW	Φ578	1750×1140×1330	1300	5P
13	CPM-200	Standard	0–215	460	22 kW	Φ738	2670×1600×2804	2725	5P

Standard Configuration List

Item	Configuration Description
Main Grinding Unit (Included in Price)	1 pc
Grinding Jars (Order Separately)	Compatible with 4 × 2 L jars (total 8 L) or 4 × 3 L jars (total 12 L) Available Materials: WC-Co · Al₂O₃ · Agate · YSZ · SS · PU · Ceramic · Nylon
Grinding Balls (Order Separately)	40% of the jar capacity Available Materials: WC-Co · Al₂O₃ · Agate · YSZ · SS · IC-PU
Cooling System (Included in Price)	Integrated 3P Air-Cooled Refrigeration Unit with Compressor-Based Cooling

Key Features & Advantages

Integrated Air-Cooled Refrigeration with 5–15°C Temperature Stability: The compressor-based cooling system rapidly removes frictional and exothermic reaction heat via cold air circulation, stably maintaining the grinding chamber within the 5–15°C range for temperature-sensitive materials processing.
Gear-Driven Transmission with Brand Inverter Stepless Speed Control: The gear drive system delivers robust torque transmission for heavy grinding loads, while the brand-name inverter enables precise stepless speed regulation across the full operational range for optimized grinding parameters.
Ultrafine Output Down to 0.1 μm with High Loading Capacity: The planetary motion achieves final particle sizes as fine as 0.1 μm depending on material and process parameters, with maximum loading of two-thirds jar volume for efficient batch processing.
Flexible Jar Compatibility – 2 L or 3 L Jars: The CPM-(8-12)A supports 4 standard 2 L jars (total 8 L) or 4 standard 3 L jars (total 12 L), providing versatility to adapt to different batch size requirements while maintaining consistent cryogenic temperature control across all jars.

APPLICATION SCOPE: Widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical engineering, light industry, pharmaceuticals, and environmental protection for temperature-sensitive materials. Specifically suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, phosphors, long-afterglow luminescent powders, rare-earth polishing powders, electronic glass powders, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, multilayer ceramic capacitors (MLCC), thermistors (PTC, NTC), dielectric ceramics, alumina ceramics, zirconia ceramics, zinc oxide powders, cobalt oxide powders, nickel-zinc ferrites, and manganese-zinc ferrites where low-temperature grinding is critical for preserving material properties.

PACKAGING: This listing is priced for the CPM-(8-12)A main unit only. The standard configuration includes 1 pc grinding host machine with integrated air-cooled refrigeration unit (3P compressor), brand-name inverter speed control, and gear drive transmission. Grinding jars: compatible with 4 × 2 L jars (total 8 L) or 4 × 3 L jars (total 12 L) – ordered separately. Grinding balls are also ordered separately. The CPM series is available from 0.2 L miniature models through 200 L production units. Installation guidance and operational training support are provided upon request.

IMPORTANT NOTICE: The listed price is for the main unit; grinding jars and balls must be ordered separately. Select jar and ball materials compatible with your target material to avoid cross-contamination. The refrigeration unit requires adequate ventilation space around the equipment for optimal cooling performance. The temperature control range of 5–15°C is dependent on ambient temperature conditions—maintain a stable laboratory environment for consistent results. For detailed installation, operation, and maintenance instructions, consult the user manual prior to first use. If you have specific requirements for other CPM models or custom configurations, please contact us at inquiry@atomfair.com.

TAILORED SOLUTIONS FOR RESEARCH

Contact our engineering team for technical support or official quotations.

EMAIL: inquiry@atomfair.com

Manufacturer: Atomfair LLC

Brand: ATOMFair®

The integrated air-cooled refrigeration maintains the grinding chamber between 5–15°C, dependent on ambient laboratory conditions. The equipment requires adequate ventilation space and selection of compatible jar and ball materials to avoid cross-contamination.

Temperature Stability: Grinding chamber temperature stability depends on ambient laboratory conditions; maintain a stable environment for consistent results.
Ventilation Requirement: The refrigeration unit requires adequate ventilation space around the equipment for optimal cooling performance.
Material Compatibility: Select jar and ball materials compatible with the target material to avoid cross-contamination.
Jar and Ball Procurement: Grinding jars and balls are ordered separately and must be compatible with the CPM-(8-12)A jar holder dimensions (162 mm ID).
Pre-Operation Manual: Consult the user manual for detailed installation, operation, and maintenance instructions prior to first use.

HowTo

The following steps describe the initialization and safe handling of the cryogenic planetary ball mill. Prior to operation, ensure all components are compatible and the equipment is properly positioned.

Required Equipment: Grinding jars (2 L or 3 L, compatible with jar holder), Grinding balls (40% jar capacity, material matched to sample)

Consult Manual
Consult the user manual for complete installation, operation, and maintenance instructions before first use.
Position Equipment
Position the mill in a well-ventilated area with adequate clearance for the refrigeration unit.
Select and Install Jars and Balls
Select and install grinding jars and balls that are compatible with the target material and jar holder dimensions.
Load Material
Load the grinding jars with the target material and grinding balls, filling no more than two-thirds of the jar volume.

FAQ

What is the effective temperature control range of the CPM-(8-12)A cryogenic planetary ball mill, and how does ambient temperature affect it?

The integrated 3P air-cooled refrigeration unit maintains the grinding chamber between 5–15°C, but this range is dependent on ambient temperature conditions. The source states that stable temperature control requires a stable laboratory environment for consistent results, and adequate ventilation space around the equipment is necessary for optimal cooling performance.

Which jar materials are compatible with the CPM-(8-12)A for contamination-sensitive grinding applications?

The CPM-(8-12)A is compatible with 4×2L or 4×3L jars in materials including WC-Co, Al₂O₃, Agate, YSZ, stainless steel, polyurethane, ceramic, and nylon. The source explicitly advises selecting jar and ball materials compatible with your target material to avoid cross-contamination, and these jars are ordered separately.

What are the infrastructure requirements for installing the CPM-(8-12)A cryogenic ball mill?

The main unit weighs 150 kg and measures 880×560×642 mm. The integrated 3P air-cooled refrigeration unit requires adequate ventilation space around the equipment for optimal cooling performance. The source also notes that the temperature control range depends on ambient conditions, so a stable laboratory environment is recommended.

Assessment

The CPM-(8-12)A cryogenic planetary ball mill integrates a 3P air-cooled refrigeration unit to maintain 5-15°C grinding chamber temperature, critical for preserving physicochemical properties of temperature-sensitive materials. The gear-drive system with inverter speed control provides precise 0-580 rpm regulation and supports 4 x 2L or 4 x 3L jars for batch flexibility.

Positive

Integrated cryogenic temperature control: Air-cooled compressor-based refrigeration system maintains stable 5-15°C grinding chamber temperature, preventing heat-induced alteration of physicochemical properties during high-speed grinding.
Gear drive with stepless speed control: Gear-driven transmission provides robust torque for heavy loads, and brand inverter enables precise stepless speed regulation across 0-580 rpm for optimized grinding parameters.

Trade-offs

Ambient temperature dependency: The 5-15°C temperature control range depends on ambient laboratory conditions; stable environmental temperature is required for consistent performance.
Separate jar and media procurement: Grinding jars and balls are not included and must be ordered separately; careful material selection is needed to avoid cross-contamination with target samples.
