ATOMFAIR CPM-4A CRYOGENIC PLANETARY BALL MILL 5-15°C LOW-TEMP GRINDINGRESEARCH & PRODUCTION GRADE EQUIPMENT
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFair®
|
This equipment presents electrical, mechanical, and cryogenic hazards requiring strict adherence to safety protocols. The grinding chamber temperature must be maintained between 5–15°C with adequate ventilation and only compatible jar materials used to prevent cross-contamination.
- Electrical and Mechanical Safety: Before operation, verify the main unit is properly grounded and all guards are in place to prevent contact with rotating parts during high-speed grinding.
- Cooling System and Ventilation: Provide adequate ventilation space around the air-cooled refrigeration unit to ensure stable chamber temperature and avoid compressor overheating.
- Jar and Media Compatibility: Select grinding jar and ball materials that are chemically inert to the target material to avoid contamination and equipment degradation.
- Loading Limits: Load each jar to a maximum of two-thirds of its volume to maintain proper planetary motion and prevent mechanical overload.
- Ambient Temperature Dependence: Operate in a stable laboratory environment since the 5–15°C setpoint is relative to ambient conditions for consistent temperature control.
This procedure describes the safe setup and operation of the CPM-4A cryogenic planetary ball mill for temperature-sensitive materials. Proper selection of grinding media, loading volume, and temperature monitoring are critical to prevent damage and achieve ultrafine grinding.
Required Equipment: ATOMFAIR CPM-4A Cryogenic Planetary Ball Mill Main Unit, Grinding Jars (1 L, material compatible with sample), Grinding Balls (material compatible with sample)
- Inspect and Position the Mill
Inspect the main unit for shipping damage and place it on a level, stable surface with adequate ventilation around the refrigeration unit. - Select Compatible Grinding Media
Choose grinding jars and balls made of materials chemically compatible with your target sample to avoid contamination. - Load Jars with Material and Media
Load each jar with the sample and grinding balls to a maximum of two-thirds of the jar volume to allow proper planetary motion. - Secure Jars and Set Speed
Securely fasten the loaded jars onto the planetary holders and set the desired rotation speed using the inverter controller, starting at a low speed. - Monitor Temperature and Adjust
Monitor the grinding chamber temperature during operation and pause or adjust speed if the temperature exceeds 15°C to protect sensitive materials.
How does the CPM-4A's 0.75 kW gear-drive motor and 0–670 rpm speed range affect its ability to achieve 0.1 μm particle size while maintaining 5–15°C grinding temperature?
The gear-drive system delivers robust torque for heavy grinding loads, and the brand inverter enables stepless speed regulation across the full 0–670 rpm range (1:1.5 jar rotation ratio) to optimize grinding parameters. The planetary motion can achieve final particle sizes down to 0.1 μm depending on material and process parameters, while the integrated 2P air-cooled refrigeration unit rapidly removes frictional and exothermic heat to stably maintain the grinding chamber between 5–15°C. However, actual throughput and fineness involve a trade-off between rotor speed, jar material heat conductivity, and the ambient temperature differential—the manufacturer states that output depends on material and process parameters.
What are the critical compatibility requirements for selecting grinding jars and balls for the CPM-4A when processing lithium cobalt oxide or other battery materials to avoid cross-contamination and ensure optimal low-temperature performance?
The CPM-4A requires 4 pieces of 1 L grinding jars fitting a 134 mm jar holder ID, and grinding balls that occupy 40% of jar capacity. Jar materials available include WC-Co, Al₂O₃, Agate, YSZ, SS, PU, Ceramic, and Nylon; matching the jar material to the target material is critical to avoid cross-contamination. For lithium cobalt oxide, Al₂O₃ or YSZ jars are typically recommended to prevent metal ion leaching, and the grinding balls must be selected from the same material family. The refrigeration unit's 5–15°C stability is maintained only when the ambient temperature differential is favorable and the unit has adequate ventilation.
What ventilation and ambient temperature conditions are required for the CPM-4A's integrated air-cooled refrigeration unit to reliably maintain 5–15°C grinding chamber temperature?
The 2P air-cooled refrigeration unit requires adequate ventilation space around the equipment to dissipate compressor heat effectively. The product documentation states that the temperature control range of 5–15°C is dependent on the ambient temperature differential, so a stable laboratory environment with consistent ambient temperature is necessary for reproducible results. The unit should not be placed in enclosed spaces without airflow, and installation guidance with operational training is available upon request to ensure proper setup.

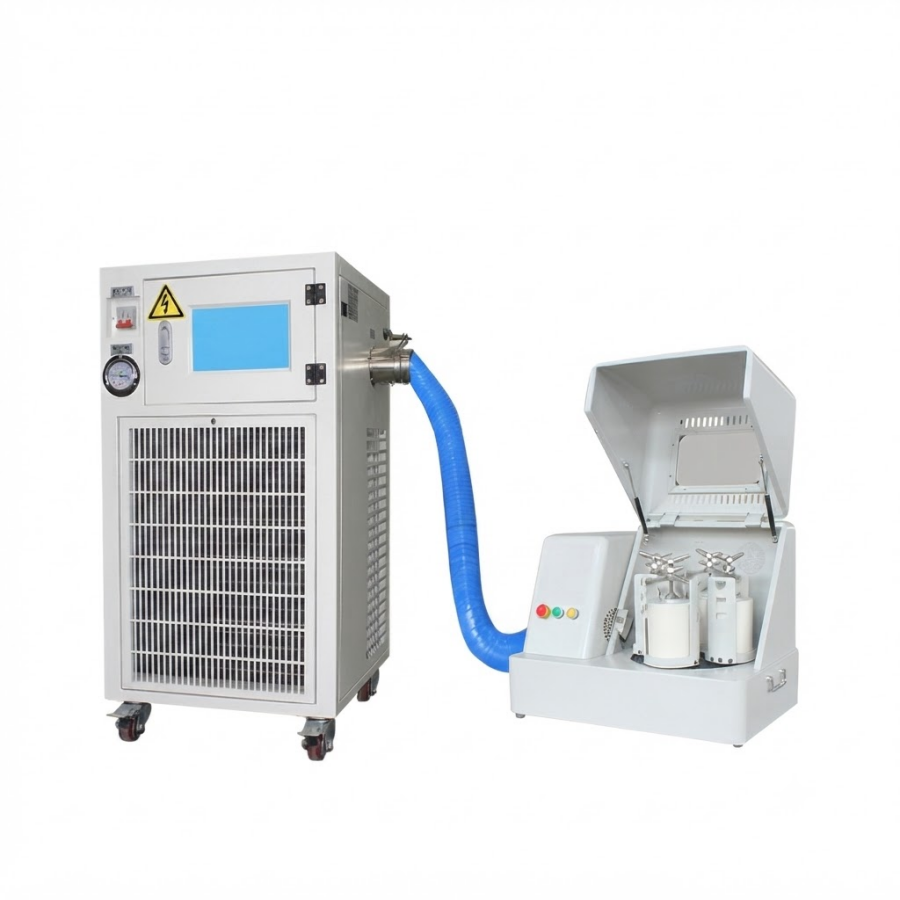

The Atomfair CPM-4A is a 4 L cryogenic planetary ball mill with integrated 2P air-cooled refrigeration maintaining 5–15°C, gear-drive transmission, and stepless speed control up to 670 r/min, capable of reducing particle size down to 0.1 μm. Note that jars and media are sold separately, and cooling performance is sensitive to ambient temperature and ventilation.
Positive
- Integrated cryogenic cooling 5–15°C: The compressor-based air-cooled refrigeration system rapidly removes grinding heat, stably maintaining chamber temperature between 5–15°C for temperature-sensitive materials processing.
- Gear drive with inverter speed control: The gear-drive transmission delivers robust torque for heavy loads, while the brand-name inverter enables precise stepless speed regulation across the full 0–670 r/min range for optimized grinding parameters.
Trade-offs
- Jars and media sold separately: Grinding jars and balls are not included with the main unit; users must select and purchase compatible jar and ball materials separately to avoid cross-contamination.
- Cooling dependent on ambient conditions: The 5–15°C temperature range is dependent on ambient temperature differential; the unit requires adequate ventilation space for optimal cooling performance, and a stable laboratory environment is needed for consistent results.
