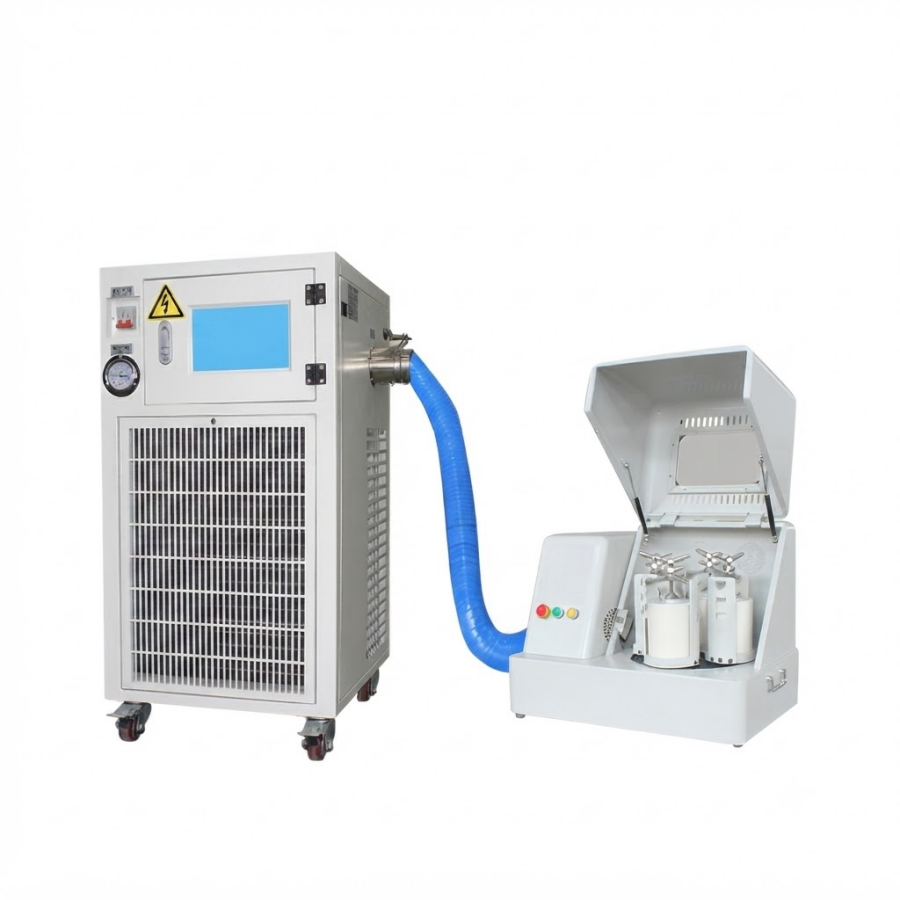

ATOMFAIR CPM-0.2S CRYOGENIC PLANETARY BALL MILL 5-15°C LOW-TEMP GRINDINGRESEARCH GRADE EQUIPMENT
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFair®
|
The CPM-0.2S requires stable ambient laboratory conditions and adequate ventilation around the refrigeration unit for optimal 5–15°C temperature control. Grinding jar and ball materials must be selected to prevent cross-contamination, and the equipment is compatible with glovebox operation for air-sensitive samples.
- Temperature Control Constraint: The integrated air-cooled refrigeration unit maintains 5–15°C only if ambient temperature differential is stable and ventilation is unobstructed around the equipment.
- Material Compatibility Constraint: Select jar and ball materials (WC-Co, Al2O3, Agate, YSZ, SS, PU, Ceramic, Nylon) that are chemically compatible with the target sample to avoid cross-contamination and preserve sample purity.
- Loading Constraint: Sample material loading must not exceed two-thirds of jar volume, and grinding balls should occupy 40% of jar capacity for optimal milling efficiency and to prevent overloading.
- Glovebox Integration Constraint: The compact design supports glovebox operation for air-sensitive and moisture-sensitive materials, requiring an inert atmosphere setup to prevent sample degradation.
This procedure covers the initial setup and safe operation of the CPM-0.2S for low-temperature grinding. Follow these steps to ensure proper jar and ball selection, loading, and temperature monitoring.
Required Equipment: Cryogenic Planetary Ball Mill (CPM-0.2S), Grinding Jars (sold separately, 0.05 L each), Grinding Balls (sold separately, 40% jar capacity)
- Inspect the refrigeration unit
Inspect the air-cooled refrigeration unit and ensure unobstructed ventilation around the equipment for stable cooling performance. - Select compatible jar and ball materials
Select grinding jar and ball materials that are chemically compatible with the target sample to avoid cross-contamination. - Load jars with balls and sample
Load grinding balls to 40% of each jar's capacity, then add sample material up to two-thirds of the jar volume. - Seal and mount jars
Seal the jars securely and mount them in the jar holders, ensuring proper alignment on the gear-driven transmission. - Set rotation speed
Set the rotation speed using the inverter speed control to the desired value within the operational range. - Start grinding and monitor temperature
Start the grinding cycle and monitor the chamber temperature to ensure it remains within the 5–15°C range. - Remove jars after completion
Allow the mill to come to a complete stop before removing the jars to avoid spillage or injury.
What is the effective temperature control range of the CPM-0.2S cryogenic planetary ball mill under varying ambient conditions?
The CPM-0.2S maintains a grinding chamber temperature of 5–15°C, but this range is dependent on ambient temperature conditions. The integrated 2P air-cooled refrigeration unit removes heat via cold air circulation, so maintaining a stable laboratory environment is required for consistent results. Under high ambient temperatures, the achievable low end may be limited.
Can the CPM-0.2S be used for grinding air-sensitive or moisture-sensitive materials, and what configurations are required?
Yes, the CPM-0.2S is specifically designed for glovebox-compatible cryogenic grinding of air-sensitive and moisture-sensitive samples. The main unit (SKU AFPBM0.2S) is priced without jars or media; you must separately order compatible grinding jars (e.g., Agate, YSZ, Al₂O₃, WC-Co, SS, PU, Ceramic, Nylon) and grinding balls (40% jar capacity) to avoid cross-contamination with your target material.
What are the installation and operational requirements for the CPM-0.2S's integrated refrigeration unit?
The refrigeration unit requires adequate ventilation space around the equipment for optimal cooling performance. The temperature control range (5–15°C) is dependent on ambient conditions, so a stable laboratory environment is necessary. The compact unit (Host: 390×220×270 mm, Control: 200×180×240 mm, 29 kg) is designed for glovebox use, but ensure proper airflow and consult the user manual before first use.
The CPM-0.2S cryogenic planetary ball mill integrates an air-cooled refrigeration unit for stable 5–15°C grinding, achieving ultrafine particles down to 0.1 μm in a compact glovebox-compatible design. However, jars and balls are sold separately, and cooling performance depends on ambient temperature and adequate ventilation.
Positive
- Integrated cryogenic temperature control: Compressor-based air-cooled refrigeration maintains grinding chamber at 5–15°C, removing frictional and exothermic heat for temperature-sensitive materials.
- Glovebox-compatible compact design: Miniature 0.2 L footprint (host 390×220×270 mm) with split control unit enables operation in gloveboxes for air- and moisture-sensitive samples while ensuring uniform temperature across all four jars.
Trade-offs
- Jars and media sold separately: Grinding jars (4×0.05 L) and balls must be procured independently, requiring careful material selection to avoid cross-contamination and additional lead time.
- Ambient dependency for cooling performance: The 5–15°C temperature range is contingent on stable ambient conditions; inadequate ventilation around the refrigeration unit degrades cooling efficiency and consistency.
