Description

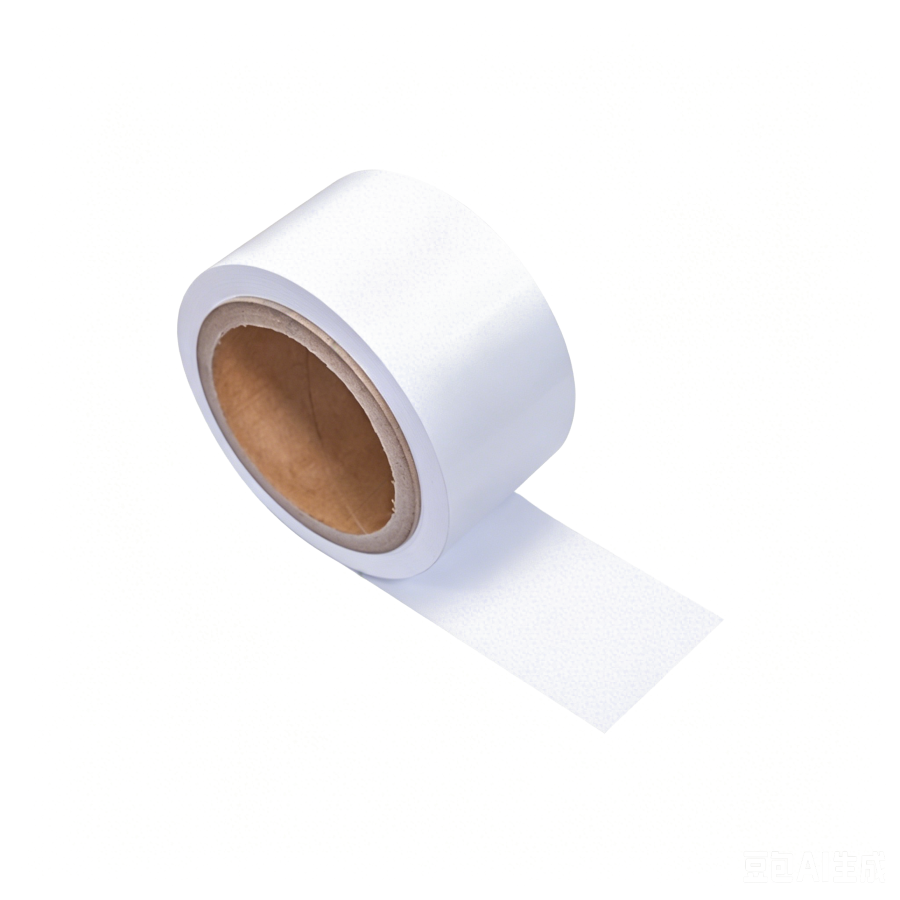

Atomfair Double-sided Alumina Coated PE Substrate Battery Separator Roll
Product Overview
Atomfair double-sided Alumina Coated PE substrate battery separator roll adopts a composite structure with symmetrical coating of Al2O3 on both sides of the PE substrate, featuring precise dimensions and balanced performance. It is only sold in roll form.
Core Specifications & Performance Parameters
|
Specification Project
|
Specific Parameters
|
|---|---|
|
Product Name
|
Atomfair Double-sided Alumina coated PE Substrate Battery Separator Roll
|
|
Material
|
Polyethylene (PE) substrate + double-sided alumina (Al2O3) coating
|
|
Total Thickness
|
20±2um (PE substrate: 16um; single-sided Al2O3 coating: 2um)
|
|
Roll Size
|
1000m (length) * 60mm (width)
|
|
Air Permeability
|
180±60s/100ml
|
|
Porosity
|
44±5%
|
|
Surface Density
|
13.0±1.0g/m²
|
|
Puncture Strength
|
≥600G
|
|
Tensile Strength
|
MD ≥1600kgf/cm²; TD ≥1500kgf/cm²
|
|
Thermal Shrinkage (90℃, 2h drying)
|
MD ≤2.5%; TD ≤2.0%
|
|
Sales Form
|
Roll-only
|
|
Outer Packaging Size (L*W*H)
|
16in * 8in * 8in
|
Product Application
This product is a high-performance dedicated separator material for lithium-ion batteries. Relying on the excellent mechanical properties of the PE substrate and the high-temperature resistance and short-circuit prevention advantages of the double-sided Al2O3 coating, it plays a core role in lithium-ion batteries:
-
Precisely separating the positive and negative electrodes, eliminating short-circuit risks from direct contact and ensuring battery safety.
-
Optimized pore structure and air permeability enable full electrolyte penetration, accelerating lithium-ion migration and enhancing charge-discharge efficiency & rate performance.
-
Outstanding puncture/tensile strength and low thermal shrinkage boost battery structural stability and extend cycle life.
Suitable for various lithium-ion battery production scenarios (consumer electronics, power batteries, etc.).
Quality Compliance
-
Raw materials comply with ISO 10993 chemical inertness standards, no adverse reactions with Li-ion battery electrolytes.
-
Mechanical testing adheres to ASTM D882 (tensile) and ASTM D726 (puncture) international protocols.
-
Thermal shrinkage testing meets IEC 61960 battery component safety requirements.
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
