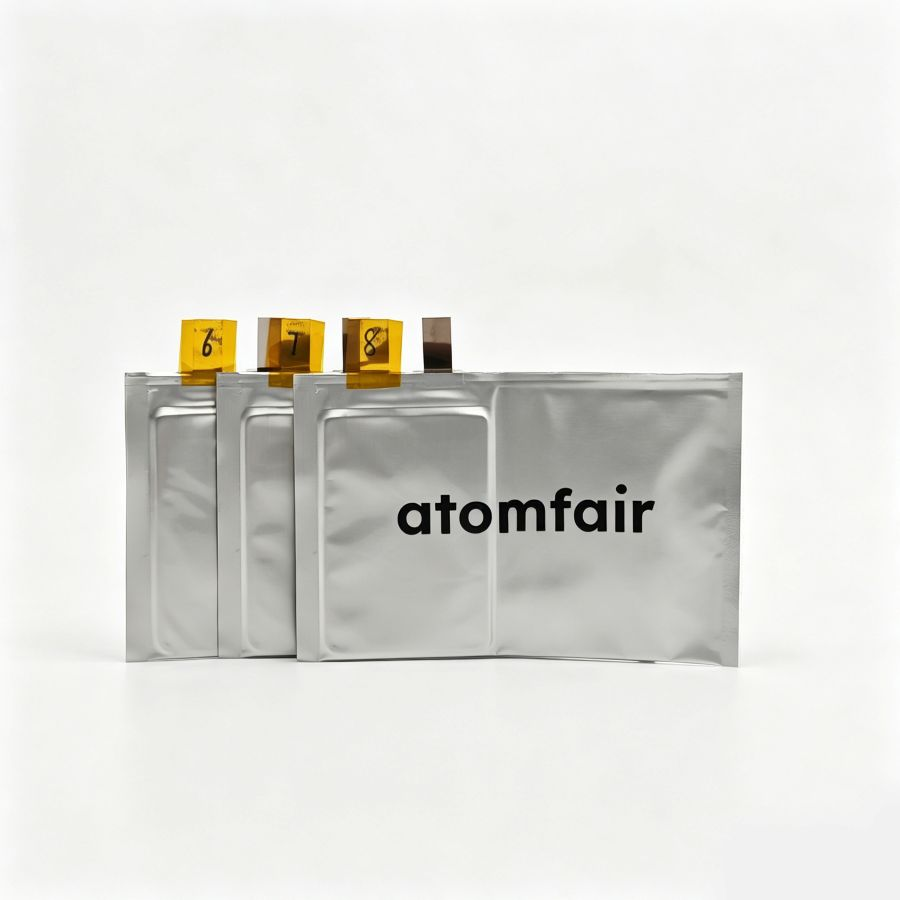

High-voltage 4.2V 1Ah NFM cathode and hard carbon anode dry pouch sodium-ion Na-ion battery cell by Atomfair for research.

Atomfair 1AH NFM || Hard Carbon Dry Pouch Cell Sodium (Na) Ion Battery High-Voltage (4.2V)

$70.00

The 1AH NFM || Hard Carbon Dry Pouch Cell 4.2V High Voltage Edition is a cutting-edge energy storage solution designed for advanced battery research and development. Utilizing high-voltage sodium-based NFM (nickel, iron, manganese) chemistry combined with hard carbon, this dry pouch cell enables extended voltage platforms and higher energy density, making it ideal for next-generation battery innovation and energy efficiency optimization.

Quantity Discount (%) Price
1 – 4 — $70.00
5 – 14 — $99.99
15 – 49 14.3 % $59.99
50+ 21.44 % $54.99
SKU: AAPONFMHC1A2A0
Category:
Tags: ,
Brands:

Description

1AH NFM || Hard Carbon Dry Pouch Cell

4.2V HIGH-VOLTAGE SODIUM (Na) ION

Product Overview
The 1AH NFM || Hard Carbon Dry Pouch Cell 4.2V High Voltage Edition is a cutting-edge energy storage solution designed for advanced battery research. Utilizing high-voltage sodium-based NFM chemistry combined with hard carbon, this cell enables extended voltage platforms and higher energy density, ideal for next-generation innovation and efficiency optimization.

Detailed Technical Specifications
PARAMETER CATHODE (NFM) ANODE (HC)
Specific Capacity (mAh/g) 142 300
Active Material Proportion 95.3% 94.5%
Coating Mass Density (mg/cm²) 20 10
Foil Thickness (μm) 12 (Al) 12 (Al)
Electrode Dimensions (mm) 60 × 80 63 × 84
Areal Capacity (mAh/cm²) 2.707 2.835
Cell Capacity: 1039.456 mAh N/P Ratio: 1.047
Layer Count: 8 / 9 Layers Separator Thickness: 12+2+2 μm
Electrolyte Coeff: 5-6 g/Ah (Inquiry Req.) Electrolyte: Not Included (Dry)
*Parameters are based on theoretical calculations; actual performance may vary.

Key Features & Advantages
  • 4.2V High Voltage Platform: Optimized for extended voltage range and energy density.
  • Precision Electrode Engineering: 12μm ultra-thin foils with optimized coating densities ensure high-rate stability.
  • Balanced N/P Ratio (1.047): Maximizes capacity utilization while maintaining safety standards.
  • Multilayer Architecture: 8/9 layer config for enhanced current distribution.
  • R&D Flexibility: Dry cell format supports diverse custom electrolyte experimentation.

APPLICATION SCOPE: High-voltage Na-ion research, EV power systems, aerospace energy storage, and academic electrochemistry.
PACKAGING: 1 piece of 1AH NFM-Hard Carbon dry pouch cell. Store in a cool, dry environment.
NOTICE: Shipped according to default parameters unless customization is requested via email prior to order. Contact customer service for specific loading or material formula requirements.
ELEVATE YOUR EXPERIMENTAL PERFORMANCE
Enhance battery performance—Order our high-quality research materials now!
EMAIL: support@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Additional information

Weight 0.3 kg
Dimensions 23 × 15 × 3 cm
