170 L Water-Jacket Standard Sterilization CO2 Incubator, High-End Touchscreen Series
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
Supplier: Atomfair
Brand: ATOMFAIR®
|
The incubator requires a stable power supply of AC 220V 50Hz and an ambient temperature range of +5 to +30°C for reliable operation. The unit must be installed with adequate clearance for access and ventilation, and transported upright with appropriate lifting equipment.
- Installation Space: Confirm the available space meets the external dimensions of 684 × 700 × 960 mm and ensure the area is level and well-ventilated.
- Power Supply: Provide a dedicated AC 220V 50Hz power outlet with appropriate grounding and capacity.
- Transport Orientation: Keep the incubator upright during transport and use suitable lifting equipment to avoid damage.
- Accessibility: Maintain access to chamber, sensors, shelves, filters, doors, test ports, and control interfaces for cleaning and inspection.
- Alarm Monitoring: Monitor alarm conditions including power failure, CO2 deviation, door opening, and temperature sensor faults to ensure safe operation.
This procedure describes the steps to install and prepare the CO2 incubator for operation. Follow these steps to ensure proper setup and safe initial use.
Required Equipment: Lifting equipment
- Confirm space and power
Confirm the installation space meets the external dimensions of 684 × 700 × 960 mm and that a dedicated AC 220V 50Hz power supply is available. - Transport upright
Transport the incubator in its upright position using suitable lifting equipment to prevent impact damage. - Unpack and position
Unpack the incubator and position it in the workspace, keeping all chambers, sensors, and interfaces accessible for operation and maintenance. - Connect utilities and accessories
Connect the incubator to the AC 220V 50Hz power supply and install any selected optional accessories according to the required workflow.
After a 30-second door opening, how quickly does the CO2 level recover to 5% in the Atomfair CO2 incubator, and why is that important for cell culture?
The CO2 recovery time is no more than 3 minutes to return to 5% CO2 after a 30-second door opening, as stated in the technical specifications. This rapid recovery minimizes disruption to the incubation environment, which is critical for maintaining stable pH and gas conditions in advanced cell culture workflows.
Does the Atomfair CO2 incubator support hypoxic or low-oxygen cell culture conditions, and what is the oxygen control range?
Yes, the incubator offers an optional zirconia O2 control system that can regulate oxygen from 1% to 90%, enabling hypoxic or hyperoxic cultivation. This is achieved through the optional O2 monitoring function, allowing researchers to conduct oxygen-managed cell culture experiments.
What are the power supply and installation space requirements for the 170 L water-jacket CO2 incubator?
The incubator requires a power supply of AC 220 V, 50 Hz, with a rated power of 700 W. The external dimensions are 684 mm wide, 700 mm deep, and 960 mm high, and it should be operated in an ambient temperature range of +5 to +30°C. Ensure adequate clearance for chamber access, cleaning, and ventilation before installation.

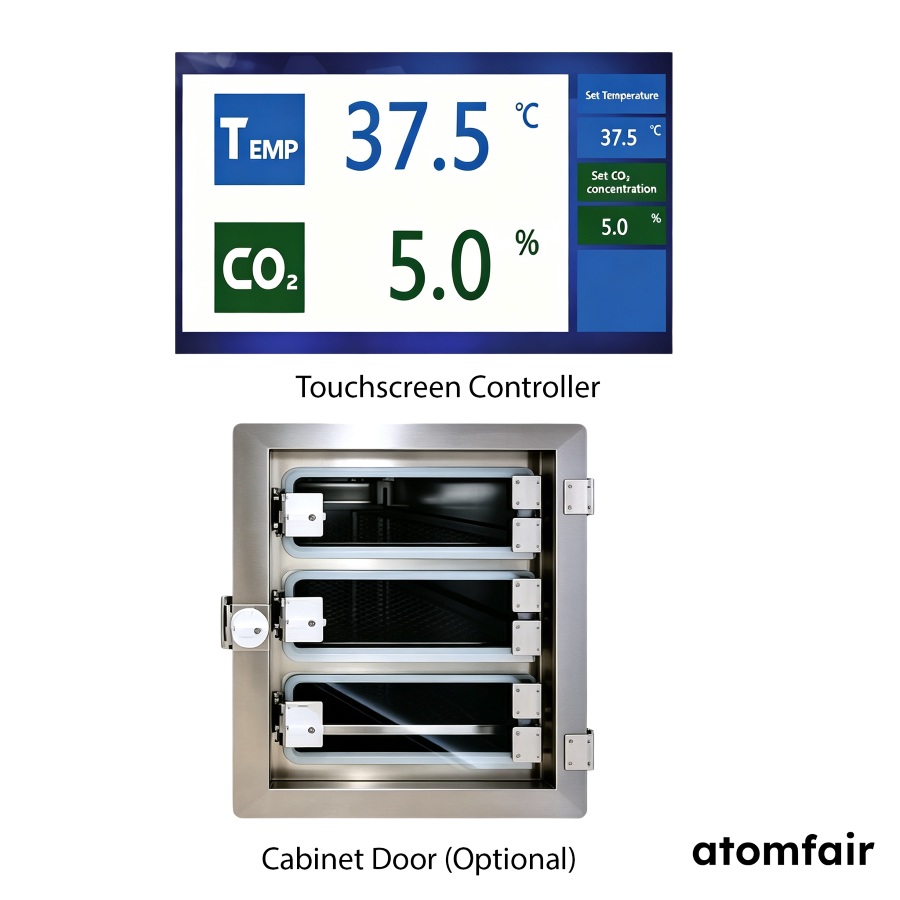

The 170 L Water-Jacket CO2 Incubator (AF-CO2H-170W) offers precise temperature stability (±0.1°C) and rapid CO2 recovery (≤3 minutes), suitable for sensitive cell culture. The touchscreen interface provides trend curves and 72-hour record review, while optional O2 control and alarm functions expand its utility. However, the unit requires AC 220V 50Hz power and operates within a narrow ambient temperature range of +5 to +30°C.
Positive
- ±0.1°C temperature stability and ±0.3°C uniformity: At 37°C, the incubator maintains temperature stability of ±0.1°C and uniformity of ±0.3°C, ensuring consistent thermal conditions for cell culture experiments.
- CO2 recovery time ≤3 minutes: After a 30-second door opening, CO2 concentration recovers to 5% within 3 minutes, minimizing environmental disruption during routine access.
Trade-offs
- AC 220V 50Hz power supply requirement: The incubator is designed for AC 220V, 50Hz electrical systems. Laboratories with different voltage or frequency will require a step-down transformer or frequency converter, adding infrastructure complexity.
- Narrow working ambient temperature range: The specified working ambient temperature is +5 to +30°C. Operation outside this range may compromise temperature control accuracy, limiting placement in unconditioned laboratory spaces.
Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.
To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
