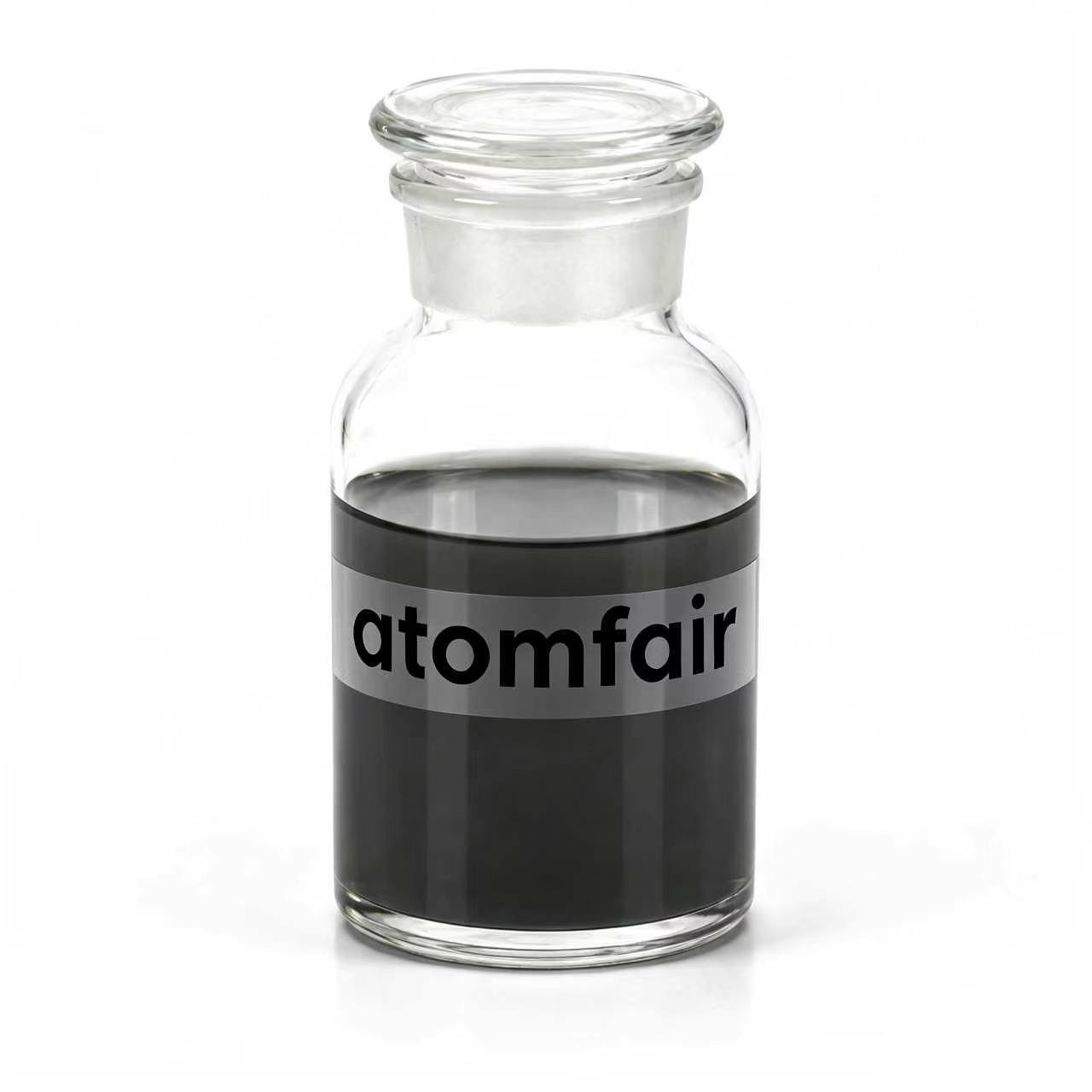

ATOMFAIR® SC041S single-wall carbon nanotube aqueous dispersion dark black liquid inside a clear glass jar.

SC041S Single-Wall CNT Dispersion 0.4% 400g ATOMFAIR®

$250.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research grade SC041S SWCNT aqueous dispersion with 0.4% CNT content and ≤15000 mPa·s viscosity. For silicon anode battery research. Order now.

SKU: AFMSJGYC890
Category:
Tags:
Brands:

Description

ATOMFAIR® SC041S SINGLE-WALL CNT DISPERSION

RESEARCH GRADE MATERIAL

Product Overview
The ATOMFAIR® SC041S Single-Wall CNT Dispersion acts as a highly specialized water-based fluid system containing a precise 0.4% single-wall carbon nanotube matrix. This advanced formulation is engineered to optimize critical high-purity powder price dynamics across high-end battery systems while establishing superior cell-to-cell consistency. Delivering an exceptional validation platform that eliminates processing variables, this low-viscosity slurry ensures high electrical performance and uncompromised structural configuration safety, making it a premier solid state electrolyte material precursor for silicon anode applications.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Appearance Profile Gray-black uniform slurry form factor
Carrier Solvent Deionized water fluid system
Total Solid Content 0.8% integrated solids
CNT Active Content 0.4% pristine single-wall carbon nanotubes
Dispersant Content 0.4% optimized stabilizing agent
2. Fluid Rheology & High Purity Metrics
Slurry Viscosity ≤15000 mPa·s (Tested with 3# rotor system)
Magnetic Foreign Matter ≤1 ppm to eliminate parasitic electronic leakage
Trace Elemental Impurities Fe ≤20 ppm, other target components ≤5 ppm
3. Target System & Compliance Parameters
Suitable Applications Silicon anode processing, advanced lithium-ion battery configurations
Manufacturing Rules Processed under strict ISO standard compliance conditions
Alternative Options Explore customized loading ratios or alternative solvent bases like NMP. Contact technical support for personalized inquiries.

Key Features & Advantages
  • Water-Based Fluid Carrier: Deionized water solvent system engineered for optimal environmental and processing safety in anode production lines.
  • Optimized SWCNT Network: Balanced 0.4% single-wall carbon nanotube loading stabilized perfectly with a matching 0.4% dispersant ratio to boost overall transfer kinetics.
  • Strict Impurity Boundaries: Fluid matrix properties bounded tightly with magnetic foreign matter ≤1 ppm and Fe contents managed below 20 ppm to ensure data reproducibility.

APPLICATION SCOPE: Silicon anode processing, advanced lithium-ion battery configurations, and laboratory scale conductive slurry integration paths.
PACKAGING: Liquid-tight, high-purity secure slurry containers designed to shield internal material characteristics.
IMPORTANT NOTICE: This product is highly sensitive to storage environments. Keep containers strictly sealed and process exclusively under controlled mixing rules to prevent premature agglomeration or how to prevent moisture degradation issues before layout validation. Sold exclusively for laboratory research.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This aqueous SWCNT dispersion requires strict control of magnetic foreign matter content below 1 ppm to prevent short circuits in silicon anode fabrication. The material must be stored in sealed containers to avoid solvent loss and contamination that could alter dispersion stability.

  • Impurity Control: Maintain magnetic foreign matter below 1 ppm through clean handling and filtration procedures.
  • Dispersion Stability: Avoid freeze-thaw cycles and excessive shear to prevent agglomeration of the carbon nanotube network.
  • Application Compatibility: Verify compatibility with other slurry components such as binders and conductive additives to ensure uniform coating.
  • Storage Environment: Store at controlled room temperature in original sealed container away from direct sunlight.
  • Handling Protocol: Use clean, non-metallic tools to avoid introducing magnetic contaminants.

How does the 0.4% SWCNT loading and ≤15000 mPa·s viscosity trade off against higher CNT loadings for silicon anode conductivity needs?

SC041S uses a balanced 1:1 ratio of 0.4% SWCNT to 0.4% dispersant, which minimizes free dispersant interference with anode binders while maintaining viscosity ≤15000 mPa·s for processability. This formulation is optimized for standard coating equipment; higher CNT loadings would increase viscosity and risk agglomeration, compromising slurry uniformity.

Is SC041S compatible with PVDF-based binders or only with water-soluble systems like CMC/SBR for silicon anode fabrication?

SC041S is a water-based dispersion using deionized water as the solvent, making it compatible only with aqueous binder systems such as CMC and SBR. It is not compatible with NMP-based PVDF binders due to solvent incompatibility, and its design for silicon anode applications presumes aqueous processing routes.

What are the recommended storage and handling procedures to maintain dispersion stability and prevent sedimentation of SC041S?

Store SC041S in its original high-purity sealed slurry containers to prevent contamination and solvent loss. Before use, gently stir or agitate the dispersion to redisperse any settled solids; the low viscosity (≤15000 mPa·s) facilitates easy re-dispersion without prolonged high-shear mixing.

This SC041S single-wall carbon nanotube dispersion in deionized water is formulated for silicon anode applications, providing a low-impurity conductive additive that must be handled with attention to its high viscosity and total solids content.

Positive

  • Water-based solvent system: Deionized water carrier eliminates organic solvents, improving safety and environmental compatibility in anode slurry processing lines.
  • Low metallic impurity levels: Fe ≤20 ppm and magnetic foreign matter ≤1 ppm ensure high-purity CNT incorporation, minimizing parasitic side reactions in electrochemical cells.

Trade-offs

  • High viscosity handling: Viscosity up to 15000 mPa·s may require specialized mixing or dilution procedures to achieve homogenous integration into anode slurries.
  • Low total solid content: Only 0.8% solids (0.4% CNT) necessitates larger volumes to reach target CNT loadings, potentially impacting process logistics and cost.
