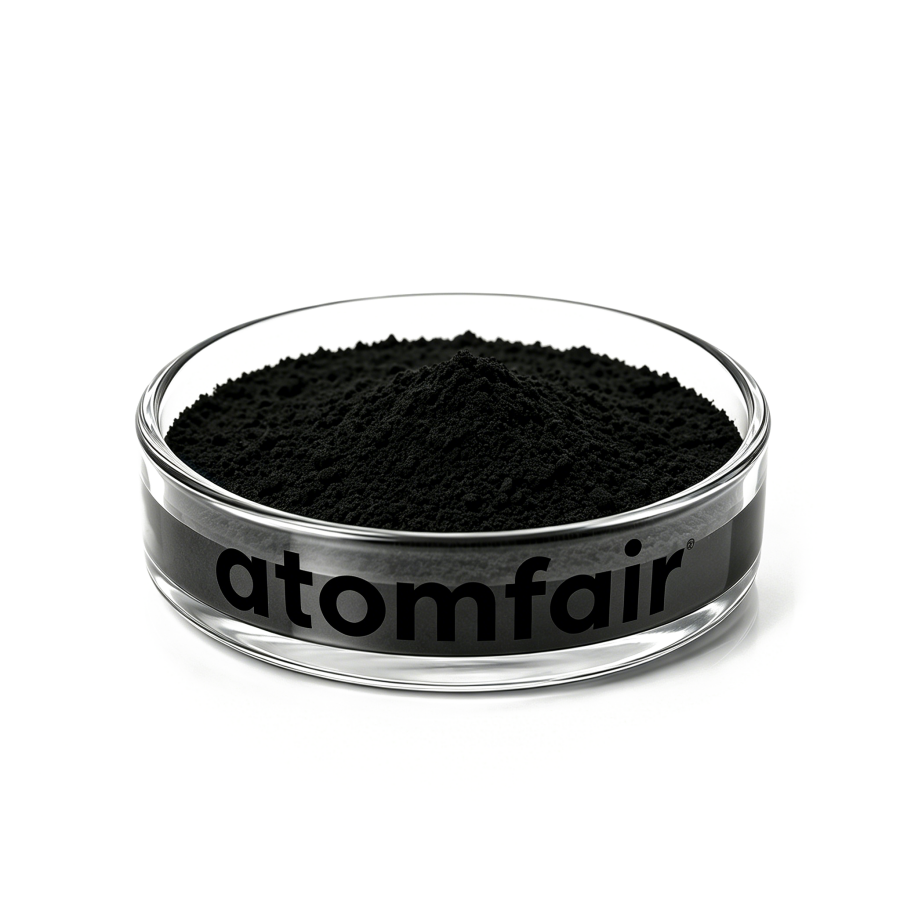

ATOMFAIR® CH high performance thin whisker carbon nanotubes fine black powder inside a clear egg-shaped glass bottle.

CH Carbon Nanotubes 60nm 99.95% Research Grade ATOMFAIR®

$311.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

CH carbon nanotubes 60nm diameter, >99.95% purity, <50ppm metals, 30-40 m2/g surface area, research grade. Ideal for high-performance composites. Order now.

SKU: AFMSJKTC615
Category:
Brands:

Description

ATOMFAIR® CH CARBON NANOTUBES

RESEARCH GRADE MATERIAL

Product Overview
The ATOMFAIR® CH Carbon Nanotubes are engineered as a high-conductivity carbon matrix optimized to deliver excellent value relative to standard high-purity powder price metrics. Presenting in an uncompromised structural configuration, this premium nanotube series functions as an exceptional validation platform that establishes complete cell-to-cell consistency while successfully eliminating processing variables. Designed explicitly as a high-efficiency matrix or solid state electrolyte material booster, it delivers dual performance advantages in composite pathways to ensure absolute data reproducibility across high-end laboratory testing workflows.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Appearance & Type Conductive carbon nanotube powder form factor
Structural Purity >99.95% ultra-high purity track
Nanotube Diameter 60nm precisely managed profile
Nanotube Length 7±2μm continuous physical network
2. Geometric & Conductive Performance Metrics
Specific Surface Area 30-40 m²/g optimized footprint (minimizes binder absorption)
Volume Resistivity <15 mΩ·cm under intensive 20MPa compaction metrics
Conductive Performance Demonstrates 2x improved efficiency compared to AH series in composite systems
Moisture Threshold <0.1% strict maximum limit
3. Trace Element & Metal Purity Parameters
Total Metal Impurities <50ppm overall (with Fe strictly bounded <30ppm)
Magnetic Foreign Matter <2ppm to eliminate parasitic electronic leakage
4. Manufacturing Rules & Alternatives
Manufacturing Rules Processed under strict ISO standard compliance conditions
Alternative Options Explore our fine single-wall nanotube variants or AH series benchmarks. Contact engineering for technical custom configurations.

Key Features & Advantages
  • Superior Conductive Pathways: Features an uncompromised structural configuration delivering 2x enhanced conductivity profiles compared to standard AH series layouts in composite networks.
  • Engineered Surface Dynamics: Bounded within a strict 30-40 m2/g footprint to demonstrate superior dispersion properties and lower binder utilization across fluid formulations.
  • Exceptional Matrix Purity: Maintained with an absolute carbon background exceeding 99.95% along with extremely low magnetic limits to guarantee reliable data reproducibility.

APPLICATION SCOPE: High-performance battery composite systems, advanced conductive network modifications, and research-scale electrode paste optimization matrices.
PACKAGING: Standard research-grade powder containment sealed hermetically to isolate material characteristics from outside humidity.
IMPORTANT NOTICE: This material is processed under extremely dry tolerances. Keep containers tightly closed or process exclusively inside an anhydrous environment to completely avoid how to prevent moisture degradation bugs or cluster agglomerations before slurry validation. Sold exclusively for laboratory research.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This nanomaterial requires storage in a dry environment to maintain its specified moisture content below 0.1%. Ambient humidity exposure can lead to moisture uptake and compromise electrical performance.

  • Moisture Sensitivity: Store in a sealed container under dry conditions to preserve the low moisture content and prevent performance degradation.

How does the 60 nm diameter of CH carbon nanotubes affect their electrical conductivity in composite systems compared to smaller-diameter CNTs?

The CH series with 60 nm diameter achieves a resistivity of <15 mΩ·cm at 20MPa, demonstrating 2x better conductivity than the AH series in composite systems. The larger diameter likely reduces contact resistance between nanotubes, enabling efficient percolation at lower loading fractions.

What constraints exist for using CH carbon nanotubes in semiconductor or ultra-high-purity applications given their metal impurity profile?

CH carbon nanotubes contain total metal impurities <50ppm with Fe<30ppm and magnetic particles <2ppm, making them suitable for application environments requiring extremely low magnetic contamination. The >99.95% purity ensures minimal catalytic interference in sensitive chemical systems.

What storage infrastructure is recommended for CH carbon nanotubes to maintain their specified performance?

With moisture content specified at <0.1%, CH carbon nanotubes should be stored in sealed containers under dry conditions to prevent moisture uptake that could agglomerate particles and degrade dispersion quality. The material is sold exclusively for laboratory research and professional handling environments.

The ATOMFAIR® CH carbon nanotubes provide twice the conductivity of AH-series in composite systems with ultra-high purity (>99.95%) and very low metal contamination (<50 ppm). However, the moderate surface area (30-40 m²/g) limits functionalization capacity, and the stringent moisture content specification (<0.1%) necessitates anhydrous storage and handling protocols.

Positive

  • Superior composite conductivity: Delivers 2x the electrical conductivity of AH-series nanotubes in composite systems, enabling enhanced performance in conductive polymers and coatings.
  • Ultra-high purity with trace metals: Purity exceeds 99.95% with total metal impurities below 50 ppm (Fe <30 ppm) and magnetic particles below 2 ppm, minimizing contamination in sensitive electronic and catalytic applications.

Trade-offs

  • Moderate surface area: With a surface area of only 30-40 m²/g, the available interface for functionalization, catalyst loading, or adsorption is limited compared to higher-surface-area carbon nanostructures.
  • Moisture-sensitive storage required: The material's specified moisture content of <0.1% demands anhydrous storage conditions to prevent aggregation and preserve electrical properties, adding logistical overhead.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
