Dual-Flow Nitrogen Cabinet 540 L 1%-60% RH ATOMFAIR®

Dual-Flow Nitrogen Cabinet 540 L 1%-60% RH ATOMFAIR®

$1,940.00

Heavy Item Pricing: Prices for this heavy item are net prices (ex-factory / ex-warehouse) and exclude logistics or shipping fees.

Heavy Item Shipping: The final shipping cost will be calculated based on the product’s physical characteristics, including weight and volume, the selected transport mode, such as land, air, or sea freight, and the actual shipping distance. We arrange shipment from the nearest available global warehouse based on your delivery address, current stock levels, and logistical arrangements.

Due to fluctuations in global oil prices and market dynamics, please contact inquiry@atomfair.com to obtain an accurate real-time shipping quote and your order total before placing your order.

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

540 L dual-flow nitrogen cabinet with 1%-60% RH control, 15-50 L/min recovery flow, 1-5 L/min holding flow, 600 × 690 × 1485 mm body. Order now.

SKU: AF-EI-E-DFNC-STD0-540L
Category:
Brands:

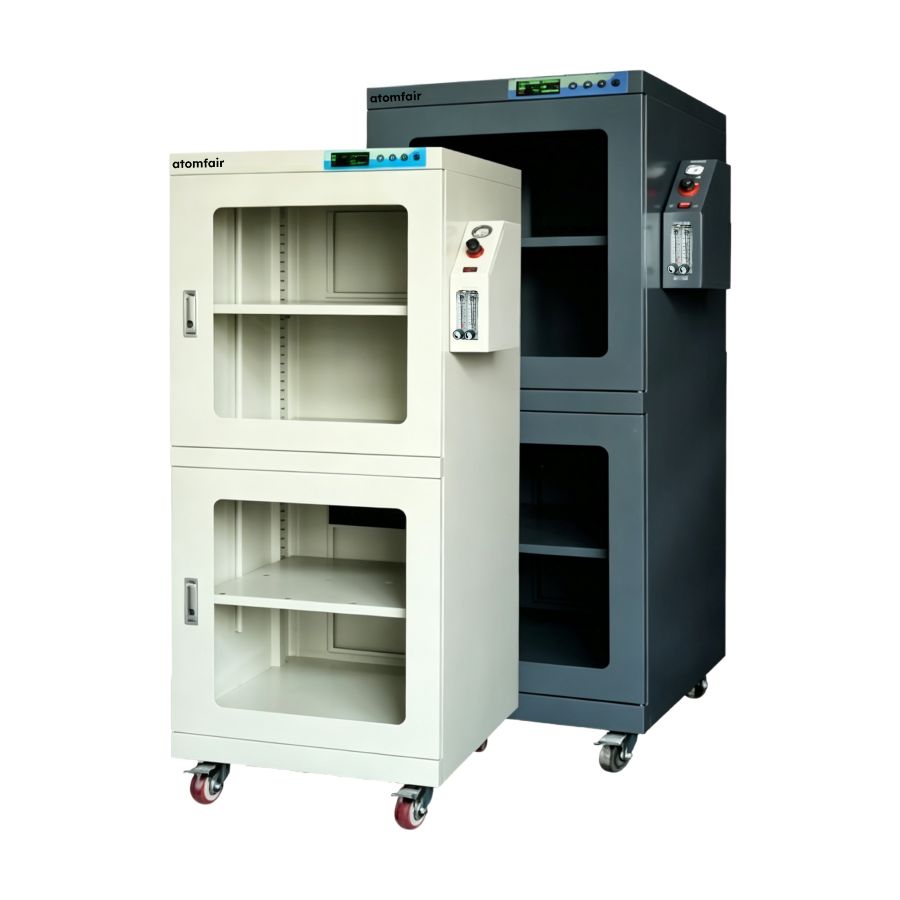

540L Dual-Flow Energy-Saving Nitrogen Cabinet

Research-grade laboratory product

Product Overview

The 540 L configuration uses a standard white cabinet body, a humidity control range of 1%-60% RH, outer dimensions of 600 × 690 × 1485 mm, inner dimensions of 555 × 640 × 1315 mm and 3 adjustable shelves.

This dual-flow energy-saving nitrogen cabinet is designed for low-humidity storage tasks where fast recovery after door opening and reduced unnecessary gas consumption are both important. It supports moisture-sensitive materials that require controlled nitrogen-assisted drying while improving atmosphere recovery and lowering routine nitrogen demand.

Typical application areas include research laboratories, electronics workshops, component staging rooms, optical storage spaces and inspection environments where cabinet doors may be opened more frequently during routine work. This body type suits general laboratories, inspection rooms and organized storage areas.

The cabinet combines 1.2 mm galvanized steel cabinet with white exterior panels, tempered-glass viewing doors and magnetic sealing, dual-flow nitrogen management, automatic switching between large-flow and small-flow operation, tempered-glass viewing areas and perforated adjustable shelves for stable day-to-day cabinet performance.

Technical Specifications
Parameter Specification / Available Values
Atomfair Model AF-DFNC540
Product Family Dual-Flow Energy-Saving Nitrogen Cabinet
Cabinet Body Standard white cabinet body
Nominal Capacity 540 L
Humidity Control Range 1%-60% RH
Outer Dimensions (W × D × H) 600 × 690 × 1485 mm
Inner Dimensions (W × D × H) 555 × 640 × 1315 mm
Adjustable Shelf Quantity 3
Cabinet Material 1.2 mm galvanized steel cabinet with white exterior panels and 5 mm tempered-glass viewing doors
Control Mode Automatic software-controlled nitrogen management
Large-Flow Meter Setting 15-50 L/min
Small-Flow Meter Setting 1-5 L/min
Switching Logic Automatic switching between large-flow and small-flow operation
Operating Characteristic Fast recovery after door opening with reduced unnecessary nitrogen use
Suitable Stored Materials Moisture-sensitive electronic parts, optical components and frequently accessed laboratory materials

Key Features and Advantages
  • Dual-flow nitrogen control with large-flow settings of 15-50 L/min and small-flow settings of 1-5 L/min.
  • Automatic switching between high-flow and low-flow operation without manual intervention.
  • Fast recovery after door opening helps restore the cabinet atmosphere while reducing unnecessary nitrogen consumption.
  • Sealed galvanized steel cabinet structure with tempered-glass viewing areas for controlled dry storage.
  • Perforated adjustable shelves support airflow circulation and flexible material arrangement.

Optional Items and Consultation
  • Anti-static cabinet body upgrade with ESD-compliant exterior coating for electrostatic-control environments.
  • Internal high-brightness LED lighting for improved visibility in cabinet interiors.
  • Stainless steel cabinet-body upgrade for cleaner or more corrosion-conscious storage environments.
  • Electronic dehumidification module that can operate together with the gas-filling unit to reduce nitrogen use.
  • Nitrogen generator configuration for applications that prefer an on-site nitrogen supply.
  • RS485 communication interface for PC-side monitoring and recorded cabinet-status management.
  • Over-humidity alarm device that triggers when measured humidity exceeds the configured set value.
  • If optional items are required, please contact inquiry@atomfair.com.
APPLICATION SCOPE: Suitable for research laboratories, electronics workshops, component staging rooms, optical storage spaces and inspection environments that require low-humidity nitrogen-assisted storage with rapid recovery after cabinet access.
HANDLING & STORAGE: Install the cabinet on a stable indoor surface, keep the door closed during normal use, distribute stored items evenly across the 3 shelf levels, protect structural and sealing components during movement, and use reinforced wooden-crate packaging when shipment protection is required. Verify stable gas-supply conditions before operation.
IMPORTANT NOTICE: Confirm the correct model, cabinet body type, capacity and optional accessories before ordering. Inspect the cabinet after delivery, verify level installation and door sealing, and do not exceed the stated shelf-loading or application conditions. Confirm utility conditions such as power and gas connections before formal use.
TAILORED SOLUTIONS FOR RESEARCH
For bulk orders, configuration review, accessory matching or application-specific guidance, contact our engineering sales team.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

The cabinet demands a stable nitrogen supply and level installation to maintain its low-humidity environment. Stored material distribution and door sealing directly affect humidity recovery performance and nitrogen consumption.

  • Installation Surface: The cabinet must be placed on a level, rigid surface to prevent door misalignment and seal failure.
  • Nitrogen Supply: A continuous, regulated nitrogen supply is required to sustain the programmed humidity setpoint within the cabinet.
  • Load Distribution: Stored items must be evenly distributed across all shelves to avoid obstructing internal airflow and causing humidity gradients.
  • Door Operation: The viewing doors must remain closed during normal operation except during material access to minimize nitrogen loss and recovery time.
  • Shelf Loading Limit: Per-shelf loading must not exceed the stated capacity to prevent structural deformation and compromise the door seal.

Position the cabinet on a stable surface and connect a regulated nitrogen supply. Set the flow meter ranges, then power on the automatic control system to stabilize the interior atmosphere before loading materials.

Required Equipment: Nitrogen supply line with pressure regulator, Adjustable wrench for gas connection

  1. Position and Level the Cabinet
    Place the cabinet on a level indoor surface and verify that the door seals contact evenly along the full perimeter.
  2. Connect the Nitrogen Supply
    Attach the nitrogen supply line to the cabinet's gas inlet and confirm the supply pressure is within the recommended range.
  3. Set the Flow Meter Ranges
    Adjust the large-flow meter to 15–50 L/min and the small-flow meter to 1–5 L/min according to the required recovery speed and baseline nitrogen consumption.
  4. Power On the Automatic Control System
    Turn on the cabinet's power supply to activate the software-controlled nitrogen management and allow the system to achieve the set humidity target.
  5. Load Materials Evenly
    Distribute moisture-sensitive parts across the three adjustable shelves, ensuring no items block the perforated shelves or the airflow path.
  6. Close the Door and Monitor Recovery
    Close the cabinet door firmly and observe the humidity display to confirm that the interior RH reaches the setpoint within the expected recovery time.

How does the dual-flow nitrogen management balance recovery speed and gas consumption in the 540L Atomfair cabinet?

The cabinet automatically switches between large-flow (15-50 L/min) and small-flow (1-5 L/min) operation. After a door opening, the high-flow mode restores the low-humidity atmosphere rapidly, then the system reduces to low-flow to maintain the setpoint with minimal unnecessary nitrogen use. This eliminates the need for manual adjustment and optimizes the trade-off between fast recovery and gas conservation.

What are the compatibility constraints for storing moisture-sensitive materials in the 540L Dual-Flow Nitrogen Cabinet?

The cabinet is designed for moisture-sensitive electronic parts, optical components, and frequently accessed laboratory materials, with a humidity control range of 1%-60% RH at ambient conditions. It is not rated for flammable, corrosive, or outgassing substances unless explicitly verified. The 1.2 mm galvanized steel body and magnetic sealing provide a controlled environment, but materials requiring strict inerting beyond nitrogen-assisted drying should be evaluated separately.

What infrastructure and handling requirements are needed before installing the 540L nitrogen cabinet?

The cabinet requires a stable indoor surface, a reliable nitrogen supply at the specified flow rates, and a standard power connection for the control system. The unit measures 600 × 690 × 1485 mm externally and weighs accordingly; it should be moved with reinforced wooden-crate packaging if shipped. After delivery, verify level installation, door sealing integrity, and gas-supply conditions before operation. Do not exceed shelf-loading limits or use in environments outside the 1%-60% RH design range.

The 540L Dual-Flow Energy-Saving Nitrogen Cabinet provides automatic switching between high and low nitrogen flow rates for rapid humidity recovery and reduced gas usage, but requires an external nitrogen supply and may need optional upgrades for ESD or corrosion resistance.

Positive

  • Dual-flow nitrogen management with automatic switching: Large-flow (15-50 L/min) and small-flow (1-5 L/min) modes enable fast humidity recovery after door opening while minimizing continuous nitrogen consumption, suitable for frequently accessed storage.
  • Robust sealed cabinet with perforated shelves: 1.2 mm galvanized steel construction with magnetic sealing and tempered-glass doors provides stable low-humidity environment; perforated adjustable shelves promote uniform airflow around stored materials.

Trade-offs

  • Requires external nitrogen supply and stable gas conditions: The cabinet depends on a continuous nitrogen source (optional on-site generator available); operation requires stable gas-supply pressure and connections, adding infrastructure overhead.
  • Base cabinet lacks ESD and corrosion protection: Standard white painted steel body is not anti-static or stainless steel; electrostatic-sensitive materials or corrosive environments require optional upgrades, increasing total cost and lead time.
