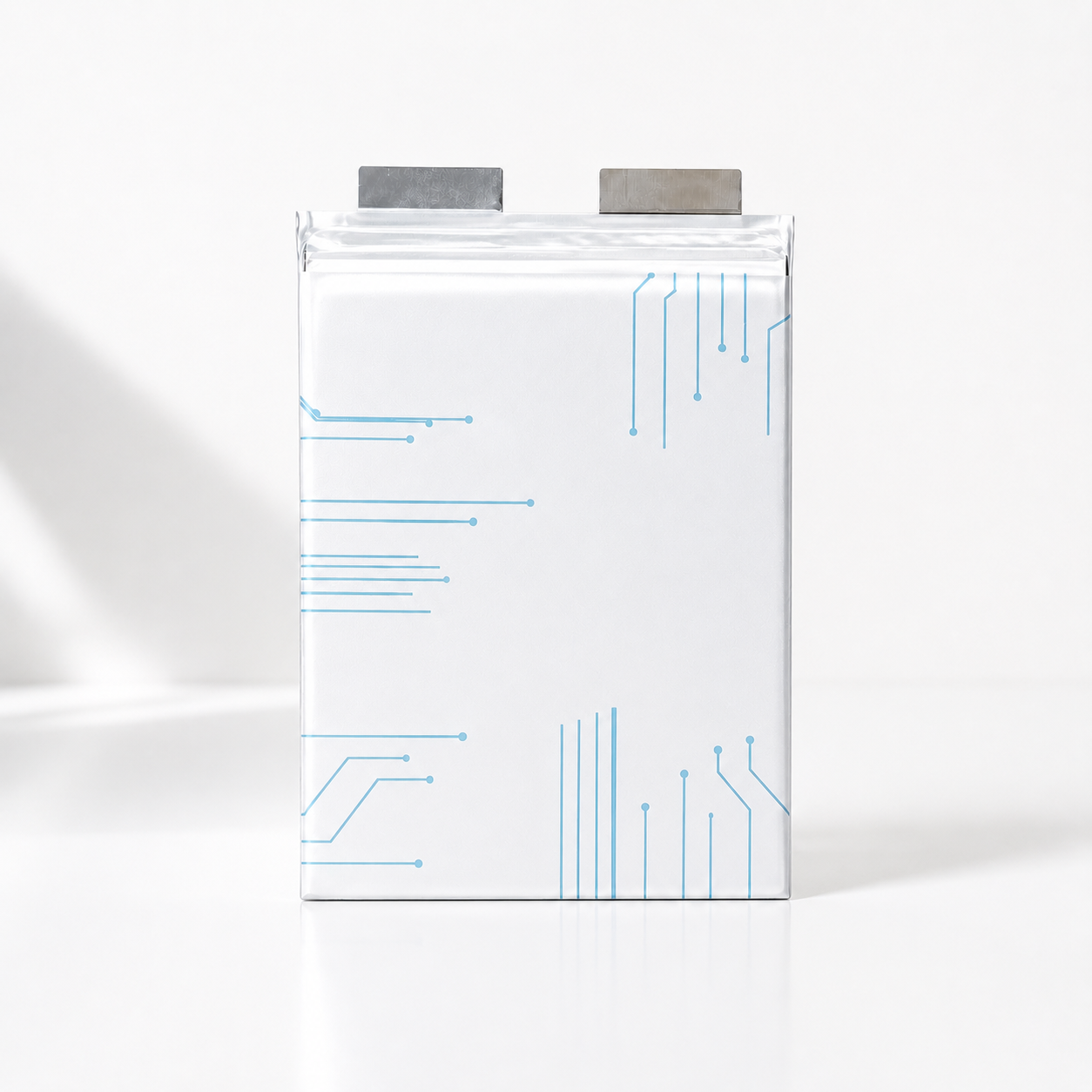

ZC Series Solid-State Cells – The Long-Life Solution
High-Rate Manganese-Based Technology | 3x Longer Life than Lead-Acid
Product Overview
The ZC series represents a breakthrough in solid-state battery technology for electric bicycles. Utilizing a composite manganese-based cathode (LMO + LMFP) and high-rate graphite anode, these cells feature a proprietary electrolyte coating. Designed to deliver over 1,800-2,000 cycles, the 48V 20Ah system enables e-bikes to exceed a 100km range while offering superior stability and safety compared to traditional power solutions.
Technical Specifications
| Specifications / Model | ZC122175-20 | ZC165227-39 | ZC14894-29 |
|---|---|---|---|
| Cell Size (mm) | 9.5 * 122 * 175 | 10 * 165 * 227 | 26 * 148 * 94 |
| Nominal Capacity | 20Ah | 39Ah | 29Ah |
| Energy Density | 180Wh/kg | 183Wh/kg | 170Wh/kg |
| Nominal Voltage | 3.8V | 3.8V | 3.8V |
| Cont. Discharge Rate | 3C | 3C | 3C |
| Cycle Life @RT | ≥2000 cycles | ≥2000 cycles | ≥2000 cycles |
| Operating Temp | -20°C to 55°C | ||
Core Features & Advantages
Exceptional Cycle Life
Delivering over 2,000 cycles at room temperature, providing three times the longevity of lead-acid batteries and lowering total cost of ownership.
High Discharge Capability
With a 3C continuous discharge rate, these cells provide reliable torque for heavy loads and steep inclines.
Environmental Resilience
Engineered to operate reliably in extreme climates ranging from -20°C to 55°C without compromising performance.
Application Scope
- Electric Bicycles & E-Bikes
- Battery Swapping Infrastructure
- Light Electric Vehicles (LEV)
- Portable Power & Small Energy Storage
Accessories & Customization
Yes. We offer customization for thickness, width, and height to fit your specific chassis or battery pack design. Support for 48V, 60V, and 72V system configurations is available.Technical Recommendation:
For optimal performance and safety, we recommend pairing these cells with a BMS that supports high-precision balancing to maximize the solid-state lifespan.
