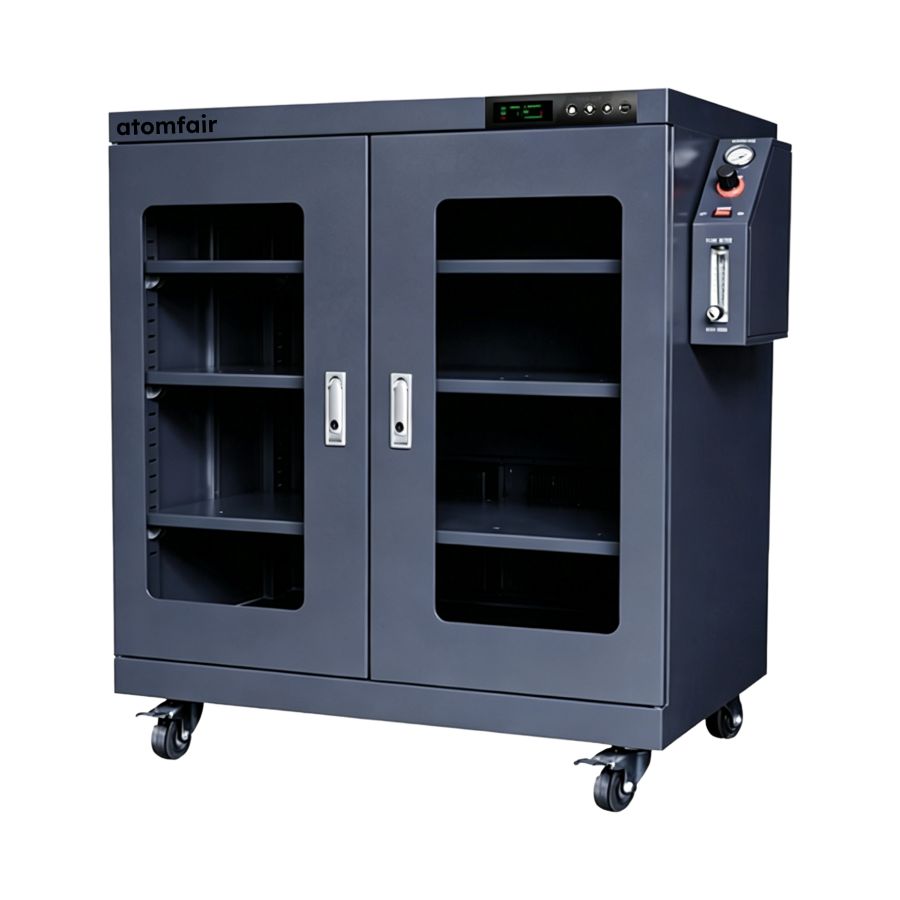

320L Moistureproof Nitrogen Integrated Cabinet, Anti-Static Cabinet BodyResearch-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
For bulk orders, configuration review, accessory matching or application-specific guidance, contact our engineering sales team.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
The cabinet must be installed on a stable indoor surface with verified gas-supply and power connections before operation. Stored materials are susceptible to moisture-induced degradation if humidity exceeds the 1%-60% RH control range or if the door seal is compromised.
- Installation Requirements: Confirm level installation, door sealing, and utility connections (power and nitrogen) before formal use.
- Humidity Control Range: The cabinet maintains humidity between 1% and 60% RH; do not expose stored materials to conditions outside this range.
- Material Compatibility: Suitable for moisture-sensitive electronic parts, optical components, powders, and films; avoid storing items that require different environmental conditions.
- Loading and Usage: Distribute stored items evenly across the three adjustable shelves and do not exceed the stated shelf-loading capacity.
- Failure Modes: Failure to maintain proper humidity can result in moisture absorption, oxidation, optical haze, and solderability loss of stored materials.
Follow these steps to prepare the cabinet for storage of moisture-sensitive materials. Proper installation and verification of utilities are critical for maintaining low-humidity conditions.
Required Equipment: Nitrogen gas supply, Power source
- Inspect Delivery
Inspect the cabinet upon delivery for any damage and verify that the model and accessories match the order. - Install and Level
Install the cabinet on a stable indoor surface and level it using the adjustable feet. - Connect Utilities
Connect the nitrogen gas supply and power source, then verify stable gas-supply conditions. - Check Door Seal
Confirm that the door seal is intact and the cabinet is properly sealed. - Load Materials
Distribute stored items evenly across the three adjustable shelves, ensuring not to exceed the loading capacity. - Maintain Operation
Keep the cabinet door closed during normal use to maintain humidity control. - Prepare for Shipment
Protect structural and sealing components using reinforced wooden-crate packaging when shipment is required.
How does the integrated dual-system architecture reduce nitrogen consumption by over 50% compared to standard nitrogen-only cabinets?

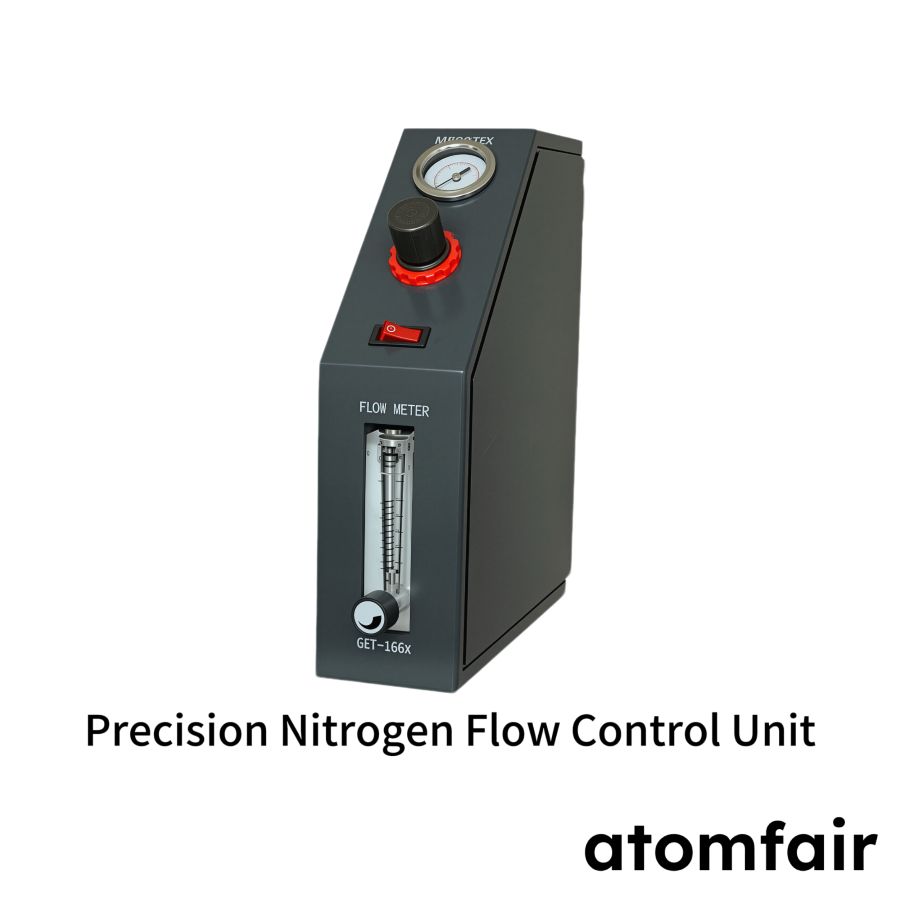

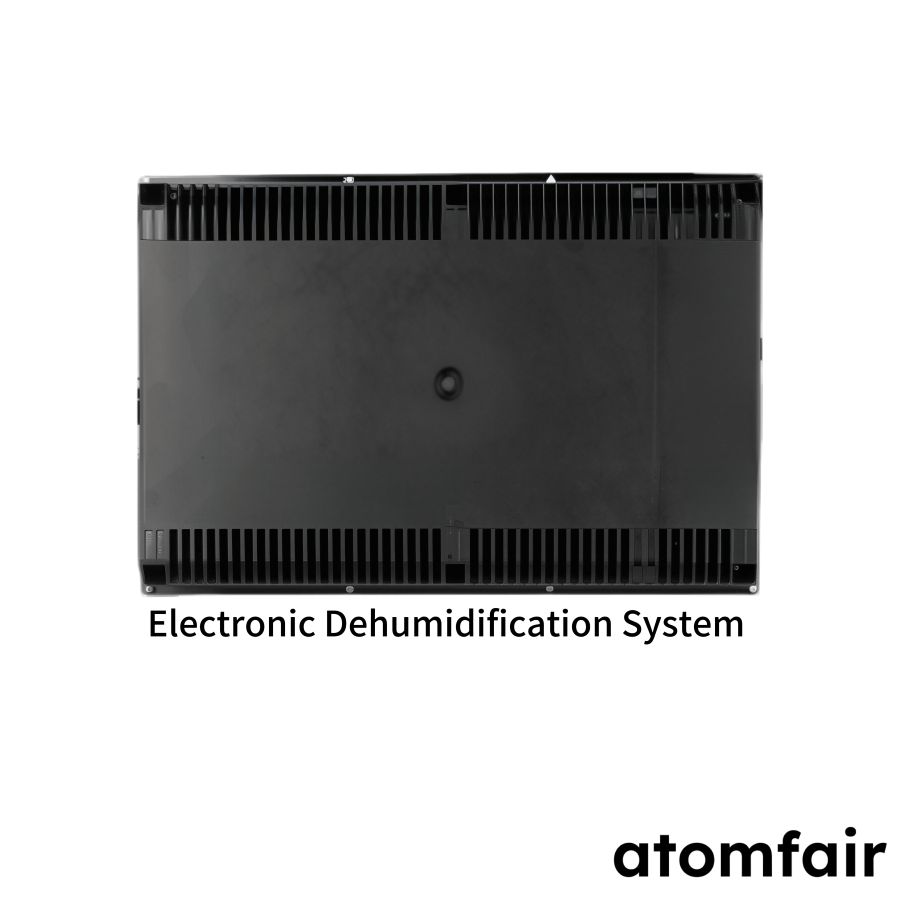

The cabinet combines an electronic dehumidification core with regenerative absorbent polymer and a precision nitrogen-control device, operating under fully automatic switching logic based on internal humidity conditions. This integrated efficiency is explicitly designed to reduce nitrogen usage by more than 50% relative to ordinary nitrogen cabinets, as stated in the product specifications.
Can this cabinet safely store both moisture-sensitive and electrostatic-discharge-sensitive materials simultaneously?
Yes, the 320 L Moistureproof Nitrogen Integrated Cabinet features an anti-static cabinet body with an anti-static exterior coating over 1.2 mm galvanized steel, making it suitable for electrostatic-control areas and ESD-sensitive material handling. The product explicitly lists applications including moisture-sensitive electronic parts and ESD-sensitive materials, supported by the dual humidity and electrostatic protection design.
What infrastructure requirements must be verified before installing this cabinet for nitrogen-purged operation?
Installation requires a stable indoor surface, verification of power and gas connections, and confirmation of stable gas-supply conditions before operation. The cabinet supports optional on-site nitrogen generator configuration for applications preferring an internal supply. Additionally, door sealing and level installation must be checked after delivery, as noted in the handling and storage instructions.
The 320L Moistureproof Nitrogen Integrated Cabinet (AF-MNIC320F) combines an electronic dehumidification core with a precision nitrogen control valve in an anti-static steel enclosure, achieving a humidity range of 1-60% RH and reducing nitrogen consumption by over 50% compared to nitrogen-only cabinets. The dual-mode architecture provides rapid low-humidity recovery for ESD-sensitive materials, but requires stable external nitrogen supply and the base galvanized steel body lacks corrosion resistance for aggressive chemical storage environments.
Positive
- Integrated dual-system architecture reduces nitrogen use: The electronic dehumidification core works in tandem with a precision nitrogen control device, automatically switching modes to maintain low humidity while consuming over 50% less nitrogen than conventional nitrogen-only cabinets, lowering operational gas costs.
- Anti-static cabinet body for ESD-sensitive materials: The 1.2 mm galvanized steel cabinet with anti-static exterior coating provides a controlled electrostatic discharge environment, making it suitable for storage of moisture-sensitive electronic components, optical parts, and other ESD-sensitive laboratory materials.
Trade-offs
- Requires stable external nitrogen supply: The integrated nitrogen control system depends on a reliable external gas source; operation is not possible without a connected nitrogen line or generator, adding infrastructure and supply chain requirements.
- Base cabinet material not inherently corrosion-resistant: The standard cabinet is constructed from galvanized steel with anti-static coating, which may not be suitable for storage of corrosive chemicals or in highly humid environments without the optional stainless steel upgrade.
