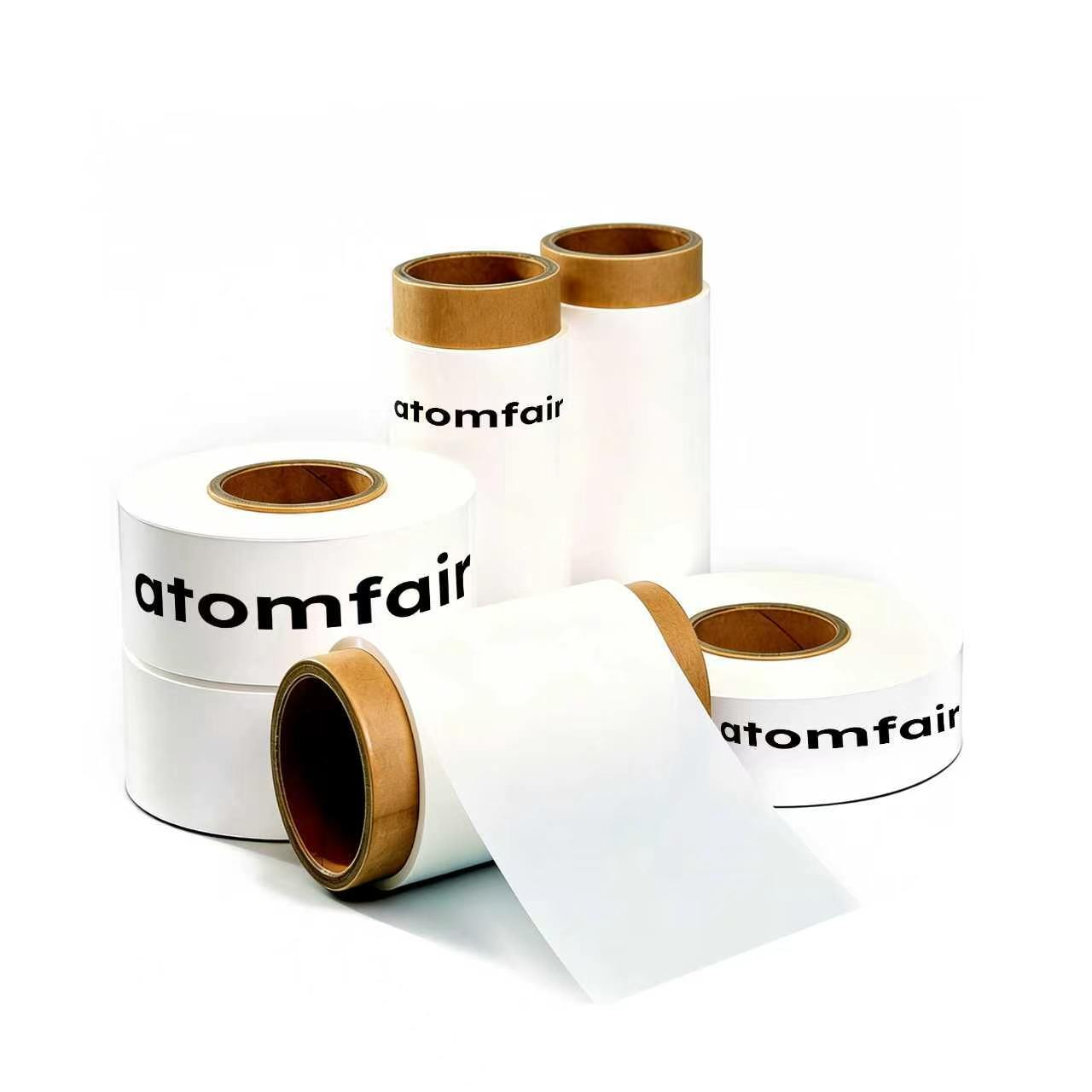

ATOMFAIR® WET-PROCESS PE SEPARATOR 20UM (75MM × 20M)RESEARCH GRADE MATERIAL
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
The wet-process polyethylene separator is a microporous membrane used for electrode isolation in lithium-ion battery assembly. Storage requires a sealed, dry, well-ventilated environment away from heat sources to maintain dimensional stability and prevent thermal degradation.
- Thermal Shrinkage: The separator exhibits anisotropic thermal shrinkage of 1.4% MD and 0.1% TD at elevated temperatures, requiring careful alignment during cell assembly.
- Puncture Strength: A minimum puncture strength of 722 grams ensures resistance against dendritic penetration but requires avoidance of sharp objects during handling.
- Melting Temperature: The polyethylene base film melts at 135°C, imposing a strict upper temperature limit for drying and electrolyte filling processes.
- Storage Conditions: Storage must be in a sealed, dry, and well-ventilated environment to prevent moisture absorption and oxidation.
- Handling Precautions: The separator must be handled with care to avoid severe collision, extrusion, or creasing that could compromise its mechanical integrity.
How does the 20 μm thickness of this wet-process PE separator affect its puncture strength compared to thinner alternatives?
The 20 μm thickness delivers a puncture strength of 722 g, substantially higher than thinner wet-process PE separators such as the 7 μm (339 g) and 9 μm (410 g) variants. This is achieved by combining a thicker base film with a porosity of 41% and a surface density of 11 g/m², which collectively enhance mechanical robustness while maintaining ionic conductivity.
Can this 20 μm wet-process PE separator be used directly in lithium-ion battery pouch cells originally designed for dry-process PP separators?
Direct substitution is possible but requires careful evaluation of thermal and mechanical compatibility. This PE separator melts at 135°C, which is 32°C lower than typical dry-process PP separators (167°C), potentially altering shutdown behavior. Additionally, its longitudinal thermal shrinkage of 1.4% MD and 0.1% TD must be validated against the cell's lamination and electrolyte compatibility to avoid wrinkling or short-circuit risks.
What are the specific storage and handling requirements for this wet-process PE separator to maintain its 722 g puncture strength?
Store the separator sealed in a normal or low-temperature, dry, well-ventilated environment, away from fire and heat sources. During transportation, avoid exposure to sunlight, rain, severe collision, and extrusion, as mechanical abuse can introduce micro-defects that degrade the puncture strength and overall integrity of the 20 μm film.
The Atomfair Wet-process PE Separator (AF-PE20, 20μm) offers a puncture strength of 722 g and a melting temperature of 135 °C, making it suitable for laboratory-scale battery assembly where mechanical robustness and controlled thermal shutdown are required. Its balanced porosity (41 %) and air permeability (224 s) support ion transport, while the low transverse thermal shrinkage (0.1 %) ensures dimensional stability during cell fabrication.
Positive
- High puncture strength: With a puncture strength of 722 g, this separator provides strong resistance against electrode particle penetration, reducing short-circuit risk in experimental cells.
- Low transverse thermal shrinkage: Transverse thermal shrinkage is only 0.1 %, and longitudinal shrinkage is 1.4 %, ensuring minimal dimensional change during battery assembly and thermal exposure.
Trade-offs
- Low melting temperature: The melting temperature of 135 °C is typical for PE separators and represents a trade-off between shutdown capability and thermal stability; cells must be operated well below this threshold to avoid catastrophic failure.
- Stringent storage conditions required: The product must be sealed, stored in a dry, ventilated, low‑temperature environment away from heat and fire sources, and handled with care to avoid physical damage or environmental degradation.
