Color Touchscreen Constant Temperature and Humidity Chamber, 495 L,-10-100℃
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Supplier: Atomfair
Brand: ATOMFAIR®
|
The chamber requires a stable indoor installation with service access around the unit and a dedicated 220V, 50Hz power supply rated at 4150W. Users must ensure that air inlets, test ports, shelving, drain areas, doors, and controller surfaces remain accessible for cleaning and maintenance to prevent overheating or operational failure.
- Power Supply Requirement: The chamber requires a dedicated AC 220 V, 50 Hz power supply rated at 4150 W with appropriate circuit protection.
- Installation Space: The chamber external dimensions are 850 x 1095 x 1935 mm, requiring a stable indoor location with sufficient service access around the unit.
- Accessibility for Maintenance: Air inlets, test ports, shelving, drain areas, doors, and controller surfaces must remain accessible for cleaning and maintenance.
- Transport and Positioning: The packed chamber must be kept upright and moved using suitable lifting equipment to prevent impact damage.
- Alarm and Protection Systems: Independent alarms monitor over-temperature, overload, over-current, compressor overheating, fan overheating, and water-shortage conditions to protect the chamber and samples.
This procedure guides the user through the initial installation, positioning, and power preparation of the chamber. Following these steps ensures safe operation and compliance with the manufacturer's handling requirements.
Required Equipment: Lifting equipment
- Confirm Installation Space
Confirm that the installation space accommodates the chamber's external dimensions of 850 x 1095 x 1935 mm with adequate service access. - Prepare Power Supply
Prepare a dedicated AC 220 V, 50 Hz power supply rated at 4150 W with appropriate circuit protection. - Transport and Position Chamber
Keep the packed chamber upright and use suitable lifting equipment during unloading and positioning. - Ensure Accessibility for Maintenance
After installation, ensure that air inlets, test ports, shelving, drain areas, doors, and controller surfaces remain accessible for cleaning and maintenance.
How does the capacitive humidity sensor in the BH-500CL avoid wet-bulb maintenance issues common in traditional chambers?
The BH-500CL uses an imported capacitive electronic humidity sensor instead of a wet-bulb psychrometer, eliminating the need for wick replacement and water reservoir refilling. This sensor provides continuous real-time humidity monitoring from 10%RH to 95%RH with a deviation of ±3%RH, supporting stable long-term conditioning and stability-study workflows without routine wet-bulb maintenance.
Can the BH-500CL be integrated into a laboratory monitoring network for remote alarm and data logging?
Yes, the chamber supports optional RS485 communication interface and software, a wireless alarm system, and an App-based control system for remote status review and alarm notification. These options allow the unit to be adapted for data output, programmable operation, and off-site monitoring, reducing operational risk by notifying operators of abnormal conditions such as over-temperature or water shortage.
What are the installation space and power requirements for the 495 L BH-500CL chamber?
The chamber has external dimensions of 850 x 1095 x 1935 mm and requires a stable indoor laboratory installation with service access around the unit. It operates on AC 220 V, 50 Hz with a power input of 4150 W, so dedicated circuit capacity and proper ventilation must be confirmed before installation.
The Atomfair BH-500CL constant temperature and humidity chamber provides 495 L of controlled environment with a -10 to 100 °C range and 10% to 95% RH, using an imported sealed-compressor refrigeration system and capacitive humidity sensing for continuous monitoring without wet-bulb maintenance. Its color touchscreen controller supports 100 programs with 1000 segments and 999 cycles, while the 304 mirror-finish stainless-steel interior and 50 mm test port suit pharmaceutical stability studies and materials conditioning, though the 4150 W power draw and 850 x 1095 x 1935 mm footprint require dedicated lab infrastructure.
Positive
- Wide humidity range with capacitive sensor: The 10% to 95% RH band and imported capacitive electronic humidity sensor eliminate wet-bulb maintenance, enabling continuous real-time humidity monitoring for stability studies and conditioning workflows.

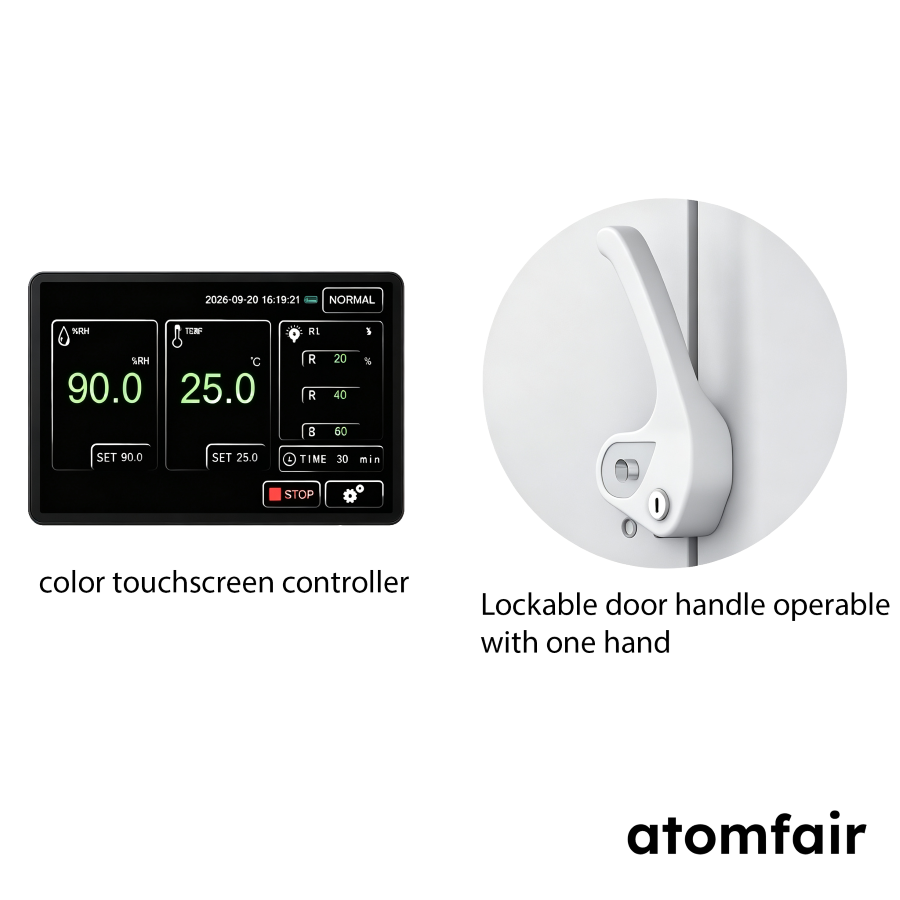

- High-capacity programmable controller: The color touchscreen controller supports 100 programs, 1000 segments, and 999 cycle steps with multilingual interface and live curve display, allowing complex staged methods for incubation or climate simulation.
Trade-offs
- High power and space requirements: The 4150 W power input and external dimensions of 850 x 1095 x 1935 mm demand dedicated electrical capacity and sufficient lab floor space with service access, which may constrain installation in smaller facilities.
- Single-phase power supply limitation: The unit requires AC 220 V, 50 Hz single-phase supply, which may not be compatible with three-phase lab infrastructure without additional power conditioning or transformer installation.
