Temperature Humidity Chamber 100 L BPS-100CH ATOMFAIR®

Programmable Touchscreen Constant Temperature and Humidity Chamber, 100 L

Research-grade laboratory product

Product Overview

Programmable Touchscreen Constant Temperature and Humidity Chamber, 100 L is a programmable touchscreen constant temperature and humidity chamber built for scientific research, biotechnology tests, pharmaceutical packaging, industrial raw-material studies and product lifetime evaluation. This configuration provides 100 l chamber volume, RT+10 to 85 C, 80%rh to 95%rh humidity control, imported 304 mirror-finish stainless-steel chamber interior and programmable color touchscreen controller with curve display and multi-language interface for stable day-to-day laboratory operation.

This family combines fluorine-free design, imported 304 stainless-steel inner chamber construction, balancing temperature-humidity control, test-port access and color-touchscreen editing as key chamber elements. The chamber combines balancing-control refrigeration system with multi-point safety protection with high-temperature humidity sensor for real-time monitoring, 2 shelves and an interior size of 500 x 400 x 550 mm, supporting incubation, cultivation, climate simulation or conditioned test work where repeatable environmental control is important.

This range is intended for laboratories that want staged touchscreen programs, multilingual interface, stored curves, PID self-tuning and safety protection in one humidity-chamber platform. Installation planning can be based on the external size of 650 x 800 x 1310 mm and the stated power requirement of 1650 W. Optional functions such as embedded printer; rs485 communication interface and software; wireless alarm system; communication interface and embedded printer are alternative options that should be selected according to the required configuration allow the unit to be adapted for alarm notification, data output, programmable operation, atmosphere support or other application-specific requirements.

Technical Specifications

Parameter	Specification / Available Values
Atomfair Model	AF-BCH0100
Manufacturer Model	BPS-100CH
Capacity	100 L
Temperature Control Range	RT+10 to 85 C
Temperature Resolution	0.1 C
Temperature Fluctuation / Uniformity	High temperature: +/- 0.5 C; low temperature: +/- 1 C
Humidity Function	80%RH to 95%RH
Humidity Deviation	+/- 3%RH
Controller	programmable color touchscreen controller with curve display and multi-language interface
Chamber Material	imported 304 mirror-finish stainless-steel chamber interior
Power / Input	1650 W
Power Supply	AC 220 V, 50 Hz
Working Environment	+5 to 30 C
Sensor Configuration	high-temperature humidity sensor for real-time monitoring
Cooling System	balancing-control refrigeration system with multi-point safety protection
Internal Dimensions	500 x 400 x 550 mm
External Dimensions	650 x 800 x 1310 mm
Shelves / Light Decks	2 shelves
Program Function	Touchscreen controller supports up to 100 programs, 1000 segments and 999 cycle steps, with a maximum time setting of 99 h 59 min per segment
Configuration Note	No refrigeration function is stated for this CH model

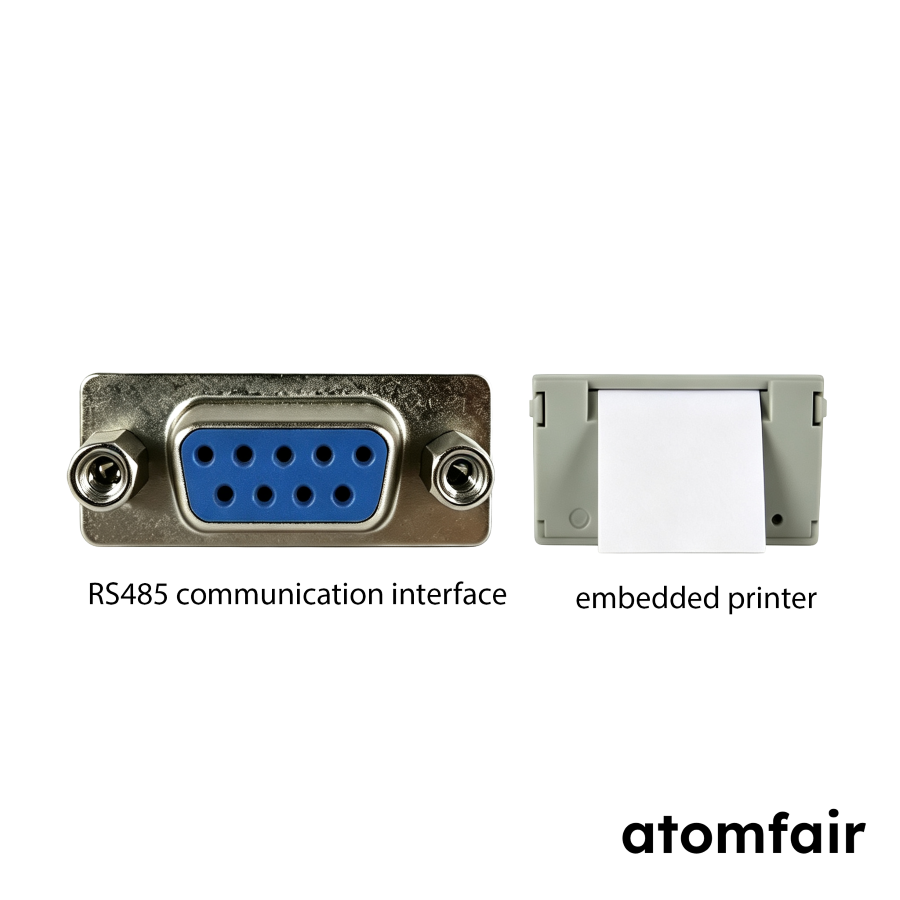

Optional Accessories and Functions	embedded printer; RS485 communication interface and software; wireless alarm system; communication interface and embedded printer are alternative options that should be selected according to the required configuration

Performance Features

Color touchscreen operation helps simplify program editing, parameter review and real-time curve observation during chamber use. This improves parameter review, setpoint editing and day-to-day operation in controlled chamber workflows.
Large program capacity supports staged environmental methods that need repeated cycles and multiple segments. This supports staged test methods and repeatable laboratory workflows that need cycle-based control.
PID auto-tuning helps correct temperature and humidity deviations quickly for more stable chamber control. This supports humidity-sensitive incubation, cultivation, conditioning and stability-study applications.
Balancing-control refrigeration and imported stainless-steel chamber construction support reliable long-duration operation. This helps support repeated cleaning, chamber hygiene and long-duration laboratory use.
Independent alarm and protection functions cover over-temperature, overload, over-current, fan and compressor conditions. This helps maintain dependable low-temperature performance and stable chamber recovery during repeated use.
Optional communication, printer and wireless-alarm functions make it easier to store, replay and supervise chamber records. This reduces operational risk by helping protect samples and notifying operators when abnormal conditions occur.

APPLICATION SCOPE: Suitable for scientific research, biotechnology tests, pharmaceutical packaging, industrial raw-material studies and product lifetime evaluation in universities, research institutes, pharmaceutical quality-control laboratories, agricultural research programs and industrial test environments that require controlled chamber operation.

HANDLING: Confirm installation space against 650 x 800 x 1310 mm, prepare the specified power supply, and keep air inlets, test ports, shelving, drain areas, doors and controller surfaces accessible for cleaning and maintenance. Every unit is shipped with reinforced packaging to reduce movement and impact during transport; keep the packed chamber upright and use suitable lifting equipment during unloading and positioning.

IMPORTANT NOTICE: Confirm the exact controller type, lighting form, humidity function, communication option and accessory package before ordering. Any displayed amount refers to the chamber body only and does not include freight. Freight is quoted separately and should be confirmed according to the delivery location and shipping method.

LABORATORY PROCUREMENT SUPPORT

For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.

E-MAIL: inquiry@atomfair.com

Supplier: Atomfair

Brand: ATOMFAIR®

This chamber requires a controlled ambient temperature between +5 and 30°C and a dedicated power supply of AC 220V, 50Hz. Operation outside the specified temperature range of RT+10 to 85°C and humidity range of 80% to 95%RH may cause failure or hazard.

Ambient Temperature Constraint: The working environment must stay within the allowed range of +5 to 30°C to maintain proper temperature control.
Power Supply Constraint: The power supply must match the specified AC 220V, 50Hz to prevent electrical hazard.
Transport and Positioning Constraint: The chamber must be kept upright during transport and positioning to avoid compressor damage.
Accessibility Constraint: Air inlets, test ports, shelving, drain areas, doors, and controller surfaces must remain accessible for cleaning and maintenance.
Protection Systems: Over-temperature, overload, over-current, fan, and compressor alarms provide protection during operation.

HowTo

Position the chamber in the designated location and prepare the power supply. Verify the ambient conditions and ensure all access points are clear before operation.

Required Equipment: Lifting equipment

Unpack and Position
Position the chamber upright and unpack using suitable lifting equipment.
Confirm Installation Space
Confirm installation space against the external dimensions of 650 x 800 x 1310 mm.
Prepare Power Supply
Prepare the specified power supply of AC 220 V, 50 Hz.
Ensure Accessibility
Ensure air inlets, test ports, shelving, drain areas, doors, and controller surfaces remain accessible for cleaning and maintenance.
Verify Ambient Conditions
Verify the ambient temperature is between +5 and 30°C.

FAQ

Can the BPS-100CH constant temperature and humidity chamber control humidity below 80% RH?

No, the humidity control range of the BPS-100CH is specified as 80%RH to 95%RH. The chamber does not include dehumidification capability; for applications requiring lower humidity levels, a different model with a broader humidity range or active dehumidification should be selected.

Does the BPS-100CH chamber provide active cooling to achieve temperatures below room temperature?

No, the BPS-100CH model does not include active refrigeration. Its temperature control range is RT+10 to 85°C, meaning it can only heat above ambient temperature. For testing below ambient, a model with a refrigeration system is required.

What are the power and environmental installation requirements for the BPS-100CH humidity chamber?

The chamber requires a 220 V, 50 Hz power supply with a power consumption of 1650 W, and must be operated in an ambient environment of +5 to 30°C. Installation space should accommodate the external dimensions of 650 x 800 x 1310 mm, with adequate clearance for air inlets, service ports, and maintenance access.

Assessment

The Atomfair BPS-100CH constant temperature and humidity chamber provides 100 L capacity with a temperature range of RT+10 to 85 °C and humidity control from 80% to 95% RH, using a balancing-control refrigeration system and imported 304 stainless-steel interior for laboratory incubation, cultivation, and stability testing. Its programmable color touchscreen supports up to 100 programs with 1000 segments, but the absence of refrigeration below ambient and a narrow humidity range limit its applicability for low-temperature or low-humidity protocols.

Positive

Large program capacity for staged methods: The touchscreen controller supports up to 100 programs, 1000 segments, and 999 cycle steps, enabling complex, repeatable environmental profiles for long-duration stability studies or multi-step incubation protocols.
Corrosion-resistant stainless-steel chamber: The imported 304 mirror-finish stainless-steel interior facilitates repeated cleaning and maintains hygiene in pharmaceutical or biotech applications, reducing cross-contamination risk during sequential tests.

Trade-offs

No refrigeration below ambient temperature: The CH model lacks a refrigeration function, limiting the temperature control range to RT+10 °C and preventing use for low-temperature stability tests or cold-condition simulations.
Narrow humidity range above 80% RH: Humidity control is restricted to 80–95% RH with a ±3% RH deviation, making the chamber unsuitable for low-humidity conditioning or tests requiring precise moisture levels below 80% RH.
