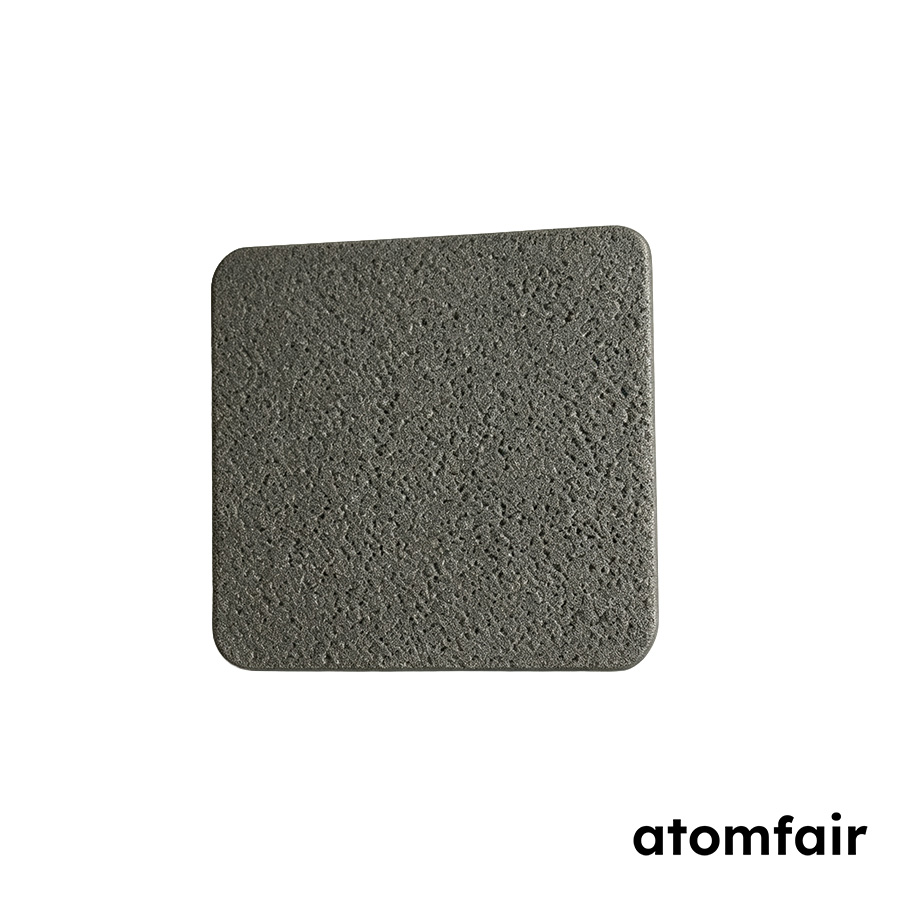

Sintered Titanium and Porous Titanium Foam Sheet, 20 µm Filtration Rating, 160 × 160 × 10 mm, 30 PPI, 1 Piece
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For filtration accuracy, dimensional confirmation, material compatibility or custom configuration review, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This document records the handling, compatibility, and cleaning constraints that apply to the sintered porous titanium foam sheet. It is intended to guide installation and maintenance decisions without restating catalogue specifications.
- Media Compatibility Validation: Confirm chemical compatibility of the titanium sheet with the process fluid before installation.
- Operating Envelope Confirmation: Verify that operating pressure, temperature, target flow, and dimensional tolerance are suitable for the intended assembly.
- Mechanical Protection: Protect the porous surface from crushing and contamination during handling, storage, and installation.
- Cleaning Procedure Selection: Choose backflushing, steam, ultrasonic, or compatible chemical cleaning according to the process medium and operating procedure.
- Assembly Integration Review: Review cutting, welding, or machining requirements carefully before integration to avoid damaging the porous structure.
Inspect the sheet before installation to confirm it is free of deformation and contamination. Install the sheet without applying point loads, then clean it using a process-appropriate method after use.
Required Equipment: Backflush system, Steam cleaning equipment, Ultrasonic bath
- Inspect the sheet
Inspect the delivered sheet for visible deformation, crushing, or particulate contamination before installation. - Verify operating conditions
Verify media compatibility and confirm that the target flow, operating pressure, and temperature remain within the assembly's design limits. - Install without point loading
Install the sheet into the housing or filter assembly, avoiding point loads that can crush or deform the porous structure. - Clean after use
Clean the sheet after use using an appropriate method such as backflushing, steam, ultrasonic, or chemical cleaning.
How does the combination of a 20 µm filtration rating with a 30 PPI cellular structure affect flow resistance versus particle retention in this sintered titanium foam sheet?
The sheet balances fine particle retention (20 µm rating) with low flow resistance due to its open cellular architecture: approximately 0.85 mm cell spacing at 30 PPI combined with a porosity of 35–45% creates interconnected through-pores that maintain relative air permeability of about 1 × 10⁻⁴ L/(cm²·min·Pa). This design allows stable separation at micron level while preserving open pathways for liquid or gas flow.
What are the maximum service temperature and material compatibility constraints for using this sintered titanium foam sheet in corrosive process streams?
The recommended service temperature is ≤300°C. The titanium/titanium-alloy construction provides inherent corrosion resistance in compatible media; however media compatibility must be reviewed against operating pressure and temperature before installation because aggressive chemicals may still degrade performance over time.
What cleaning methods are recommended for maintaining filtration performance of this porous titanium foam sheet without damaging its structure?
Backflushing with compatible fluids is effective for reversible fouling; steam cleaning can remove organic residues; ultrasonic cleaning dislodges fine particulates from deep pores; chemical cleaning with appropriate solvents may be used depending on process medium. The porous surface must be protected from crushing forces during handling to preserve pore integrity.
This 160 × 160 × 10 mm sintered titanium foam sheet pairs a 20 µm filtration rating with a 30 PPI open-cell structure at 35–45% porosity and roughly 0.85 mm cell spacing, supporting lab-scale filtration and porous-electrode work; media compatibility, pressure, temperature, and target flow still require confirmation before installation.
Positive
- 20 µm rating with 30 PPI open-cell structure: The sheet combines 20 µm filtration precision with a 30 PPI cellular structure and 35–45% interconnected through-pore porosity, preserving open pathways for solid-liquid, gas-solid, and gas-liquid separation.
- Corrosion-resistant titanium with cleanability: The sintered titanium or titanium-alloy construction provides corrosion resistance, heat tolerance, and low flow resistance, and supports cutting, welding, basic machining, and cleaning by backflushing, steam, ultrasonic, or compatible chemical procedures.
Trade-offs
- Service temperature limited to 300°C: The recommended service temperature is ≤300°C, so processes operating above this limit exceed the stated safe operating envelope for this sintered titanium sheet.
- Porous surface requires careful handling: The porous surface must be protected from crushing and contamination, and the selected cleaning method must be matched to the process medium and operating procedure to avoid damaging the structure.
