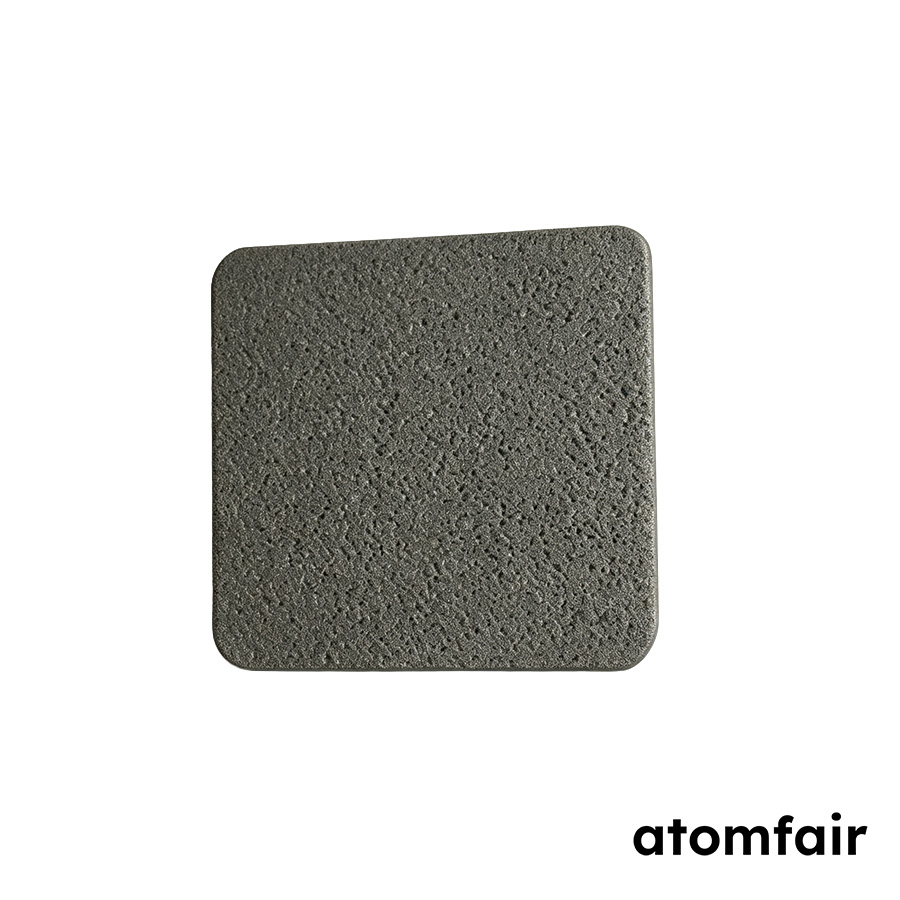

Sintered Titanium and Porous Titanium Foam Sheet, 20 µm Filtration Rating, 120 × 120 × 10 mm, 80 PPI, 1 Piece
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For filtration accuracy, dimensional confirmation, material compatibility or custom configuration review, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This sintered titanium foam sheet requires media compatibility verification before installation due to potential corrosion or reactivity with certain process fluids. The porous structure must be protected from crushing and contamination during handling and cleaning to maintain filtration integrity.
- Media Compatibility: Verify chemical compatibility of the titanium alloy with the intended process fluid, including temperature, pH, and chloride concentration, to prevent corrosion or degradation.
- Temperature Limit: The recommended service temperature does not exceed 300°C; operation above this limit may cause structural degradation or reduced mechanical strength.
- Mechanical Handling: Protect the porous surface from mechanical crushing, impact, or deformation during handling, cutting, welding, or machining to avoid compromising pore structure.
- Cleaning Procedure: Select a cleaning method—backflushing, steam, ultrasonic, or chemical—based on the process medium and operating procedure to avoid residual contamination or damage.
- Pressure and Flow: Review operating pressure and target flow conditions against the sheet's mechanical properties and permeability to ensure stable operation without rupture or excessive pressure drop.
What is the trade-off between the 20 µm filtration rating and flow permeability for this 80 PPI sintered titanium foam sheet?
The sheet has a relative air permeability of 1 × 10⁻⁴ L/(cm²·min·Pa) at the 20 µm filtration rating. For coarser filtration ratings (up to 100 µm), the air permeability can range from 1.5 to 800 m³/(h·m²·kPa), indicating that finer ratings like 20 µm will have lower permeability. This trade-off is critical when balancing separation precision versus flow rate in filtration assemblies.
What are the temperature and media compatibility constraints for this 20 µm titanium foam sheet in industrial filtration applications?
The recommended service temperature is ≤300°C, above which the titanium structure may degrade. The sheet is corrosion-resistant in compatible media such as water, chemicals, and pharmaceuticals, but media compatibility must be reviewed for each specific process. The 120×120×10 mm sheet fits standard assemblies, but operating pressure and flow should be verified before installation.
How can this porous titanium foam sheet be cut, welded, or cleaned without damaging its interconnected pore structure?
The metallic construction supports cutting, welding, and basic machining for assembly integration, but the porous surface must be protected from crushing and contamination. Recommended cleaning methods include backflushing, steam, ultrasonic, or chemical procedures depending on the process medium. For custom dimensions, contact the manufacturer with required length, width, thickness, PPI, and filtration rating.
This 120 × 120 × 10 mm sintered titanium foam sheet combines a 20 µm filtration rating with an 80 PPI cellular structure, 35–45% interconnected porosity, and approximately 0.32 mm cell spacing, supporting liquid- and gas-phase separation trials with cleanable, corrosion-resistant titanium construction and a 300°C service ceiling.
Positive
- 20 µm rating with 80 PPI structure: The 20 µm filtration rating is paired with an 80 PPI interconnected titanium framework (35–45% porosity, ~0.32 mm cell spacing), supporting solid-liquid, gas-solid, and gas-liquid separation while preserving open flow paths and low flow resistance.
- Corrosion-resistant, cleanable titanium construction: The sintered titanium structure provides corrosion resistance, heat tolerance, and reuse through backflushing, steam, ultrasonic, or compatible chemical cleaning; cutting, welding, and basic machining are supported for assembly integration.
Trade-offs
- Service temperature limited to 300°C: Recommended service temperature is ≤300°C, so the sheet is not suitable for higher-temperature filtration or thermal processes without confirming compatibility with the operating envelope.
- Media compatibility and surface protection required: Media compatibility, operating pressure, temperature, target flow, and dimensional tolerance must be reviewed before installation, and the porous surface must be protected from crushing and contamination during handling and cleaning.
