Constant Temperature Humidity Chamber 50 L ATOMFAIR®

Programmable Touchscreen Constant Temperature and Humidity Chamber, 50 L

Research-grade laboratory product

Product Overview

Programmable Touchscreen Constant Temperature and Humidity Chamber, 50 L is a programmable touchscreen constant temperature and humidity chamber built for scientific research, biotechnology tests, pharmaceutical packaging, industrial raw-material studies and product lifetime evaluation. This configuration provides 50 l chamber volume, RT+10 to 85 C, 80%rh to 95%rh humidity control, imported 304 mirror-finish stainless-steel chamber interior and programmable color touchscreen controller with curve display and multi-language interface for stable day-to-day laboratory operation.

This family combines fluorine-free design, imported 304 stainless-steel inner chamber construction, balancing temperature-humidity control, test-port access and color-touchscreen editing as key chamber elements. The chamber combines balancing-control refrigeration system with multi-point safety protection with high-temperature humidity sensor for real-time monitoring, 2 shelves and an interior size of 350 x 300 x 500 mm, supporting incubation, cultivation, climate simulation or conditioned test work where repeatable environmental control is important.

This range is intended for laboratories that want staged touchscreen programs, multilingual interface, stored curves, PID self-tuning and safety protection in one humidity-chamber platform. Installation planning can be based on the external size of 720 x 620 x 725 mm and the stated power requirement of 1450 W. Optional functions such as embedded printer; rs485 communication interface and software; wireless alarm system; communication interface and embedded printer are alternative options that should be selected according to the required configuration allow the unit to be adapted for alarm notification, data output, programmable operation, atmosphere support or other application-specific requirements.

Technical Specifications

Parameter	Specification / Available Values
Atomfair Model	AF-BCH0050
Manufacturer Model	BPS-50CH
Capacity	50 L
Temperature Control Range	RT+10 to 85 C
Temperature Resolution	0.1 C
Temperature Fluctuation / Uniformity	High temperature: +/- 0.5 C; low temperature: +/- 1 C
Humidity Function	80%RH to 95%RH
Humidity Deviation	+/- 3%RH
Controller	programmable color touchscreen controller with curve display and multi-language interface
Chamber Material	imported 304 mirror-finish stainless-steel chamber interior
Power / Input	1450 W
Power Supply	AC 220 V, 50 Hz
Working Environment	+5 to 30 C
Sensor Configuration	high-temperature humidity sensor for real-time monitoring
Cooling System	balancing-control refrigeration system with multi-point safety protection
Internal Dimensions	350 x 300 x 500 mm
External Dimensions	720 x 620 x 725 mm
Shelves / Light Decks	2 shelves
Program Function	Touchscreen controller supports up to 100 programs, 1000 segments and 999 cycle steps, with a maximum time setting of 99 h 59 min per segment
Configuration Note	No refrigeration function is stated for this CH model

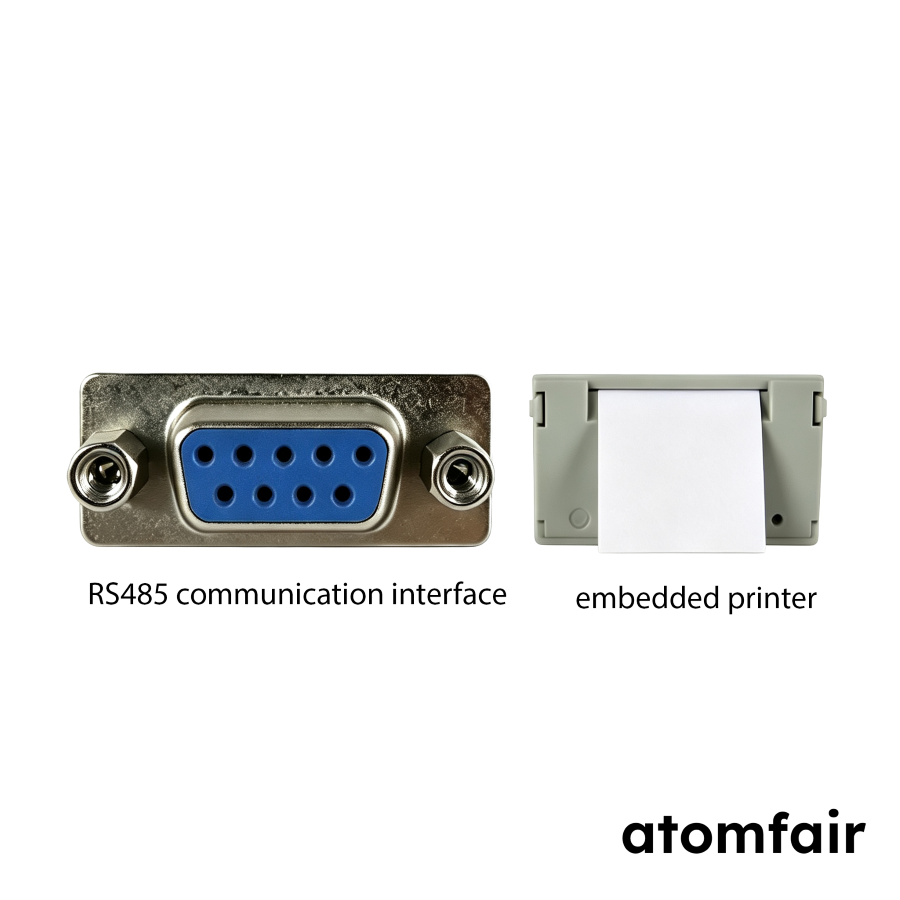

Optional Accessories and Functions	embedded printer; RS485 communication interface and software; wireless alarm system; communication interface and embedded printer are alternative options that should be selected according to the required configuration

Performance Features

Color touchscreen operation helps simplify program editing, parameter review and real-time curve observation during chamber use. This improves parameter review, setpoint editing and day-to-day operation in controlled chamber workflows.
Large program capacity supports staged environmental methods that need repeated cycles and multiple segments. This supports staged test methods and repeatable laboratory workflows that need cycle-based control.
PID auto-tuning helps correct temperature and humidity deviations quickly for more stable chamber control. This supports humidity-sensitive incubation, cultivation, conditioning and stability-study applications.
Balancing-control refrigeration and imported stainless-steel chamber construction support reliable long-duration operation. This helps support repeated cleaning, chamber hygiene and long-duration laboratory use.
Independent alarm and protection functions cover over-temperature, overload, over-current, fan and compressor conditions. This helps maintain dependable low-temperature performance and stable chamber recovery during repeated use.
Optional communication, printer and wireless-alarm functions make it easier to store, replay and supervise chamber records. This reduces operational risk by helping protect samples and notifying operators when abnormal conditions occur.

APPLICATION SCOPE: Suitable for scientific research, biotechnology tests, pharmaceutical packaging, industrial raw-material studies and product lifetime evaluation in universities, research institutes, pharmaceutical quality-control laboratories, agricultural research programs and industrial test environments that require controlled chamber operation.

HANDLING: Confirm installation space against 720 x 620 x 725 mm, prepare the specified power supply, and keep air inlets, test ports, shelving, drain areas, doors and controller surfaces accessible for cleaning and maintenance. Every unit is shipped with reinforced packaging to reduce movement and impact during transport; keep the packed chamber upright and use suitable lifting equipment during unloading and positioning.

IMPORTANT NOTICE: Confirm the exact controller type, lighting form, humidity function, communication option and accessory package before ordering. Any displayed amount refers to the chamber body only and does not include freight. Freight is quoted separately and should be confirmed according to the delivery location and shipping method.

LABORATORY PROCUREMENT SUPPORT

For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.

E-MAIL: inquiry@atomfair.com

Supplier: Atomfair

Brand: ATOMFAIR®

The chamber must be operated within an ambient temperature range of +5 to 30°C and connected to a dedicated AC 220 V, 50 Hz power supply. The unit requires upright positioning on a level surface with unobstructed air inlets, test ports, and drain areas to maintain safe operation.

Ambient Temperature Range: Operate the chamber only within an ambient temperature range of +5 to 30°C.
Electrical Supply: Connect the chamber to a dedicated AC 220 V, 50 Hz power supply rated at 1450 W.
Upright Orientation: Keep the chamber upright during transport, unloading, and positioning to prevent damage.
Accessibility Requirements: Ensure all air inlets, test ports, drain areas, doors, and controller surfaces remain accessible for cleaning and maintenance.
Space Requirements: Confirm that the installation space accommodates the external dimensions of 720 x 620 x 725 mm.

HowTo

This procedure outlines the steps to safely unpack, position, and connect the chamber for first-time use. Proper installation ensures reliable operation and extends equipment lifespan.

Required Equipment: Lifting equipment

Position the chamber
Use suitable lifting equipment to position the chamber upright on a level surface that meets the external dimensions of 720 x 620 x 725 mm.
Prepare and connect power supply
Prepare and connect the dedicated AC 220 V, 50 Hz power supply rated at 1450 W.
Verify accessibility
After installation, verify that all air inlets, test ports, shelving, drain areas, doors, and controller surfaces are unobstructed.

FAQ

Does the BPS-50CH constant temperature and humidity chamber provide active cooling or refrigeration?

No, this CH model does not include a refrigeration function. The temperature control range is RT+10 to 85°C, with a working environment of +5 to 30°C. This means the chamber can only cool to 15°C above ambient temperature at minimum. For applications requiring temperatures below ambient, a different model with refrigeration should be selected.

What data logging and remote monitoring options are available for the BPS-50CH chamber?

The chamber offers optional accessories including an embedded printer, RS485 communication interface with software, and a wireless alarm system. The programmable color touchscreen controller supports up to 100 programs, 1000 segments, and 999 cycle steps, with real-time curve display and PID auto-tuning. These options allow for data output, remote monitoring, and alarm notification, but must be specified at time of ordering.

What are the electrical installation requirements and safety protections for the BPS-50CH chamber?

The chamber requires AC 220V, 50Hz power supply with a rated input of 1450W. It includes independent alarm and protection functions for over-temperature, overload, over-current, fan, and compressor conditions. The external dimensions are 720 x 620 x 725 mm, and the working environment must be +5 to 30°C. Proper installation planning should ensure adequate space and power infrastructure.

Assessment

The Atomfair BPS-50CH (SKU: AF-LE-E-BPSC-0050-CH50) is a 50L programmable touchscreen constant temperature and humidity chamber with a working range of RT+10 to 85°C and 80% to 95% RH, utilizing a balancing-control refrigeration system and imported 304 stainless-steel interior for durable, contamination-resistant operation. Its controller supports up to 100 programs with 1000 segments and PID auto-tuning, making it suitable for staged stability studies and incubation protocols in laboratory settings.

Positive

Programmable Touchscreen and PID Control: The color touchscreen controller supports up to 100 programs, 1000 segments, and 999 cycles with PID auto-tuning, enabling precise, repeatable environmental profiles for multi-step protocols.
Corrosion-Resistant 304 Stainless-Steel Interior: The imported 304 mirror-finish stainless-steel chamber interior minimizes contamination and facilitates repeated cleaning, essential for pharmaceutical and biotech applications requiring strict hygiene.

Trade-offs

Limited Humidity and Temperature Range: Humidity control is restricted to 80%–95% RH and temperature spans only RT+10°C to 85°C, excluding low-humidity or sub-ambient conditioning without specified refrigeration support.
Ambient Operating and Infrastructure Dependencies: The chamber requires a working environment of +5 to 30°C and a 220 V, 50 Hz power supply with 1450 W capacity, limiting placement to climate-controlled labs with dedicated electrical infrastructure.
