Programmable LED Light Incubator 1000 L Capacity AF-M2B1000

Programmable LED Light Incubator, 1000 L

Research-grade laboratory product

Product Overview

Programmable LED Light Incubator, 1000 L is a programmable LED light incubator or artificial climate chamber designed for plant growth, tissue culture, seed germination, insect culture, BOD work and climate-controlled biological cultivation. This configuration offers 1000 l working volume, With lighting: 10 to 50 C; without lighting: 0 to 50 C, 0 to 50000 lx, six-step adjustable lighting, mirror-finish stainless-steel chamber interior and programmable controller with multi-segment temperature, humidity, light and time setting for controlled laboratory operation.

This long-duration programmable family is positioned for cultivation programs that require stable running over weeks or months, using imported compressors, mirror-finish chamber construction and a circulation-air layout that limits direct draft on plants. The chamber uses two imported compressors with alternating long-duration operation design together with infrared CO2 sensor when the optional atmosphere-control package is selected, 3 shelves, helping the unit fit continuous cultivation, incubation, climate simulation or stability workflows where repeatable environmental control matters.

The family is designed for cultivation work that benefits from adjustable lighting levels, programmable climate changes and optional alarm, communication or CO2 functions without exposing pricing or source-notes in the public page. Installation planning can be based on the external size of 1410 x 890 x 1950 mm with power requirement 2800 W. Optional functions such as rs485 or 232 communication interface and software; embedded printer; usb data storage; wireless alarm system; co2 inlet; infrared co2 controller; lighting control system allow the chamber to be configured for data logging, alarm notification, atmosphere support and application-specific monitoring.

Technical Specifications

Parameter	Specification / Available Values
Atomfair Model	AF-M2B1000
Capacity	1000 L
Temperature Control Range	With lighting: 10 to 50 C; without lighting: 0 to 50 C
Temperature Resolution	0.1 C
Temperature Fluctuation / Uniformity	+/- 1 C
Humidity Function	No active humidity control stated for this configuration
Humidity Deviation	+/- 5%RH to 7%RH

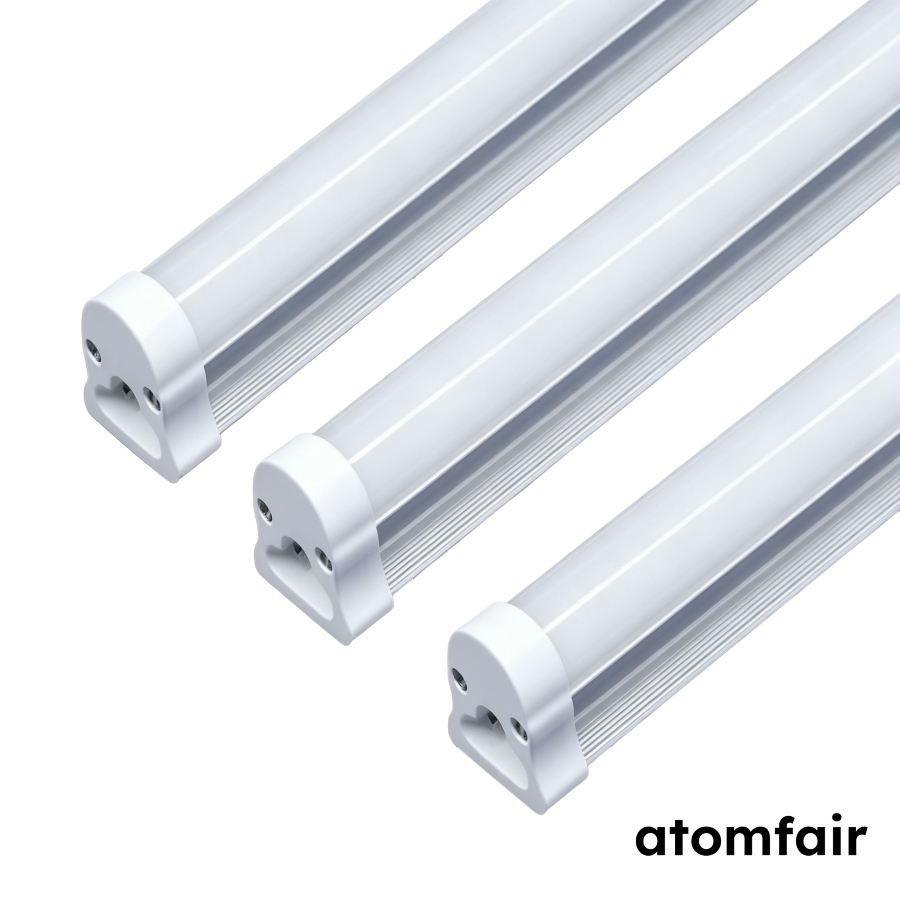

Lighting Configuration	0 to 50000 LX, six-step adjustable; daylight-lamp partition lighting; family lighting configurations range from top-mounted LED lighting to three-side and partition lighting systems
Controller	programmable controller with multi-segment temperature, humidity, light and time setting
Chamber Material	mirror-finish stainless-steel chamber interior
Power / Input	2800 W
Power Supply	AC 220 V, 50 Hz
Working Environment	+5 to 30 C
Sensor Configuration	infrared CO2 sensor when the optional atmosphere-control package is selected
Cooling System	two imported compressors with alternating long-duration operation design
Internal Dimensions	1050 x 590 x 1650 mm
External Dimensions	1410 x 890 x 1950 mm
Shelves / Light Decks	3 shelves
Program Function	30 program segments, each with time setting from 1 minute to 99 hours 59 minutes
Optional Accessories and Functions	RS485 or 232 communication interface and software; embedded printer; USB data storage; wireless alarm system; CO2 inlet; infrared CO2 controller; lighting control system

Performance Features

Long-duration running design uses imported compressors that automatically alternate to support continuous chamber operation. This supports dependable low-temperature performance and long-duration running stability.
Programmable control can set temperature, humidity, light intensity and time independently in multi-step processes. This helps improve environmental tracking for incubation, cultivation and stability-study workflows.
LED lighting is available in multiple chamber layouts, from top-mounted lighting to three-side or partition-style designs. This supports plant-growth or climate-chamber work that depends on repeatable illumination conditions.
Wireless alarm and fault-display functions help operators respond quickly when abnormal conditions appear. This helps protect samples and alert operators when abnormal conditions appear.
Optional CO2 inlet and infrared CO2 controller support specialized plant-growth workflows. This helps operators review setpoints, trends and alarms more efficiently during routine operation.
RS485 or 232 communication, USB export and printer options help create operation records and trend review. This supports more reliable day-to-day laboratory use in plant growth, tissue culture, seed germination, insect culture, BOD work and climate-controlled biological cultivation.

APPLICATION SCOPE: Suitable for plant growth, tissue culture, seed germination, insect culture, BOD work and climate-controlled biological cultivation in universities, research institutes, pharmaceutical quality-control laboratories, agricultural research programs and industrial test environments that require controlled chamber operation.

HANDLING: Confirm installation space against 1410 x 890 x 1950 mm, prepare the stated power supply, and keep air inlets, exhaust paths, shelves, ports, doors and control interfaces accessible for cleaning and maintenance. Every unit is shipped with reinforced packaging to reduce movement and impact during transport; keep the packed chamber upright and use suitable lifting equipment.

IMPORTANT NOTICE: Select the required controller, lighting, humidity, communication and optional accessory configuration before ordering. Any displayed amount refers to the chamber body only and does not include freight. Freight is quoted separately and should be confirmed with shipping details.

LABORATORY PROCUREMENT SUPPORT

For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.

E-MAIL: inquiry@atomfair.com

Supplier: Atomfair

Brand: ATOMFAIR®

This chamber must be connected to a power supply matching AC 220 V, 50 Hz with sufficient capacity for its 2800 W input and installed in a space that accommodates its external dimensions with accessible service points. Operate the unit only within the specified +5 to 30 C working environment and keep it upright during transport and positioning to protect the refrigeration system.

Power Supply Constraint: Confirm that the available electrical supply matches the stated AC 220 V, 50 Hz input before connecting the chamber.
Installation Space Constraint: Position the chamber in an area that accommodates its 1410 x 890 x 1950 mm external dimensions and keeps air inlets, exhaust paths, shelves, ports, doors and control interfaces accessible for cleaning and maintenance.
Transport Orientation Constraint: Keep the packed chamber upright and use suitable lifting equipment to reduce movement and impact during transport.
Working Environment Constraint: Operate the chamber only within the specified +5 to 30 C working environment to maintain reliable temperature control.
Configuration Constraint: Select the required controller, lighting, humidity, communication and optional accessory configuration before ordering because the displayed amount refers to the chamber body only.

HowTo

Install the chamber in a suitable laboratory space with access to air circulation paths and connect it to the specified AC power supply before programming. Configure the multi-segment controller for temperature, humidity, light intensity and time settings prior to loading samples.

Required Equipment: suitable lifting equipment

Inspect delivery
Inspect the delivered chamber for transport damage while keeping it upright and using suitable lifting equipment.
Position chamber
Position the chamber in an installation space that accommodates its external dimensions and keeps air inlets, exhaust paths, ports, doors and control interfaces accessible.
Connect power
Connect the chamber to a power supply matching AC 220 V, 50 Hz with capacity for its 2800 W input.
Set program
Set the desired multi-segment temperature, humidity, light intensity and time programs on the programmable controller.
Load samples
Place samples on the three shelves according to your cultivation protocol after setting the program.
Monitor operation
Monitor operation through the programmable controller and any optional alarm or communication interfaces.

FAQ

How does the alternating dual-compressor system enable long-duration continuous operation in the 1000 L LED incubator, and what temperature stability does it provide?

The 1000 L LED incubator uses two imported compressors with an alternating long-duration operation design, automatically cycling between compressors to support continuous chamber operation without single-unit fatigue. This design, combined with mirror-finish stainless-steel interior and circulation-air layout, maintains temperature fluctuation and uniformity within ±1°C across the 0–50°C range (without lighting) or 10–50°C (with lighting).

What optional communication and environmental control interfaces are available for the 1000 L programmable LED incubator to integrate with laboratory data systems?

The incubator offers optional RS485 or RS232 communication interface with software for data logging, USB data storage, and an embedded printer for trend review. Additionally, a wireless alarm system, CO2 inlet, and an infrared CO2 controller can be added to support atmosphere-controlled plant-growth workflows, though these are not included in the base configuration.

What are the external dimensions and power requirements that must be considered for installation of the 1000 L LED incubator?

The incubator measures 1410 x 890 x 1950 mm externally and requires a 2800 W power supply at AC 220 V, 50 Hz. Installation planning must also account for a working environment of +5 to 30°C and ensure adequate clearance for air inlets, exhaust paths, and door access to maintain stable long-duration operation.

Assessment

The Atomfair Programmable LED Light Incubator (1000 L) features a dual-compressor alternating design for continuous long-duration operation and a 30-segment programmable controller for precise environmental control, but lacks active humidity regulation and requires 2800 W power with substantial installation space.

Positive

Alternating dual-compressor design: Two imported compressors automatically alternate to support continuous chamber operation, enabling dependable low-temperature performance and long-duration running stability.
Multi-segment programmable controller: The controller supports up to 30 independent program segments with time settings from 1 minute to 99 hours 59 minutes, allowing precise environmental tracking for incubation and cultivation workflows.

Trade-offs

No active humidity control: This configuration does not include active humidity control; humidity deviation is stated as ±5%RH to 7%RH, which may limit applications requiring precise humidity regulation.
High power and space requirements: The unit requires 2800 W at 220 V 50 Hz and external dimensions of 1410 x 890 x 1950 mm, necessitating dedicated electrical infrastructure and adequate installation space.
