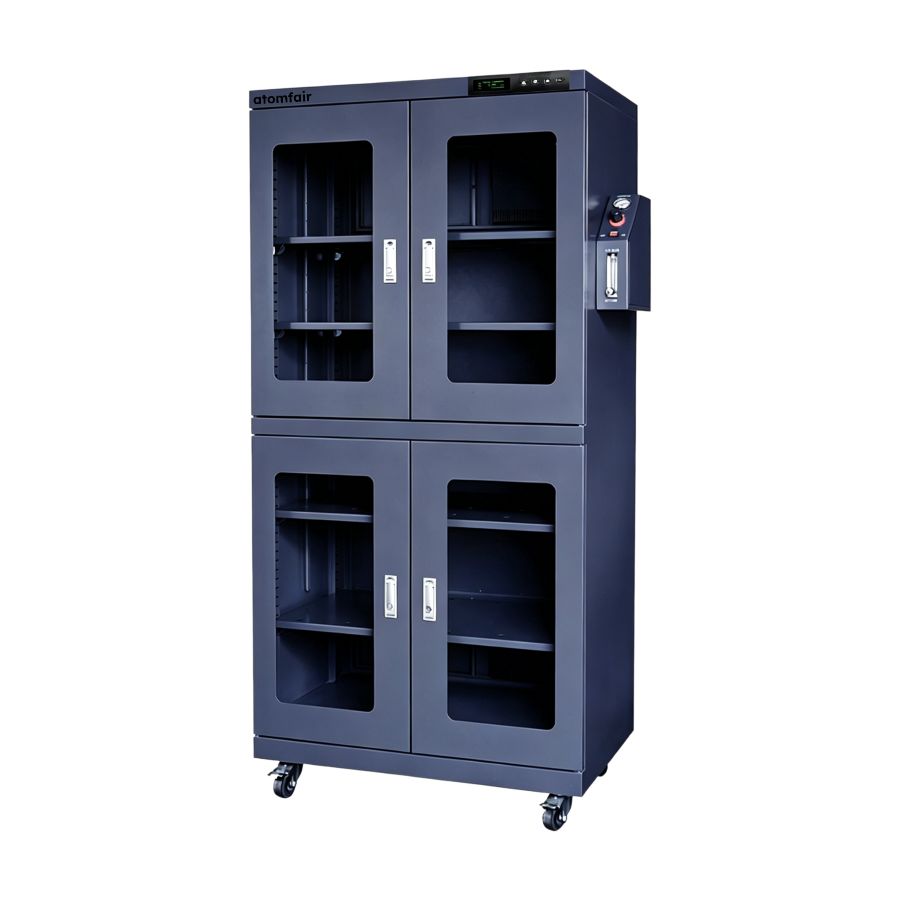

Nitrogen Dry Cabinet 875 L Anti-Static AF-MNIC875F ATOMFAIR®

875L Moistureproof Nitrogen Integrated Cabinet, Anti-Static Cabinet Body

Research-grade laboratory product

Product Overview

The 875 L configuration uses a anti-static cabinet body, a humidity control range of 1%-60% RH, outer dimensions of 900 × 600 × 1850 mm, inner dimensions of 855 × 550 × 1670 mm and 5 adjustable shelves.

This moistureproof nitrogen integrated cabinet combines electronic dehumidification with nitrogen control in one storage platform for efficient low-humidity recovery. It helps reduce moisture absorption, oxidation, optical haze, solderability loss and storage instability while lowering gas demand compared with ordinary nitrogen-only cabinet operation.

Typical application areas include research laboratories, electronics workshops, optical storage rooms, incoming-material control areas, powder and film storage spaces and quality-control environments that require low-humidity cabinet protection with efficient nitrogen management. This body type is suitable for electrostatic-control areas and ESD-sensitive material handling.

The cabinet combines 1.2 mm galvanized steel cabinet with anti-static exterior coating, tempered-glass viewing doors and magnetic sealing, an electronic dehumidification core with regenerative absorbent polymer, a precision nitrogen-control device, fully automatic switching between system modes and display-based cabinet management for dependable daily operation.

Technical Specifications

Parameter	Specification / Available Values
Atomfair Model	AF-MNIC875F
Product Family	Moistureproof Nitrogen Integrated Cabinet
Cabinet Body	Anti-static cabinet body
Nominal Capacity	875 L
Humidity Control Range	1%-60% RH
Outer Dimensions (W × D × H)	900 × 600 × 1850 mm
Inner Dimensions (W × D × H)	855 × 550 × 1670 mm
Adjustable Shelf Quantity	5
Cabinet Material	1.2 mm galvanized steel cabinet with anti-static exterior coating and 5 mm tempered-glass viewing doors
Control Mode	Fully automatic switching between dehumidification and nitrogen-control modes

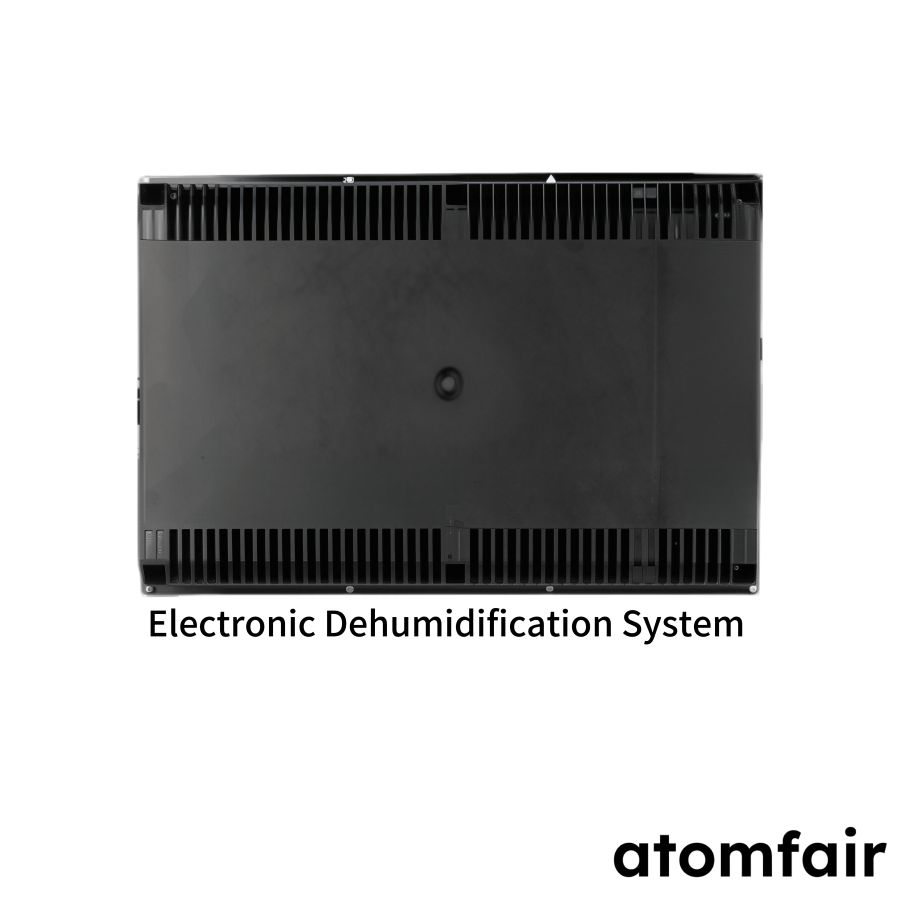

Dehumidification System	Electronic dehumidification core with regenerative absorbent polymer
Dehumidification Module Housing	ABS plus flame-retardant housing

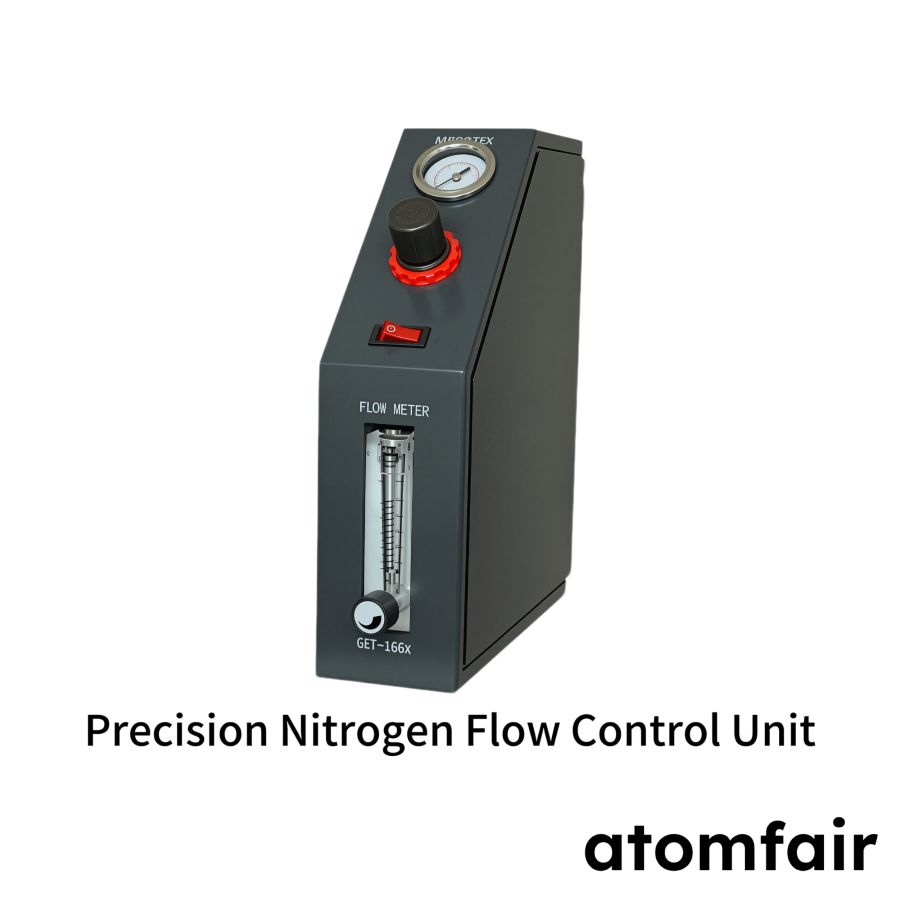

Nitrogen Control System	Precision nitrogen-control device for rapid cabinet humidity reduction
Integrated Efficiency	Designed to reduce nitrogen usage by more than 50% compared with ordinary nitrogen cabinets
Suitable Stored Materials	Moisture-sensitive electronic parts, optical components, powders, films and laboratory materials

Key Features and Advantages

Integrated dual-system architecture combining an electronic dehumidification core with a precision nitrogen-control device.
High-performance absorbent polymer and regenerative dehumidification design for repeat-use moisture control.
ABS plus flame-retardant housing on the dehumidification module for durable routine cabinet operation.
Fully automatic switching logic between dehumidification and nitrogen-control modes according to cabinet humidity conditions.
Integrated cabinet design intended to reduce nitrogen usage by more than 50% compared with ordinary nitrogen cabinets.

Optional Items and Consultation

Internal high-brightness LED lighting for improved visibility in cabinet interiors.
Stainless steel cabinet-body upgrade for cleaner or more corrosion-conscious storage environments.
Nitrogen generator configuration for applications that prefer an on-site nitrogen supply.
RS485 communication interface for PC-side monitoring and recorded cabinet-status management.
Over-humidity alarm device that triggers when measured humidity exceeds the configured set value.
If optional items are required, please contact inquiry@atomfair.com.

APPLICATION SCOPE: Suitable for research laboratories, electronics workshops, incoming-material control areas, powder and film storage rooms and quality-control environments that require low-humidity cabinet protection with efficient nitrogen management.

HANDLING & STORAGE: Install the cabinet on a stable indoor surface, keep the door closed during normal use, distribute stored items evenly across the 5 shelf levels, protect structural and sealing components during movement, and use reinforced wooden-crate packaging when shipment protection is required. Verify stable gas-supply conditions before operation.

IMPORTANT NOTICE: Confirm the correct model, cabinet body type, capacity and optional accessories before ordering. Inspect the cabinet after delivery, verify level installation and door sealing, and do not exceed the stated shelf-loading or application conditions. Confirm utility conditions such as power and gas connections before formal use.

TAILORED SOLUTIONS FOR RESEARCH

For bulk orders, configuration review, accessory matching or application-specific guidance, contact our engineering sales team.

EMAIL: inquiry@atomfair.com

Manufacturer: Atomfair LLC

Brand: ATOMFAIR®

This cabinet requires installation on a stable indoor surface with level positioning and sealed door operation. Nitrogen gas supply must be verified before use, and items must be distributed evenly across the five adjustable shelves.

Installation Surface Requirement: The cabinet must be placed on a stable indoor surface, leveled, and secured to prevent tipping.
Door Sealing and Operation: The door must be kept closed during normal operation to maintain low-humidity conditions and nitrogen efficiency.
Load Distribution: Stored items must be distributed evenly across the five adjustable shelves to avoid exceeding shelf-loading limits.
Gas Supply Verification: Stable nitrogen gas supply conditions must be verified before operating the cabinet to ensure proper humidity control.
Utility Connections: Power and gas connections must be confirmed and appropriate for the cabinet's requirements before formal use.

HowTo

Follow these steps to safely install, configure, and operate the cabinet. Proper setup ensures optimal humidity control and nitrogen efficiency while preventing damage to stored materials.

Inspect Delivery
Inspect the cabinet after delivery for any visible damage or misalignment.
Verify Level and Sealing
Verify that the cabinet is installed level and that the door seals properly.
Place on Stable Surface
Place the cabinet on a stable indoor surface with adequate clearance for ventilation.
Keep Door Closed
Keep the door closed during normal operation to maintain internal humidity and nitrogen efficiency.
Distribute Items Evenly
Distribute stored items evenly across all five adjustable shelves to prevent overloading.
Verify Gas Supply
Verify that a stable nitrogen gas supply is connected and available before starting the cabinet.
Confirm Utility Connections
Confirm that the power and gas connections meet the cabinet's specifications before formal use.

FAQ

How does the integrated electronic dehumidification and nitrogen control system reduce nitrogen consumption compared to standard nitrogen-only cabinets, and what are the trade-offs in humidity recovery speed?

The integrated system uses the electronic dehumidification core as the primary moisture control mode, activating the precision nitrogen device only for rapid humidity reduction when needed. This automatic switching is designed to cut nitrogen usage by more than 50% relative to ordinary nitrogen cabinets. The trade-off is that the regenerative absorbent polymer dehumidification core requires periodic regeneration cycles, but the fully automatic switching logic maintains overall efficiency without manual intervention.

What types of ESD-sensitive materials and components are suitable for storage in this anti-static nitrogen cabinet, and are there any constraints on powder or film storage?

The cabinet is explicitly designed for electrostatic-control areas and ESD-sensitive material handling, including moisture-sensitive electronic parts, optical components, powders, and films. The anti-static exterior coating on the 1.2mm galvanized steel body provides a dissipative environment. For powders and films, the manual instructs distributing stored items evenly across the five adjustable shelves to avoid airflow obstruction and maintain uniform humidity control.

What are the installation and utility requirements for the 875L moistureproof nitrogen integrated cabinet, and how should it be prepared for operation?

Installation requires a stable indoor surface and the door must remain closed during normal use. Before operation, stable gas-supply conditions must be verified, and power and gas connections confirmed. The cabinet consumes electrical power for the electronic dehumidification core and requires a nitrogen supply line for the precision nitrogen-control device. The manual also recommends inspecting the cabinet after delivery, verifying level installation and door sealing, and not exceeding the stated shelf-loading or application conditions.

Assessment

The 875L Moistureproof Nitrogen Integrated Cabinet (model AF-MNIC875F) with anti-static body provides a dual-system approach to low-humidity storage, combining electronic dehumidification and nitrogen control for a 1-60% RH range, with claimed nitrogen savings over 50%, designed for ESD-sensitive and moisture-sensitive materials in research and quality-control environments.

Positive

Integrated dual-system humidity control: Combines electronic dehumidification with regenerative absorbent polymer and precision nitrogen control, enabling rapid low-humidity recovery and reducing nitrogen usage by over 50% compared to conventional nitrogen-only cabinets.
Anti-static cabinet body for ESD safety: Constructed with 1.2 mm galvanized steel and anti-static exterior coating, the cabinet is suitable for electrostatic-control areas and ESD-sensitive material handling, protecting sensitive components from electrostatic discharge.

Trade-offs

Requires stable gas supply infrastructure: The nitrogen control system depends on a stable gas-supply connection; users must verify gas conditions before operation, making it unsuitable for facilities without reliable nitrogen supply.
Indoor installation and load distribution constraints: The cabinet must be installed on a stable indoor surface, doors kept closed during use, and stored items evenly distributed across the 5 shelves to prevent structural imbalance or sealing degradation.
