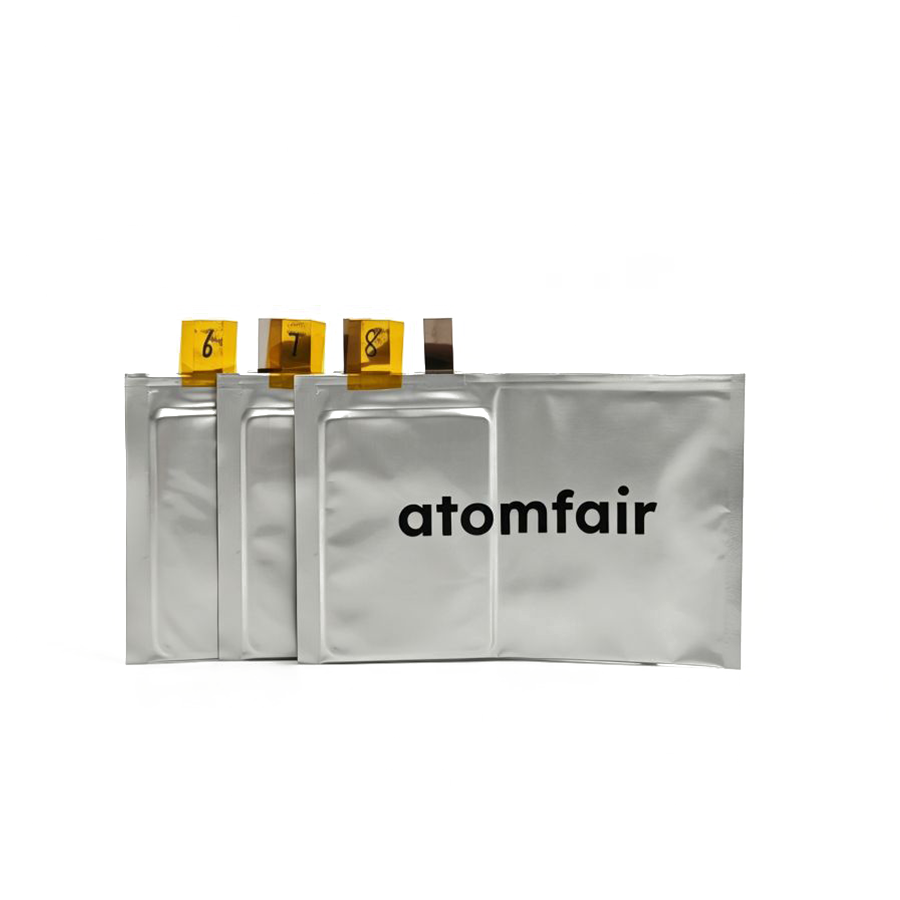

ATOMFAIR® 20Ah high-capacity anode-free Ni90 battery dry pouch cells standing with serialized amber-sealed terminal tabs.

Ni90 Carbon Coated Copper 20Ah Dry Pouch Cell ATOMFAIR®

$79.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research grade Ni90 dry pouch cell, 20Ah, 2.3-4.2V, 97.4% active material, carbon-coated copper foil. Ideal for solid-state studies. Order now.

SKU: AFMSUMDG185
Category:
Tags:
Brands:

Description

ATOMFAIR NI90 CARBON COATED COPPER 20AH DRY POUCH CELL

RESEARCH GRADE MATERIAL

Product Overview
The ATOMFAIR Ni90 Carbon-Coated Copper 20Ah Dry Pouch Cell represents a high-capacity, electrolyte-free advanced electrochemical benchmark tailored for rigorous solid state electrolyte pouch cell scale-up studies. By completely omitting pre-filled liquid chemistries, this extensive multi-layer dry platform integrates an ultra-high specific capacity Ni0.9Mn0.03Co0.07 positive matrix directly with an engineered Cu-C carbon-coated copper foil substrate current collector. This structural scaling provides flawless experimental control and isolates pure multi-layer interfacial degradation behaviors during validation testing. It serves as an uncompromised testing control for global institutions optimizing commercial-scale cell form factors while aligning with target carbon coated copper foil price frameworks.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Cell Architecture Type Dry Pouch Cell Configuration (Electrolyte Unfilled)
Nominal Capacity 20 Ah
Voltage Range 2.3 V × 4.2 V
NP Ratio – (Optimized Multi-Layer Baseline)
2. Cathode (Positive Electrode) Parameters
Material Type Ni0.9Mn0.03Co0.07 (High Nickel 9-Series Matrix)
Active Material Percent 97.4%
Specific Capacity 215 mAh/g
Compaction Density 3.3 g/cc
Coating Areal Density 30 mg/cm2
Dimensions 83 × 107 mm
3. Anode (Negative Electrode) Parameters
Material Type Cu/C (Carbon-Coated Copper Foil Current Collector)
Active Material Percent –
Specific Capacity –
Compaction Density –
Coating Areal Density –
Dimensions 85 × 109 mm
4. Separator & Physical Package Metrics
Separator Specification 12 um PE + 2 um ceramic coating
Stacking Layer Configuration 38/39 High-Density Stacked Dry Structure
Manufacturing Rules Processed under strict ISO 9001 compliance standards conditions
Alternative Options Explore our related large-scale dry cell catalog. For urgent technical custom dimensions or multi-layer stacking adjustments, please contact our support team.

Key Features & Advantages
  • Unfilled 20Ah Scaled Architecture: Shipped hermetically vacuum-sealed and electrolyte-free, giving research teams extensive parameter control during large-format solid state or custom chemistry matching.
  • Premium High-Nickel Ni90 Cathode: Engineered with optimized 215 mAh/g specific capacity to sustain stable structural phase pathways across demanding heavy-load evaluation routines.
  • Advanced Cu/C Carbon-Coated Copper: Specially coated conductive layer reduces interfacial polarization and ensures highly uniform current density distributions across large surface dimensions.
  • 38/39 High-Density Layer Assembly: Masterfully stacked boundary surfaces optimize internal contact integrity, yielding reliable cell-to-cell performance metrics.

APPLICATION SCOPE: High-capacity pouch battery prototype benchmarking, large-format custom electrolyte verification testing, multi-layer solid-state barrier research, and industrial-grade battery materials science R&D.
PACKAGING: Industrial-grade vacuum-sealed multi-layer aluminum-plastic dry protective pouch with individual batch-tracking validation control logs.
IMPORTANT NOTICE: This large-format dry pouch cell core is highly sensitive to ambient moisture exposure. Keep vacuum packs completely sealed and handle exclusively within an anhydrous inert gas glovebox environment to prevent contamination or premature degradation before electrolyte injection and cell validation.

Frequently Asked Technical Questions

Why is ATOMFAIR Ni90 Pouch Cell preferred as a solid state electrolyte pouch cell?

ATOMFAIR Ni90 Pouch Cell functions as a premier solid state electrolyte pouch cell for advanced systems. It delivers an ultra-high Ni90 cathode chemistry matched with dense Cu-C matrices, significantly boosting performance metrics and phase purity during laboratory testing workflows.

how to prevent moisture degradation in lithium batteries?

To successfully solve how to prevent moisture degradation in lithium batteries without secondary contamination, this material must be handled strictly according to inert gas glovebox storage protocols before thermal processing.

How does ATOMFAIR Ni90 Pouch Cell compare to traditional alternative options regarding operational stability?

Compared to standard alternatives, the optimized matrix of ATOMFAIR Ni90 Pouch Cell incorporates specialized chemical doping. This unique architecture dramatically enhances structural resistance against degradation, preserving long-term validation integrity.

What material processing benefits does the microstructure of ATOMFAIR Ni90 Pouch Cell offer?

Boasting engineered particle structuring and optimized specific surface area, this product offers superior sinterability. The controlled form factor facilitates lower thermal processing thresholds and promotes ideal grain boundary integration during cell fabrication.

How is the phase purity and quality control of this research-grade batch validated?

Every competitive batch undergoes rigid analytical quality validation testing. Total elemental and metallic impurities are strictly regulated below strict industry thresholds to eliminate parasitic electronic leakage and maintain uncompromised data reproducibility.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR

This dry pouch cell is designed exclusively for solid state electrolyte pouch cell scale-up studies. The cell requires the addition of a compatible solid electrolyte before electrochemical testing.

  • Electrolyte Integration Requirement: The dry cell must be filled with a compatible solid electrolyte prior to any electrochemical activation.

How does the 97.4% active material loading in the Ni90 cathode affect the achievable areal capacity of the dry pouch cell?

The cathode achieves 215 mAh/g specific capacity at 3.3 g/cc compaction density and 30 mg/cm² areal loading, yielding an areal capacity of 6.45 mAh/cm². This high areal capacity enables the 20 Ah nominal capacity within the 38/39-layer stack, but may require careful interface management in solid-state electrolyte systems.

Is this dry pouch cell compatible with both oxide and sulfide solid electrolytes for comparative degradation studies?

The cell is designed for solid-state electrolyte scale-up studies; its Ni90 cathode and carbon-coated copper anode provide a stable baseline. The 12 µm PE separator with 2 µm ceramic coating prevents short circuits and is compatible with most solid electrolyte formats, though specific compatibility should be validated per system.

What are the structural considerations for handling the 38/39-layer dry pouch cell before electrolyte infiltration?

The 38/39 high-density stacked dry structure is designed to maintain electrode alignment during handling and shipping. The cathode (83×107 mm) and anode (85×109 mm) dimensions ensure clearance, and the dry configuration eliminates risks from liquid electrolyte leakage. Handle with care to avoid layer dislodgment.

The ATOMFAIR Ni90 Carbon Coated Copper 20Ah Dry Pouch Cell is a high-capacity electrolyte-free multi-layer platform designed for solid-state electrolyte scale-up research, featuring a 97.4% active material Ni0.9Mn0.03Co0.07 cathode and a carbon-coated copper foil anode current collector. Its dry construction provides a pristine baseline for interfacial studies, but requires electrolyte filling and formation capabilities, and does not disclose the NP ratio, necessitating user optimization.

Positive

  • Ultra-High Active Cathode Loading: The Ni0.9Mn0.03Co0.07 cathode achieves 97.4% active material content with a specific capacity of 215 mAh/g and compaction density of 3.3 g/cc, enabling high-energy-density research configurations.
  • Dry Pouch Architecture for Controlled Studies: As an electrolyte-free 38/39-layer stacked dry cell, it eliminates liquid electrolyte interference, allowing precise isolation of multi-layer interfacial degradation behaviors essential for solid-state electrolyte scale-up validation.

Trade-offs

  • Electrolyte Not Included – Filling Required: The cell is delivered dry and unfilled, requiring the user to develop or possess electrolyte dispensing, wetting, and formation capabilities, adding infrastructure and process overhead.
  • NP Ratio Not Explicitly Specified: The NP ratio is listed as a dash with only 'Optimized Multi-Layer Baseline' commentary, meaning the actual N/P balance is undisclosed and must be independently determined for proper cell balancing.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
