LED Plant Growth Chamber, 490 L, with Humidity Control
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
Supplier: Atomfair
Brand: ATOMFAIR®
|
Operate the chamber on an AC 220 V 50 Hz supply within a working environment of 0 to 35 C. Maintain clearance around air inlets and exhaust paths and keep the unit upright during transport and installation.
- Electrical Supply Constraint: Connect the chamber only to an AC 220 V 50 Hz power supply capable of supporting the stated input requirement.
- Ambient Working Environment: Operate the chamber only within a working environment of 0 to 35 C.
- Airflow Clearance: Keep air inlets, exhaust paths, shelves, ports, doors and control interfaces accessible for cleaning and maintenance.
- Transport Orientation: Keep the packed chamber upright and use suitable lifting equipment to reduce movement and impact during transport.
Confirm the installation site and power supply before unpacking the chamber. Position the unit upright with clear airflow paths, connect power, and program the controller before loading samples.

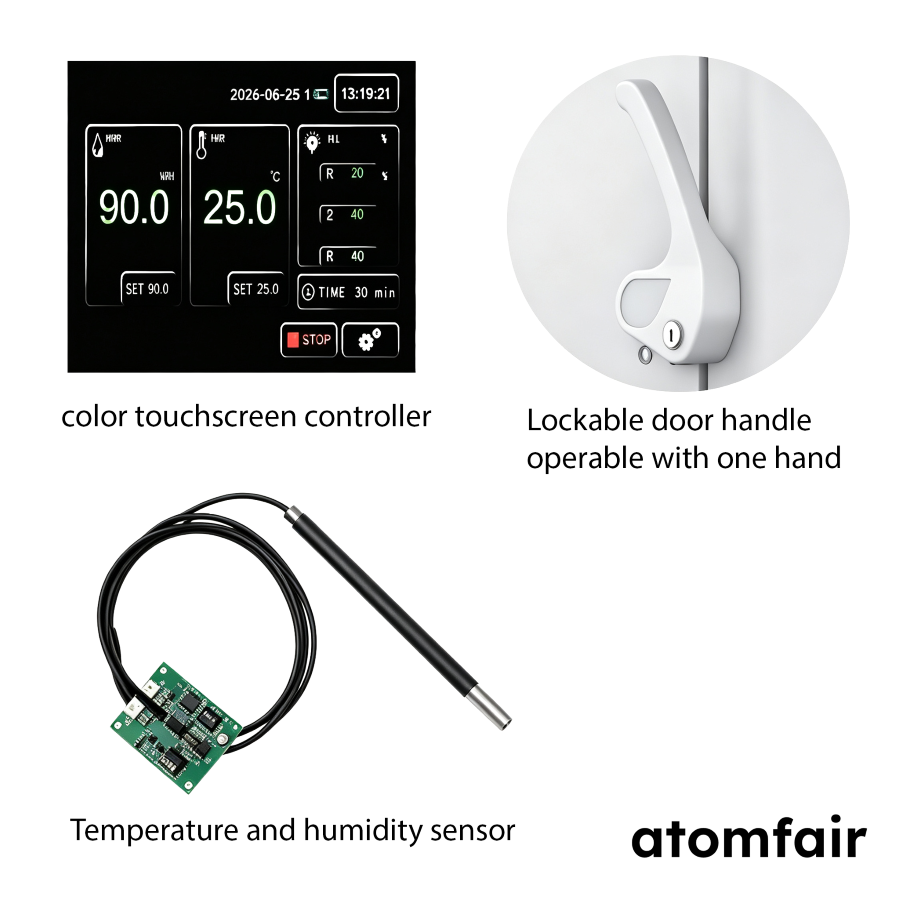

Required Equipment: suitable lifting equipment, 7-inch touchscreen programmable controller
- Confirm installation site
Confirm installation space against the external dimensions of the chamber and prepare the stated AC 220 V 50 Hz power supply. - Inspect packaging
Inspect the reinforced packaging for transit damage while keeping the packed chamber upright. - Position chamber
Move the chamber using suitable lifting equipment and place it on a level surface with accessible air inlets and exhaust paths. - Connect power
Connect the chamber to the prepared AC 220 V 50 Hz power supply rated for the stated input requirement. - Program controller
Set temperature, humidity, lighting intensity and time segments on the touchscreen programmable controller. - Verify setpoints
Verify that the chamber reaches the programmed setpoints before introducing plant or tissue samples. - Load samples
Load samples onto adjustable shelves with spacing that allows circulation-air flow across each layer.
How does the lighting configuration affect the temperature control range of the LED Plant Growth Chamber 490L with humidity control?
The temperature control range depends on the lighting layer configuration: without light, the range is 5 to 45°C; with single-layer light, it narrows to 10 to 45°C; with double-layer light, it further narrows to 15 to 45°C. This trade-off occurs because the LED decks generate heat, limiting the minimum achievable temperature when lights are active, which must be considered when designing experiments that require both high light intensity and low temperatures.
Can the LED Plant Growth Chamber 490L be integrated with CO2 control for advanced plant research?
Yes, the chamber supports optional CO2 inlet and infrared CO2 controller, enabling precise atmosphere control for enhanced plant growth studies. Additional optional functions like RS485/232 communication, USB data storage, wireless alarm, and app control further expand integration capabilities for advanced research workflows.
What are the electrical and space requirements for installing the LED Plant Growth Chamber 490L with humidity control?
The chamber requires a 2900 W power supply at AC 220V, 50 Hz, and should be installed in a working environment of 0 to 35°C. Its external dimensions are 820 x 910 x 1810 mm, so adequate clearance for air inlets, exhaust paths, and door access is necessary. Use suitable lifting equipment and keep the unit upright during installation, as it is shipped with reinforced packaging.
The LED Plant Growth Chamber, 490 L, with Humidity Control (SKU AF-LE-E-PGCH-0490-HUMD) offers dual-chamber LED lighting with programmable environmental control, suitable for plant growth and climate simulation. Trade-offs include temperature range limitations with active lighting and a restricted humidity range of 50–90% RH.
Positive
- Dual-Chamber Programmable LED Lighting: Two independent chambers with layered LED lighting, supporting tricolor standard spectrum and optional full-spectrum, four-color, or high-intensity monochromatic modules, enabling tailored illumination for different cultivation stages.
- Multi-Segment Environmental Programming: The 7-inch touchscreen controller allows programming of temperature, humidity, lighting intensity, and time across multiple segments, facilitating complex environmental cycles for incubation, cultivation, and stability studies.
Trade-offs
- Temperature Range Constrained by Lighting: The operable temperature range narrows with active lighting: 5–45 °C without light, 10–45 °C with single-layer light, and 15–45 °C with double-layer light, limiting low-temperature operation when full illumination is required.
- Limited Dehumidification Capability: Humidity control is restricted to 50–90% RH with a deviation of ±3% RH at 80% RH, providing no dehumidification below 50% RH, which may not suit low-humidity applications.
