LED Plant Growth Chamber, 490 L
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
Supplier: Atomfair
Brand: ATOMFAIR®
|
Operate the chamber within 0 to 35 °C ambient temperature and connect to AC 220 V, 50 Hz with 2800 W capacity. Ensure air inlets and exhaust paths remain unobstructed during operation and maintain upright orientation during transport and installation.
- Electrical Hazard Mitigation: Connect the chamber to a dedicated circuit and do not operate with damaged power cables or in wet environments.
- Ventilation Clearance: Keep air inlets and exhaust paths free from obstructions to ensure proper cooling and compressor operation.
- Transport Orientation: Transport the chamber only in an upright position using suitable lifting equipment to prevent compressor damage.
- Ambient Temperature Range: Operate the chamber only in ambient temperatures between 0 and 35 °C to maintain reliable performance.
Install the chamber in a location with 0–35 °C ambient temperature and adequate ventilation. Connect to a dedicated AC 220 V, 50 Hz power supply rated for 2800 W and maintain upright orientation throughout transport and setup.
Required Equipment: Lifting equipment (e.g., forklift or pallet jack), Power supply cable (included), Shelf support brackets (included), 7-inch touchscreen controller (integrated)
- Inspect for transit damage
Inspect the chamber for any transit damage, including the exterior, doors, and control panel, before installation. - Position chamber upright
Position the chamber upright in the final location using a forklift or pallet jack, ensuring a level surface and adequate clearance around all sides. - Connect power supply
Connect the power cable to a dedicated AC 220 V, 50 Hz electrical outlet capable of supplying 2800 W continuously. - Set environmental parameters

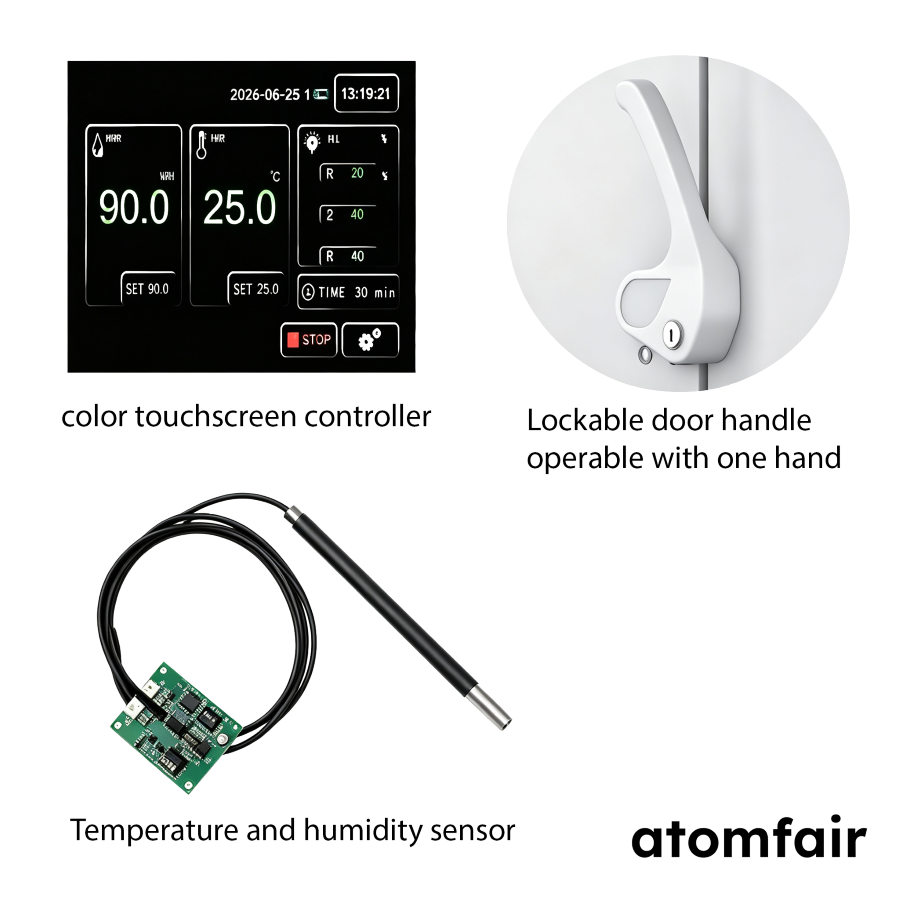

Set the desired environmental parameters using the programmable touchscreen controller, including temperature, lighting schedule, and multi-segment program if required.
How does the LED lighting configuration affect the temperature control range in the 490 L plant growth chamber?
The temperature control range depends on the lighting load. Without light, the range is 5 to 45°C. With single-layer light, it narrows to 10 to 45°C, and with double-layer light, it further narrows to 15 to 45°C. This means the achievable low-temperature limit is reduced when both LED decks are active, a key consideration for cold-stage cultivation or germination protocols.
Can the 490 L LED plant growth chamber be integrated with CO2 monitoring for closed-loop atmosphere control?
Yes, the chamber supports optional CO2 inlet and an infrared CO2 controller for closed-loop atmosphere regulation. When combined with the wireless alarm system and app control, this allows automated CO2 supplementation and remote alerting, which is critical for photosynthesis studies or high-yield tissue culture where CO2 levels must be maintained within a narrow band.
What are the installation infrastructure requirements for the AF-PGC0490 plant growth chamber?
The chamber requires a dedicated AC 220 V, 50 Hz power supply rated at 2800 W and a footprint of 820 x 910 x 1810 mm. Installation space must allow clear air inlets and exhaust paths, and the unit should be kept upright with suitable lifting equipment due to its reinforced packaging. Confirm these dimensions and power capacity before ordering to avoid site-fit issues.
The LED Plant Growth Chamber, 490 L features dual-chamber LED lighting with programmable control and SUS304 stainless steel interior, but its temperature range is constrained by lighting load (minimum 15°C with double-layer light) and lacks active humidity control, making it suitable for general plant growth and climate simulation where precise humidity regulation is not required.
Positive
- Dual independent chambers with programmable LED lighting: The dual-chamber LED cultivation lighting with multi-segment programming supports segmented cultivation cycles, improving environmental tracking for incubation, cultivation, and stability-study workflows.
- SUS304 stainless steel interior with adjustable shelving: The SUS304 chamber construction and adjustable shelf supports facilitate easy cleaning and flexible configuration, enabling reliable use in plant growth, seed germination, tissue culture, and algae growth applications.
Trade-offs
- Temperature range constrained by lighting load: The temperature control range shifts upward with active lighting: without light 5-45°C, with single-layer light 10-45°C, with double-layer light 15-45°C. This limits low-temperature experiments when high-intensity lighting is required.
- No active humidity control in this configuration: The chamber does not include active humidity control; only a humidity sensor is referenced for H-series configurations. Humidity deviation is ±3%RH at 80%RH, but without active regulation, applications requiring precise humidity setpoints are constrained.
