LED Plant Growth Chamber 350 L Programmable ATOMFAIR®

LED Plant Growth Chamber, 350 L

Research-grade laboratory product

Product Overview

LED Plant Growth Chamber, 350 L is a LED plant growth chamber designed for plant growth, seed germination, tissue culture, crop seedling studies, algae growth and laboratory climate simulation. This configuration offers 350 l working volume, Without light: 5 to 45 C; with single-layer light: 10 to 45 C; with double-layer light: 15 to 45 C, standard tricolor led spectrum, optional full-spectrum and high-intensity modules lighting, sus304 stainless-steel chamber interior and 7-inch color touchscreen programmable controller for controlled laboratory operation.

The family uses a foamed cabinet structure, adjustable shelf support, modular LED lighting and a circulation-air design intended to keep each layer within a stable control band. The chamber uses dual imported compressors with long-duration operation design together with imported temperature-humidity sensor for H-series configurations, 2 light decks, helping the unit fit continuous cultivation, incubation, climate simulation or stability workflows where repeatable environmental control matters.

The series is presented for natural-environment simulation and long-duration cultivation, with optional CO2 and data functions available where the workflow requires expanded control. Installation planning can be based on the external size of 810 x 835 x 1840 mm with power requirement 1700 W. Optional functions such as rs485 or 232 communication interface and software; embedded printer; usb data storage; wireless alarm system; co2 inlet; infrared co2 controller; light-intensity automatic control; app control; multi-level user permissions allow the chamber to be configured for data logging, alarm notification, atmosphere support and application-specific monitoring.

Technical Specifications

Parameter	Specification / Available Values
Atomfair Model	AF-PGC0350
Capacity	350 L
Temperature Control Range	Without light: 5 to 45 C; with single-layer light: 10 to 45 C; with double-layer light: 15 to 45 C
Temperature Resolution	0.1 C
Temperature Fluctuation / Uniformity	+/- 0.5 C
Humidity Function	No active humidity control stated for this configuration
Humidity Deviation	+/- 3%RH at 80%RH
Lighting Configuration	standard tricolor LED spectrum, optional full-spectrum and high-intensity modules; multi-level LED lighting system; standard tricolor LED spectrum; optional full-spectrum, four-color and high-intensity monochromatic modules

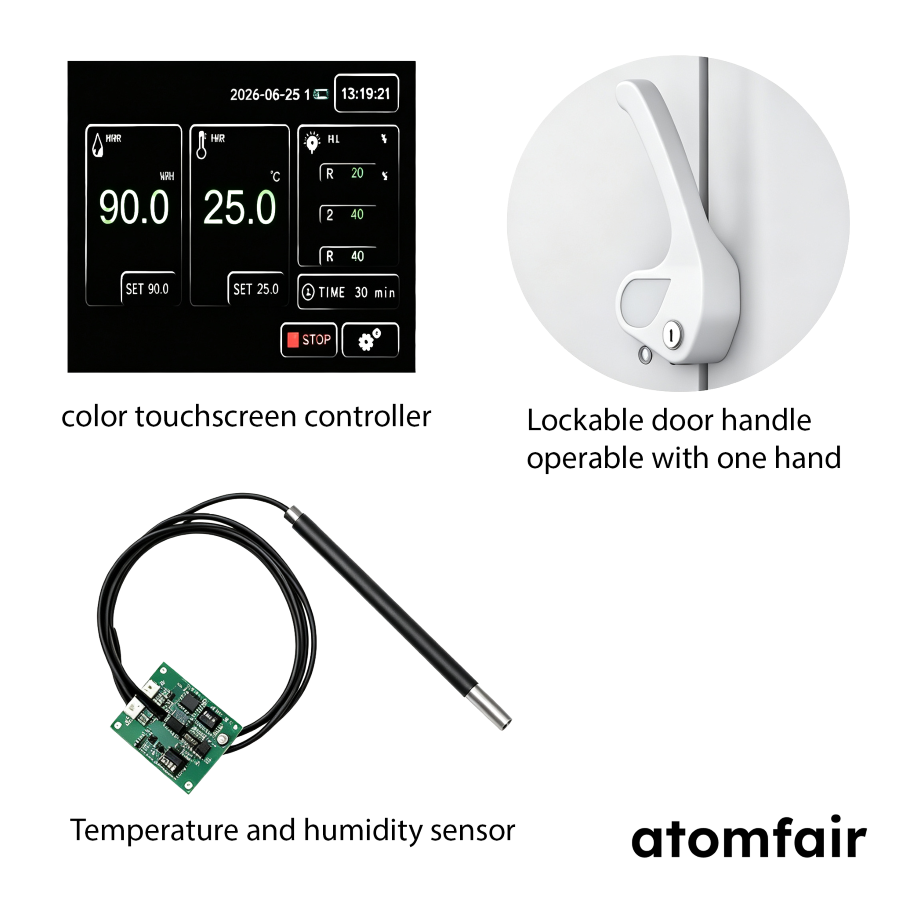

Controller	7-inch color touchscreen programmable controller
Chamber Material	SUS304 stainless-steel chamber interior
Power / Input	1700 W
Power Supply	AC 220 V, 50 Hz
Working Environment	0 to 35 C
Sensor Configuration	imported temperature-humidity sensor for H-series configurations
Cooling System	dual imported compressors with long-duration operation design
Internal Dimensions	550 x 510 x 1260 mm
External Dimensions	810 x 835 x 1840 mm
Shelves / Light Decks	2 light decks
Program Function	multi-segment programming for temperature, humidity, lighting intensity and time
Configuration Note	LED lighting configuration without active humidity control
Optional Accessories and Functions	RS485 or 232 communication interface and software; embedded printer; USB data storage; wireless alarm system; CO2 inlet; infrared CO2 controller; light-intensity automatic control; App control; multi-level user permissions

Performance Features

Programmable temperature, humidity, lighting and time control supports segmented cultivation cycles. This helps improve environmental tracking for incubation, cultivation and stability-study workflows.
SUS304 chamber construction and adjustable shelf supports help keep the interior easy to clean and configure. This supports more reliable day-to-day laboratory use in plant growth, seed germination, tissue culture, crop seedling studies, algae growth and laboratory climate simulation.
LED lighting options include tricolor standard modules plus optional full-spectrum and high-intensity solutions. This supports plant-growth or climate-chamber work that depends on repeatable illumination conditions.
Long-duration running design uses imported compressors and energy-saving cooling control. This supports dependable low-temperature performance and long-duration running stability.
Optional CO2 monitoring, wireless alarm and App features expand the chamber for advanced plant research workflows. This helps protect samples and alert operators when abnormal conditions appear.
User-account management, data storage and communication options support traceable operation. This supports more reliable day-to-day laboratory use in plant growth, seed germination, tissue culture, crop seedling studies, algae growth and laboratory climate simulation.

APPLICATION SCOPE: Suitable for plant growth, seed germination, tissue culture, crop seedling studies, algae growth and laboratory climate simulation in universities, research institutes, pharmaceutical quality-control laboratories, agricultural research programs and industrial test environments that require controlled chamber operation.

HANDLING: Confirm installation space against 810 x 835 x 1840 mm, prepare the stated power supply, and keep air inlets, exhaust paths, shelves, ports, doors and control interfaces accessible for cleaning and maintenance. Every unit is shipped with reinforced packaging to reduce movement and impact during transport; keep the packed chamber upright and use suitable lifting equipment.

IMPORTANT NOTICE: Select the required controller, lighting, humidity, communication and optional accessory configuration before ordering. Any displayed amount refers to the chamber body only and does not include freight. Freight is quoted separately and should be confirmed with shipping details.

LABORATORY PROCUREMENT SUPPORT

For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.

E-MAIL: inquiry@atomfair.com

Supplier: Atomfair

Brand: ATOMFAIR®

The chamber must be operated within an ambient temperature range of 0 to 35°C with a stable AC 220V 50Hz power supply. Adequate clearance must be maintained around air inlets and exhaust paths, and the unit must be kept upright during transport and installation.

Power Supply Constraint: The chamber requires a stable AC 220V 50Hz power supply with sufficient capacity for the 1700 W load.
Ambient Temperature Constraint: Operate the chamber only within an ambient temperature range of 0 to 35°C to ensure proper cooling and performance.
Installation Clearance Constraint: Maintain accessible clearance around air inlets, exhaust paths, shelves, ports, doors, and control interfaces for cleaning and maintenance.
Transport Orientation Constraint: Keep the packed chamber upright during transport and use suitable lifting equipment to avoid damage.

HowTo

This procedure covers the initial installation and safe handling of the LED Plant Growth Chamber. Follow these steps to position and power the chamber correctly.

Required Equipment: Lifting equipment

Confirm Installation Space
Confirm the installation space accommodates the external dimensions of 810 x 835 x 1840 mm.
Prepare Power Supply
Prepare a stable AC 220V 50Hz power supply capable of supporting the 1700 W load.
Transport and Position Chamber
Use suitable lifting equipment to transport the chamber, keeping it upright to prevent damage.

FAQ

How does the LED lighting configuration affect the temperature range of the Atomfair 350 L plant growth chamber?

Without LED lighting, the chamber maintains 5 to 45°C. With a single layer of LED lighting, the range narrows to 10 to 45°C, and with double-layer lighting, the minimum temperature rises to 15°C. This is due to heat output from the LED modules under the chamber's air-circulation design.

Can the Atomfair AF-PGC0350 plant growth chamber be used with CO2 enrichment for photosynthesis experiments?

Yes, the chamber can be equipped with optional CO2 inlet and infrared CO2 controller accessories. These allow for controlled CO2 atmosphere supplementation, which is important for plant research requiring elevated CO2 levels.

What are the power and space requirements for installing the Atomfair 350 L LED plant growth chamber?

The chamber requires a 1700 W power supply at AC 220 V, 50 Hz, and external dimensions of 810 x 835 x 1840 mm (width x depth x height). The unit should be kept upright during transport and installation, with adequate clearance for air circulation and maintenance access.

Assessment

This 350 L LED plant growth chamber provides dual-imported-compressor long-duration stability and a SUS304 stainless-steel interior for reliable clean operation, but the configuration lacks active humidity control and requires a higher minimum temperature when both light decks are active.

Positive

Dual imported compressors for long-duration stability: Two imported compressors with a long-duration operation design support dependable low-temperature performance and sustained running stability, essential for continuous cultivation or climate simulation workflows.
SUS304 stainless-steel chamber interior: The chamber interior is constructed from SUS304 stainless steel, facilitating easy cleaning and adjustable shelf configuration for reliable day-to-day laboratory use in plant growth, seed germination, and tissue culture studies.

Trade-offs

No active humidity control in this configuration: This LED lighting configuration does not include active humidity control, requiring users to consider external humidification or dehumidification if precise humidity regulation is needed for their application.
Temperature range limited when both light decks active: With both light decks operating, the minimum controllable temperature rises to 15 °C (vs. 5 °C without light), imposing a higher lower bound for experiments that require simultaneous full illumination and low-temperature conditions.
