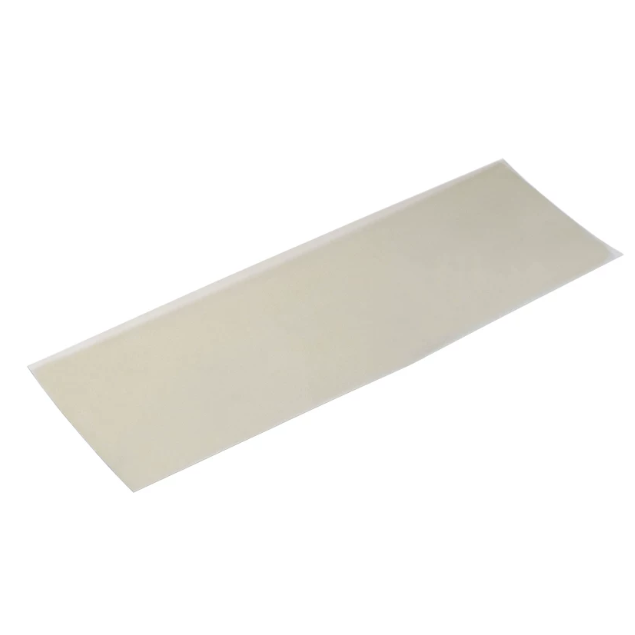

Name: ITO-PET Conductive Film 25 Ohm 100×300mm Flexible Transparent Electrode - ATOMFAIR
Brand: Atomfair®
Price: 44.00 USD
Availability: InStock

Description

ITO-PET CONDUCTIVE FILM 25 OHM 100×300MM FLEXIBLE TRANSPARENT ELECTRODE

RESEARCH GRADE MATERIAL

Product Overview

This ITO-PET Conductive Film is a laboratory-grade flexible transparent electrode manufactured via 25 Ohm magnetron sputtered deposition of indium tin oxide onto a PET transparent film substrate, followed by high-temperature annealing. Supplied in 100 × 300 mm sheets, the film delivers stable 25 Ω/sq conductivity with haze ≤3%, 100% coating adhesion, and curl ≤10 mm, making it a reliable flexible transparent electrode for bendable optoelectronic devices and printed electronics research. The annealed ITO coating exhibits excellent thermal stability, maintaining performance variation ≤1.3 after both 120-minute 80°C baking and -40°C freezing, and is fully -40°C to 80°C thermal cycling compatible. Available in three substrate thicknesses—0.05 mm, 0.125 mm, and 0.175 mm—to accommodate varying mechanical flexibility requirements in experimental designs.

Technical Specifications

PARAMETER	DETAILS
Product Name	ITO-PET Conductive Film
Product Type	Laboratory Consumable
Manufacturing Process	Magnetron Sputtering + High-Temperature Annealing
Sheet Dimensions	100 × 300 mm
Available Thickness	0.05 mm / 0.125 mm / 0.175 mm
Square Resistance	25 Ω/sq
Haze	≤3%
Coating Adhesion	100%
Curl	≤10 mm
Thermal Stability (80°C Baking 120 min)	Variation ≤1.3
Thermal Stability (-40°C Freezing 120 min)	Variation ≤1.3
Thermal Cycling Range	-40°C to 80°C
Custom Configurations	Other thickness specifications and sheet dimensions are available upon request. Please contact us via email for custom orders.

Key Features & Advantages

Wide-Range Thermal Cycling Stability: The annealed ITO-PET film withstands -40°C to 80°C thermal cycling with performance variation ≤1.3 after both high-temperature baking and cryogenic freezing, ensuring reliable electrode performance across diverse experimental thermal environments.
High Optical Quality with Low Haze: Haze ≤3% combined with 100% coating adhesion delivers minimal light scattering and zero delamination risk, essential for precision optical measurements and transparent device applications where interface quality governs performance.
Three Substrate Thickness Options: Available in 0.05 mm, 0.125 mm, and 0.175 mm, allowing selection of optimal mechanical flexibility versus handling robustness for specific experimental configurations from ultra-flexible sensors to self-supporting electrodes.
Performance Design Principle: With consistent substrate and manufacturing parameters, increasing ITO coating thickness reduces surface resistance while correspondingly decreasing optical transmittance—enabling informed thickness selection based on application-specific conductivity-transparency trade-offs.

APPLICATION SCOPE: Flexible transparent electrode for bendable organic light-emitting diodes and polymer solar cells. Transparent conductive substrate for flexible perovskite photovoltaic research. Electrode platform for wearable electrochemical sensors and biosensors. Transparent heater element for defogging and de-icing studies. Electromagnetic interference shielding layer for flexible electronics. Touch panel and flexible display prototype development. The ITO-PET film combines optical transparency, electrical conductivity, and mechanical flexibility for bendable transparent electrode applications where rigid glass substrates are unsuitable.

PACKAGING: Each ITO-PET conductive film sheet measures 100 × 300 mm and is available in three thickness specifications: 0.05 mm, 0.125 mm, and 0.175 mm. The conductive side is protected by a removable cover film. Sheets are packed flat between rigid backing boards in a protective envelope to prevent creasing and contamination during transit. Custom sheet dimensions and thickness specifications are available upon request. For bulk quantities or tailored configurations, please contact us via email.

IMPORTANT NOTICE: The fundamental performance relationship applies: increasing ITO coating thickness decreases surface resistance while reducing optical transmittance. Select thickness based on the conductivity-transparency balance required. Handle the film by edges only; avoid touching the ITO-coated surface. Remove the protective cover film immediately prior to use. Store in a dry, dust-free environment at room temperature. Avoid folding or creasing to preserve coating integrity. For detailed usage protocols, consult the user guidelines provided with the shipment.
