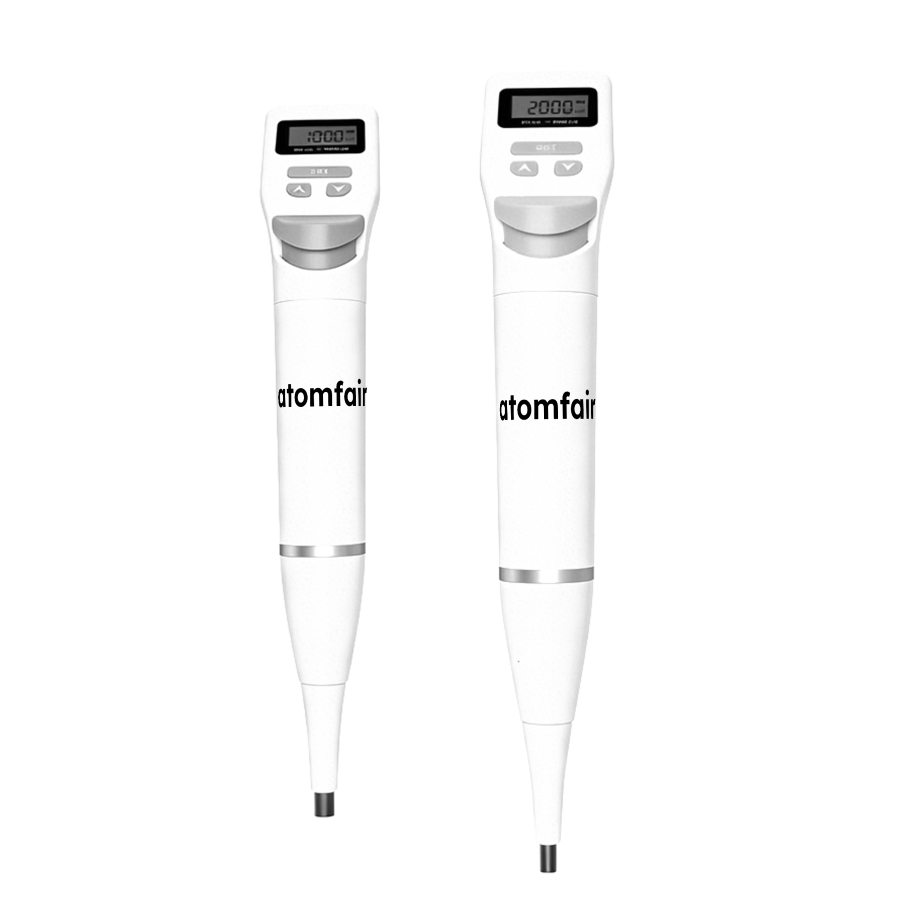

ATOMFAIR® white digital pipettes standing vertically with small electronic LCD screens showing numbers on a plain white background.

BD-200μL Digital Pipette 20-200μL ±0.8% Accuracy ATOMFAIR®

$320.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Laboratory-grade BD-200μL Precision digital pipette for coin cell electrolyte injection. Range 20-200μL, accuracy ±0.8%, resolution 0.2μL. Order now.

SKU: AFMSADEL601
Category:
Tags:
Brands:

Description

ATOMFAIR® PRECISION ELECTRIC PIPETTE FOR MICRO-VOLUME LIQUID HANDLING

RESEARCH GRADE MATERIAL

Product Overview
The ATOMFAIR® premium precision **electric pipette** is an advanced instrument custom-engineered for ultra-precise **micro-volume liquid handling** (0.02 – 0.2 mL) across rigorous scientific workflows. Uniquely optimized for sensitive **electrolyte injection in coin cells**, this motor-driven micropipette eliminates manual user variation to ensure flawless dispensing uniformity. Featuring a high-contrast digital display interface and exceptional calibration accuracy, it serves as an indispensable tool for advanced battery research and development, high-throughput biological screening, and complex chemical analytical testing regimes where fluid control parameters dictate baseline data repeatability.

Technical Specifications
PARAMETER DETAILS
Operational Volumetric Range 20 – 200 μL (Equivalent to 0.02 – 0.2 mL micro-volumes)
Volumetric Dispensing Accuracy ±0.8% with an absolute systematic error window of ±1.6 μL
Adjustment Resolution 0.2 μL micro-steps for precision volume target mapping
Power Supply & Charging Module 220V EU plug configuration infrastructure
Application Compatibility Optimized for organic solvents, battery electrolytes, aqueous buffers, and biochemical reagents
User Interface Integrated clear numeric digital screen for instant parameter monitoring
Alternative Options Explore our related catalog or custom dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.


Key Features & Advantages
  • Automated Micro-Volume Precision: Motorized internal piston propulsion completely bypasses physical thumb pressure artifacts, delivering an elite accuracy rating of ±0.8% across critical fills.
  • Ergonomic Digital Control: Outfitted with an easy-to-read numeric screen and step-less velocity metrics, enabling fast adjustments down to fine 0.2 μL increments.
  • Electrolyte-Defying Resilience: Sealed with high-grade, chemical-resistant materials to guard internal electronics from corrosive lithium/sodium salts or aggressive organic solvents used in cell fabrication.
  • Unbiased Data Repeatability: Consistent electronic aspirating and dispensing stroke parameters eliminate inter-operator discrepancies inside controlled-atmosphere dry areas.

APPLICATION SCOPE: Ideally tailored for coin cell battery fabrication (CR2032, CR2025 fluid integration), small-volume electrolyte research arrays, advanced chemical profiling, academic biochemistry assays, and quality control processing in cleanroom configurations.
LOGISTICS & CONTACT: Shipped as a complete laboratory validation assembly accompanied by a 220V EU plug adapter architecture. For commercial inquiries or deep support details, communicate directly via inquiry@atomfair.com.
IMPORTANT NOTICE / DISCLAIMER: This equipment is sold exclusively for laboratory research and prototyping applications. Regularly clean and decontaminate the lower shaft barrel assembly using authorized solvents to mitigate cross-contamination artifacts. Avoid operating or storing the instrument outside its intended voltage or thermal limits to safeguard the integrated display circuits.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

The pipette requires a mains power connection via its dedicated charger and must not be used with alternative power sources. Liquid ingress into the device body or display can cause electrical short circuits and must be strictly avoided.

  • Power Supply Use: Use only the provided charger to power the pipette and avoid using damaged cables.
  • Liquid Protection: Prevent liquid ingress into the pipette body or display during operation and cleaning.

This procedure details the safe and accurate use of the digital pipette for liquid handling in laboratory research. Follow each step in sequence to maintain measurement precision and avoid device damage.

Required Equipment: Atomfair BD-200μL Digital Pipette, Dedicated power charger, Compatible pipette tips (200μL)

  1. Charge the Device
    Connect the charger to the pipette and plug into a mains outlet until the battery is fully charged.
  2. Set the Volume
    Adjust the volume using the digital controls to the required microliter value.
  3. Attach a Pipette Tip
    Press a clean pipette tip firmly onto the nozzle until it clicks into place.
  4. Aspirate the Liquid
    Depress the plunger to the first stop, immerse the tip in the liquid, and release slowly to draw the sample.
  5. Dispense the Liquid
    Place the tip against the container wall, depress the plunger to the first stop, then to the second stop to expel all liquid.
  6. Eject the Tip
    Press the tip ejector button to discard the used tip into an appropriate waste container.
  7. Power Off and Store
    Turn off the device, disconnect the charger, and store the pipette in a dry, dust-free location.

How does the ±1.6 μL fixed error affect measurement accuracy at the low end of the pipette's 20–200 μL range?

The accuracy specification of ±0.8% ±1.6 μL means the fixed error dominates at low volumes. For a 20 μL target, total error is ±1.76 μL (8.8% relative), while at 200 μL it is ±3.2 μL (1.6% relative). Calibrating near your target volume minimizes this trade-off.

Is the Atomfair BD-200μL compatible with use inside an argon glovebox for air-sensitive battery electrolyte handling?

No, the pipette requires 220V AC power via its EU charger, which is not practical inside a glovebox. For inert-atmosphere electrolyte injection in coin cells, a battery-powered or manual pipette is recommended to avoid electrical feedthroughs and maintain atmosphere integrity.

What materials are the wetted parts of the Atomfair BD-200μL pipette made of to ensure compatibility with corrosive electrolytes such as LiPF6?

The product description does not specify wetted material composition. For handling corrosive battery electrolytes, you must confirm chemical resistance directly with the manufacturer at inquiry@atomfair.com before use to prevent material degradation or sample contamination.

The Atomfair BD-200μL Digital Pipette delivers sub-microliter accuracy (±1.6μL) at the 20–200 μL range, making it well-suited for precise electrolyte injection in coin cell assembly. Its 220V EU charger requires a compatible power source, and its fixed volume bracket excludes larger-volume liquid handling tasks.

Positive

  • High accuracy for micro-volume work: With ±0.8% ±1.6μL accuracy and 0.2μL resolution, the pipette enables reproducible electrolyte injection in coin cells and other small-volume laboratory assays.
  • Digital display for precise volume setting: The digital readout allows unambiguous volume selection down to 0.2 μL increments, reducing operator error during repetitive liquid handling tasks.

Trade-offs

  • 220V EU power dependency: The pipette requires a 220V EU charger, necessitating a voltage converter or adapter for use in regions with 110–120V or non-EU socket standards.
  • Limited volume range (20–200 μL): The instrument is restricted to a 20–200 μL working range, making it unsuitable for tasks requiring volumes outside this window, such as macro-scale liquid transfers.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
