Precision Constant Temperature Incubator, 600 × 450 × 900 mm chamber with Programmable Control
Research-grade laboratory product
|
|||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||
|
Supplier: Atomfair
Brand: ATOMFAIR®
|
The incubator must be operated within an ambient temperature range of 5 to 35°C and connected to a grounded AC 220V 50Hz power supply. The chamber temperature must not exceed 80°C, and the unit should be kept upright during transport and installed with adequate clearance for ventilation and access.
- Ambient Temperature: Operate the incubator only in an ambient temperature between +5 and +35°C to maintain specified performance.
- Electrical Supply: Connect the incubator to a grounded AC 220V 50Hz power outlet with sufficient capacity for the 600W rated power.
- Temperature Limit: Do not set the chamber temperature above 80°C to avoid damage to the unit and samples.
- Transport and Installation: Keep the incubator upright during transport and use suitable lifting equipment to prevent impact damage.
- Safety Over-Temperature: Install the optional independent over-temperature controller for unattended operation to guard against overheating.
Follow these steps to safely install the incubator, set up the power supply, and configure the programmable controller. Proper installation ensures accurate temperature control and safe operation.
Required Equipment: Lifting equipment
- Transport Preparation
Keep the packed incubator upright and use suitable lifting equipment to move it to the installation site. - Site Confirmation
Confirm that the installation space accommodates the 755 × 785 × 1130 mm external dimensions and that a grounded AC 220V 50Hz power outlet is available. - Unpacking
Unpack the incubator carefully, ensuring the unit remains upright and protected from impact. - Power Connection
Connect the incubator to the grounded power supply as specified in the technical data. - Chamber Access
Position the incubator so that the chamber, sensors, shelves, filters, doors, and control interfaces remain accessible for cleaning and operation. - Optional Accessories
Select and install any optional accessories such as printer, U-disk data storage, or UV sterilization according to the required workflow.
How does the automatic circulation fan speed control balance uniformity and sample protection in this 600 × 450 × 900 mm incubator?
The fan speed control actively adjusts airflow to maintain chamber uniformity while minimizing direct air velocity on sensitive samples. At 37 °C, temperature uniformity is specified at ±1.5 °C, and temperature fluctuation at ±0.2 °C, providing stable conditions for cultivation and holding protocols without compromising sample integrity.
Can this Precision Constant Temperature Incubator be integrated with external data logging or monitoring systems?

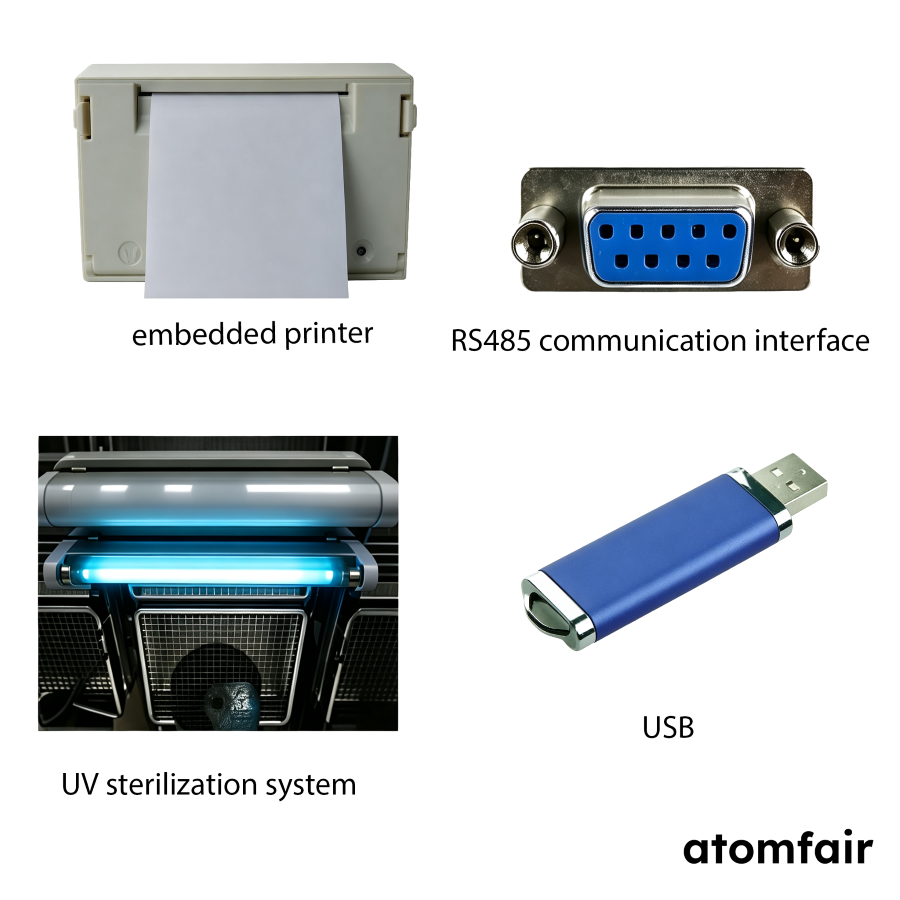

Yes, the incubator supports optional RS485 interface for external communication, as well as optional printer and U-disk data storage for record management. These accessories enable integration with laboratory monitoring or documentation workflows, but must be selected at time of order as they are not included in the base configuration.
What are the infrastructure requirements for installing this 600 W incubator with 755 × 785 × 1130 mm external dimensions?
The unit requires an AC 220 V, 50 Hz power supply and a working ambient temperature range of +5 to +35 °C. Before installation, confirm floor or bench space accommodates the 755 × 785 × 1130 mm (W × D × H) footprint and that the chamber, sensors, and control interfaces remain accessible for cleaning and operation. The independent over-temperature alarm adds a safety layer for unattended use.
The Precision Constant Temperature Incubator (AF-PTIN-600) provides programmable temperature control from RT+5 to 80°C with ±0.2°C fluctuation and ±1.5°C uniformity at 37°C, featuring a stainless steel chamber and automatic fan speed control, but requires optional accessories for data logging and UV sterilization, and operates within a limited ambient temperature range of +5 to +35°C.
Positive
- Programmable Multi-Step Controller: Supports multi-step operation for complex temperature control processes, enabling real-time parameter review and routine operation.
- Stainless Steel Chamber with Rounded Corners: Facilitates easy cleaning and maintenance, supporting repeated cleaning and sample organization.
Trade-offs
- Ambient Temperature Sensitivity: The incubator is specified for operation within +5 to +35°C ambient; performance may degrade outside this range.
- Optional Data Logging and Sterilization: Printer, U-disk storage, RS485, and UV sterilization are optional; standard configuration does not include data recording or sterilization functions.
