Temperature Humidity Chamber 786 L -10 to 100°C ATOMFAIR®
Temperature Humidity Chamber 786 L -10 to 100°C ATOMFAIR® - Image 2

Temperature Humidity Chamber 786 L -10 to 100°C ATOMFAIR®

$26,500.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research-grade 786 L humidity chamber with -10 to 100°C temperature control, 10%RH to 95%RH range, 0.1°C resolution and touchscreen programming. Order now.

SKU: AF-LE-E-BHHC-0800-CL80
Category:
Brands:

Color Touchscreen Constant Temperature and Humidity Chamber, 786 L,-10-100℃
Research-grade laboratory product
Product Overview

Color Touchscreen Constant Temperature and Humidity Chamber, 786 L,-10-100℃ is a color touchscreen constant temperature and humidity chamber built for pharmaceutical storage studies, materials conditioning, electronics testing, cosmetics evaluation and controlled humidity laboratory research. This configuration provides 786 l chamber volume, -10 to 100 C, 10%rh to 95%rh humidity control, imported 304 mirror-finish stainless-steel chamber interior and color touchscreen programmable controller with multilingual interface and curve display for stable day-to-day laboratory operation.

This family combines fluorine-free design, imported compressor and circulation fan, imported 304 stainless inner chamber, 50 mm side test port, capacitive humidity sensing and a color touchscreen controller. The chamber combines integrated imported sealed-compressor refrigeration system with PT100 temperature sensor and imported capacitive electronic humidity sensor, 4 shelves and an interior size of 700 x 860 x 1250 mm, supporting incubation, cultivation, climate simulation or conditioned test work where repeatable environmental control is important.

This family is suitable for users who need a wider 10%RH to 95%RH humidity band together with touchscreen programming, hierarchical permission management, remote alarm and optional App-based status review. Installation planning can be based on the external size of 860 x 1340 x 1995 mm and the stated power requirement of 4550 W. Optional functions such as embedded printer or thermal printer; rs485 communication interface and software; wireless alarm system; app control system allow the unit to be adapted for alarm notification, data output, programmable operation, atmosphere support or other application-specific requirements.
Technical Specifications
Parameter Specification / Available Values
Atomfair Model AF-BH0800
Manufacturer Model BH-800CL
Capacity 786 L
Temperature Control Range -10 to 100 C
Temperature Resolution 0.1 C
Temperature Fluctuation / Uniformity High temperature: +/- 0.5 C; low temperature: +/- 1 C
Humidity Function 10%RH to 95%RH
Humidity Deviation +/- 3%RH

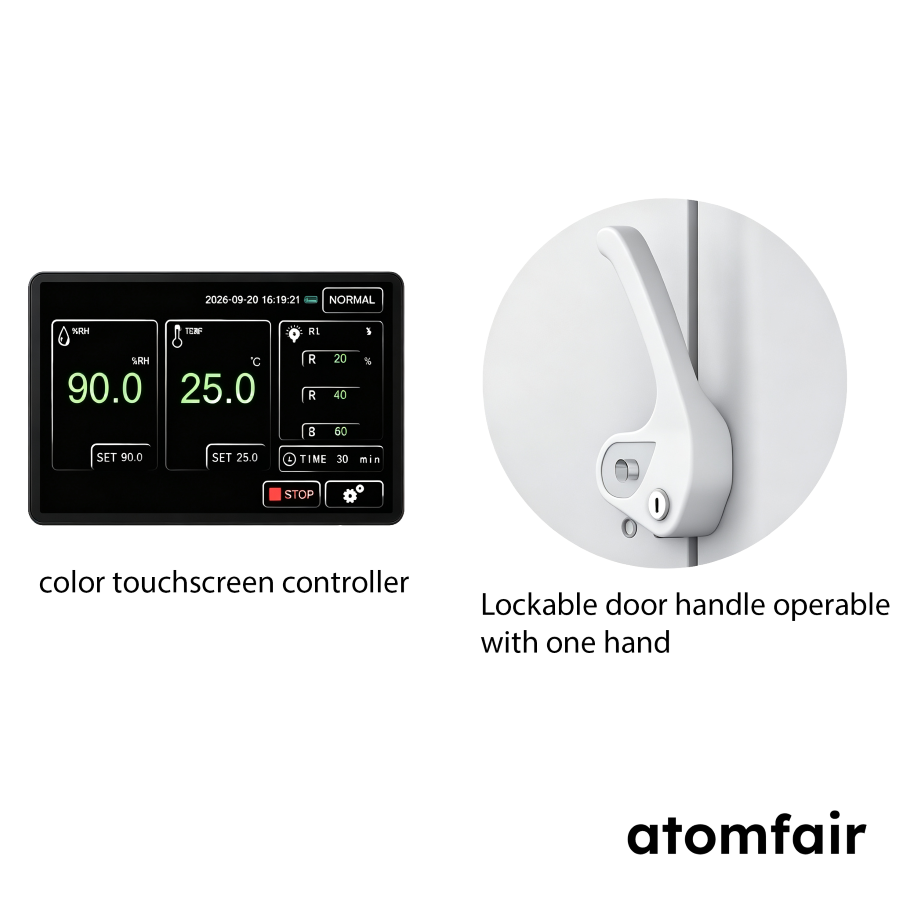

Controller color touchscreen programmable controller with multilingual interface and curve display
Chamber Material imported 304 mirror-finish stainless-steel chamber interior
Power / Input 4550 W
Power Supply AC 380 V, 50 Hz
Working Environment stable indoor laboratory installation with service access around the chamber
Sensor Configuration PT100 temperature sensor and imported capacitive electronic humidity sensor
Cooling System integrated imported sealed-compressor refrigeration system
Internal Dimensions 700 x 860 x 1250 mm
External Dimensions 860 x 1340 x 1995 mm
Shelves / Light Decks 4 shelves
Program Function Touchscreen controller supports 100 programs, 1000 segments and 999 cycle steps, with screen lock and operating-log functions
Optional Accessories and Functions embedded printer or thermal printer; RS485 communication interface and software; wireless alarm system; App control system
Performance Features
  • 10%RH to 95%RH humidity capability expands the chamber for broader conditioning and stability-study workflows. This supports humidity-sensitive incubation, cultivation, conditioning and stability-study applications.
  • Imported capacitive humidity sensing avoids wet-bulb maintenance and supports continuous real-time humidity monitoring. This supports humidity-sensitive incubation, cultivation, conditioning and stability-study applications.
  • Color touchscreen programming provides multilingual operation, live curve display and easier segment editing for staged methods. This improves parameter review, setpoint editing and day-to-day operation in controlled chamber workflows.
  • PID control and imported sealed-compressor refrigeration help improve control accuracy, running efficiency and chamber stability. This helps maintain dependable low-temperature performance and stable chamber recovery during repeated use.
  • Independent alarm and protection functions cover over-temperature, overload, over-current, compressor overheating, fan overheating and water-shortage conditions. This helps maintain dependable low-temperature performance and stable chamber recovery during repeated use.
  • Optional printer, communication, wireless-alarm and App functions help preserve records and monitor chamber status away from the instrument. This reduces operational risk by helping protect samples and notifying operators when abnormal conditions occur.
APPLICATION SCOPE: Suitable for pharmaceutical storage studies, materials conditioning, electronics testing, cosmetics evaluation and controlled humidity laboratory research in universities, research institutes, pharmaceutical quality-control laboratories, agricultural research programs and industrial test environments that require controlled chamber operation.
HANDLING: Confirm installation space against 860 x 1340 x 1995 mm, prepare the specified power supply, and keep air inlets, test ports, shelving, drain areas, doors and controller surfaces accessible for cleaning and maintenance. Every unit is shipped with reinforced packaging to reduce movement and impact during transport; keep the packed chamber upright and use suitable lifting equipment during unloading and positioning.
IMPORTANT NOTICE: Confirm the exact controller type, lighting form, humidity function, communication option and accessory package before ordering. Any displayed amount refers to the chamber body only and does not include freight. Freight is quoted separately and should be confirmed according to the delivery location and shipping method.
LABORATORY PROCUREMENT SUPPORT
For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
Supplier: Atomfair
Brand: ATOMFAIR®

Manufacturer: Atomfair LLC

Brand: ATOMFAIR®

This chamber requires a stable indoor installation with a dedicated AC 380 V, 50 Hz power supply and adequate service clearance. The unit must remain upright during transport, and all alarm conditions must be promptly addressed to prevent equipment damage or sample loss.

  • Installation Space: The chamber requires a minimum installation space of 860 x 1340 x 1995 mm with service access around all sides.
  • Power Supply: The chamber must be connected to an AC 380 V, 50 Hz power supply rated for 4550 W with appropriate overcurrent and grounding.
  • Transport Orientation: The chamber must remain upright during transport, unpacking, and positioning to prevent compressor damage.
  • Accessibility: All air inlets, test ports, shelving, drain areas, doors, and controller surfaces must remain accessible for cleaning and maintenance.
  • Alarm Response: Operator must respond to over-temperature, overload, over-current, compressor overheating, fan overheating, and water-shortage alarms without delay.

This procedure covers the unpacking and installation of the 786 L constant temperature and humidity chamber. Follow these steps to ensure safe positioning and power supply preparation.

Required Equipment: Suitable lifting equipment (e.g., forklift or pallet jack)

  1. Confirm installation space and power supply
    Confirm the installation space dimensions of 860 x 1340 x 1995 mm and prepare the specified AC 380 V, 50 Hz power supply.
  2. Unpack and position the chamber
    Unpack the chamber using suitable lifting equipment and position it upright on a level surface.
  3. Verify accessibility for maintenance
    Verify that all air inlets, test ports, shelving, drain areas, doors, and controller surfaces are accessible for cleaning and maintenance.

What temperature uniformity can I expect from the BH-800CL chamber at high vs low temperature setpoints?

The chamber specifies temperature fluctuation/uniformity of ±0.5°C at high temperature (above 0°C) and ±1°C at low temperature (below 0°C), based on the technical specifications table. This performance is supported by the PID control and imported sealed-compressor refrigeration system.

What remote monitoring and data logging options are available for the Atomfair BH-800CL chamber?

The chamber supports optional RS485 communication interface and software, a wireless alarm system, and an App control system for remote status review and alarm notification. Additionally, an embedded or thermal printer can be added for local data logging. These options help preserve records and monitor chamber status away from the instrument.

What are the installation requirements for the BH-800CL chamber, including power and space?

The chamber requires a stable indoor laboratory installation with service access around the unit. It needs an AC 380 V, 50 Hz power supply with a rated input of 4550 W. The external dimensions are 860 x 1340 x 1995 mm, and the working environment must allow access to air inlets, test ports, shelving, drain areas, doors, and controller surfaces for cleaning and maintenance.

The AF-LE-E-BHHC-0800-CL80 (786 L, -10 to 100 °C, 10–95% RH) uses an imported sealed-compressor refrigeration system with PT100 and capacitive humidity sensors, providing ±0.5 °C high-temperature fluctuation and ±3% RH deviation for controlled humidity stability studies. The 4550 W power requirement at 380 V and 860 x 1340 x 1995 mm footprint demand dedicated lab infrastructure.

Positive

  • Capacitive humidity sensor avoids wet-bulb maintenance: Imported capacitive electronic humidity sensor provides continuous real-time monitoring without wet-bulb wick replacement, reducing routine maintenance in humidity-sensitive incubation and stability-study workflows.
  • Color touchscreen with 100-program capability: The programmable controller supports 100 programs, 1000 segments, and 999 cycle steps with multilingual interface and live curve display, enabling complex staged methods for conditioning and testing protocols.

Trade-offs

  • Requires 380 V three-phase power supply: The 4550 W input demands AC 380 V, 50 Hz power, which may not be standard in all laboratory settings and requires dedicated electrical infrastructure planning.
  • Large footprint with service access constraints: External dimensions of 860 x 1340 x 1995 mm require stable indoor installation with clearance for air inlets, test ports, and drain areas, limiting placement flexibility in crowded labs.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
