Constant Humidity Chamber 500 L -10 to 100 °C ATOMFAIR®

Programmable Touchscreen Constant Temperature and Humidity Chamber, 500 L,-10-100℃

Research-grade laboratory product

Product Overview

Programmable Touchscreen Constant Temperature and Humidity Chamber, 500 L,-10-100℃ is a programmable touchscreen constant temperature and humidity chamber built for scientific research, biotechnology tests, pharmaceutical packaging, industrial raw-material studies and product lifetime evaluation. This configuration provides 500 l chamber volume, -10 to 100 C, 35%rh to 95%rh humidity control, imported 304 mirror-finish stainless-steel chamber interior and programmable color touchscreen controller with curve display and multi-language interface for stable day-to-day laboratory operation.

This family combines fluorine-free design, imported 304 stainless-steel inner chamber construction, balancing temperature-humidity control, test-port access and color-touchscreen editing as key chamber elements. The chamber combines balancing-control refrigeration system with multi-point safety protection with high-temperature humidity sensor for real-time monitoring, 3 shelves and an interior size of 670 x 720 x 1020 mm, supporting incubation, cultivation, climate simulation or conditioned test work where repeatable environmental control is important.

This range is intended for laboratories that want staged touchscreen programs, multilingual interface, stored curves, PID self-tuning and safety protection in one humidity-chamber platform. Installation planning can be based on the external size of 850 x 1100 x 1930 mm and the stated power requirement of 3850 W. Optional functions such as embedded printer; rs485 communication interface and software; wireless alarm system; communication interface and embedded printer are alternative options that should be selected according to the required configuration allow the unit to be adapted for alarm notification, data output, programmable operation, atmosphere support or other application-specific requirements.

Technical Specifications

Parameter	Specification / Available Values
Atomfair Model	AF-BCL0500
Manufacturer Model	BPS-500CL
Capacity	500 L
Temperature Control Range	-10 to 100 C
Temperature Resolution	0.1 C
Temperature Fluctuation / Uniformity	High temperature: +/- 0.5 C; low temperature: +/- 1 C
Humidity Function	35%RH to 95%RH
Humidity Deviation	+/- 3%RH
Controller	programmable color touchscreen controller with curve display and multi-language interface
Chamber Material	imported 304 mirror-finish stainless-steel chamber interior
Power / Input	3850 W
Power Supply	AC 220 V, 50 Hz
Working Environment	+5 to 30 C
Sensor Configuration	high-temperature humidity sensor for real-time monitoring
Cooling System	balancing-control refrigeration system with multi-point safety protection
Internal Dimensions	670 x 720 x 1020 mm
External Dimensions	850 x 1100 x 1930 mm
Shelves / Light Decks	3 shelves
Program Function	Touchscreen controller supports up to 100 programs, 1000 segments and 999 cycle steps, with a maximum time setting of 99 h 59 min per segment

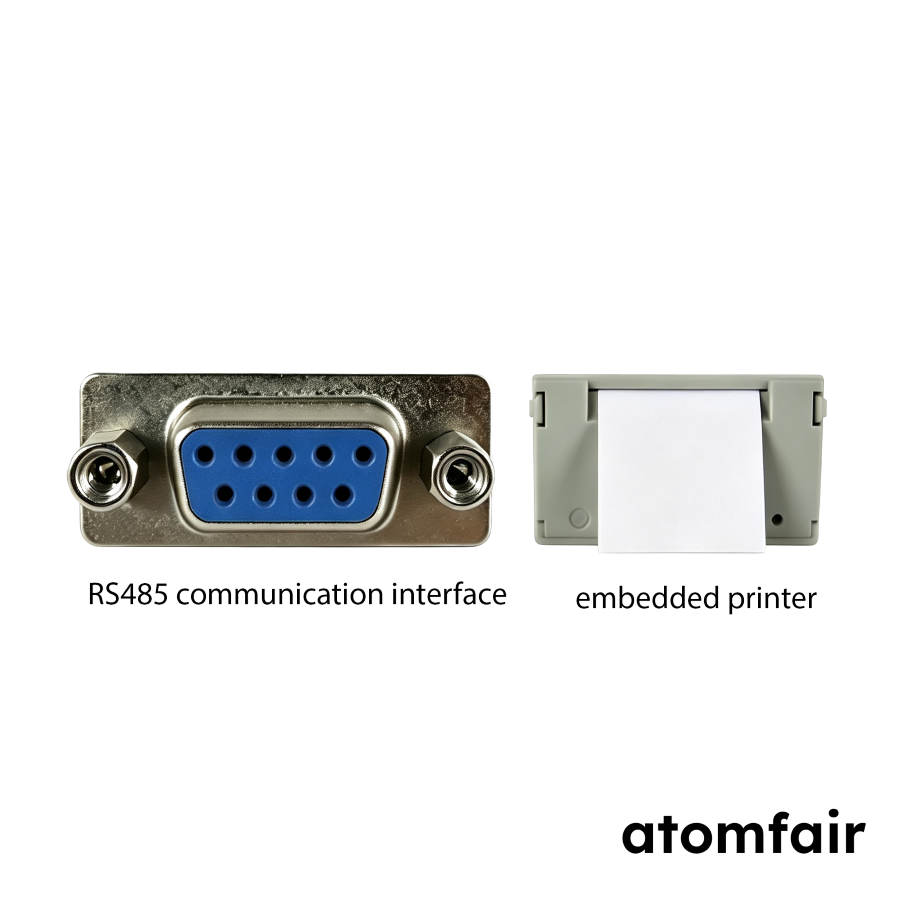

Optional Accessories and Functions	embedded printer; RS485 communication interface and software; wireless alarm system; communication interface and embedded printer are alternative options that should be selected according to the required configuration

Performance Features

Color touchscreen operation helps simplify program editing, parameter review and real-time curve observation during chamber use. This improves parameter review, setpoint editing and day-to-day operation in controlled chamber workflows.
Large program capacity supports staged environmental methods that need repeated cycles and multiple segments. This supports staged test methods and repeatable laboratory workflows that need cycle-based control.
PID auto-tuning helps correct temperature and humidity deviations quickly for more stable chamber control. This supports humidity-sensitive incubation, cultivation, conditioning and stability-study applications.
Balancing-control refrigeration and imported stainless-steel chamber construction support reliable long-duration operation. This helps support repeated cleaning, chamber hygiene and long-duration laboratory use.
Independent alarm and protection functions cover over-temperature, overload, over-current, fan and compressor conditions. This helps maintain dependable low-temperature performance and stable chamber recovery during repeated use.
Optional communication, printer and wireless-alarm functions make it easier to store, replay and supervise chamber records. This reduces operational risk by helping protect samples and notifying operators when abnormal conditions occur.

APPLICATION SCOPE: Suitable for scientific research, biotechnology tests, pharmaceutical packaging, industrial raw-material studies and product lifetime evaluation in universities, research institutes, pharmaceutical quality-control laboratories, agricultural research programs and industrial test environments that require controlled chamber operation.

HANDLING: Confirm installation space against 850 x 1100 x 1930 mm, prepare the specified power supply, and keep air inlets, test ports, shelving, drain areas, doors and controller surfaces accessible for cleaning and maintenance. Every unit is shipped with reinforced packaging to reduce movement and impact during transport; keep the packed chamber upright and use suitable lifting equipment during unloading and positioning.

IMPORTANT NOTICE: Confirm the exact controller type, lighting form, humidity function, communication option and accessory package before ordering. Any displayed amount refers to the chamber body only and does not include freight. Freight is quoted separately and should be confirmed according to the delivery location and shipping method.

LABORATORY PROCUREMENT SUPPORT

For model selection, accessory matching, installation-space review, power-supply confirmation or configuration support, contact our technical sales team.

E-MAIL: inquiry@atomfair.com

Supplier: Atomfair

Brand: ATOMFAIR®

The chamber requires a stable +5 to 30°C working environment and a dedicated AC 220V, 50Hz power supply rated at 3850W. Operate within -10 to 100°C and 35% to 95%RH ranges; the unit includes over-temperature, overload, over-current, fan, and compressor protection systems.

Power Supply Constraint: The unit must be connected to a dedicated AC 220V, 50Hz power supply with sufficient capacity for the 3850W load to avoid over-current conditions.
Environmental Range: The chamber is designed for operation within +5 to 30°C ambient temperature and 35% to 95%RH humidity, with temperature control from -10 to 100°C.
Cooling and Refrigeration: The balancing-control refrigeration system includes multi-point safety protection and requires unrestricted airflow around the unit for proper heat rejection.
Chamber Material: The imported 304 mirror-finish stainless-steel interior supports repeated cleaning and hygiene protocols but may be damaged by abrasive or corrosive cleaning agents.
Safety Protections: Independent alarm and protection functions cover over-temperature, overload, over-current, fan, and compressor conditions to prevent equipment damage and sample loss.

HowTo

Unpack and position the chamber upright in the prepared installation space of 850 x 1100 x 1930 mm. Connect to the specified AC 220V, 50Hz power supply and verify all safety protections before operation.

Required Equipment: Lifting equipment

Confirm Installation Space
Confirm that the installation space measures at least 850 x 1100 x 1930 mm and ensure adequate clearance for air inlets, test ports, and drain areas.
Prepare Power Supply
Prepare a dedicated AC 220V, 50Hz power supply with sufficient capacity to handle the 3850W load and install appropriate over-current protection.
Unpack and Position Chamber
Keep the shipped chamber upright during unpacking and use suitable lifting equipment to move and position the unit at the prepared location.
Inspect Chamber Access Points
Inspect all test ports, shelving, door seals, and controller surfaces for accessibility and cleanliness before connecting power.
Verify Safety Protections
Verify that the multi-point safety protection system, including over-temperature, overload, over-current, fan, and compressor alarms, is functional before starting the unit.

FAQ

What is the temperature uniformity difference between the high and low temperature ranges in the Atomfair BPS-500CL chamber?

The temperature fluctuation/uniformity is ±0.5°C at high temperature and ±1°C at low temperature, as specified in the technical data. This difference means the chamber achieves tighter control at elevated temperatures than at sub-zero conditions, which is critical for applications requiring precise thermal stability across the -10 to 100°C range.

What are the critical installation infrastructure requirements for the 500 L constant temperature and humidity chamber?

The chamber requires a 3850 W power supply at AC 220 V, 50 Hz, and an ambient working environment of +5 to 30°C. The external dimensions are 850 x 1100 x 1930 mm, so adequate clearance must be provided for ventilation and maintenance access. Confirm the installation space and power supply before ordering.

How does the balancing-control refrigeration system with multi-point safety protection affect long-term reliability?

The balancing-control refrigeration system is designed for stable low-temperature performance, and multi-point safety protection covers over-temperature, overload, over-current, fan, and compressor conditions. This configuration helps maintain dependable chamber recovery during repeated use and reduces the risk of sample loss due to system failure.

Assessment

The AF-LE-E-BPSC-0500-CL50 (BPS-500CL) is a 500 L programmable constant temperature and humidity chamber with -10 to 100°C range and 35–95%RH control, featuring a PID auto-tuning touchscreen controller, 304 stainless steel interior, and balancing refrigeration. It is suited for long-duration incubation, stability testing, and climate simulation but requires a 3850 W 220V/50Hz supply and a conditioned laboratory environment (+5–30°C) for reliable operation.

Positive

Large program capacity for complex protocols: Supports up to 100 programs, 1000 segments, and 999 cycles with per-segment timing up to 99 h 59 min, enabling multi-stage environmental test methods without external sequencing.
PID auto-tuning and balancing refrigeration: PID self-tuning and balancing-control refrigeration system maintain temperature and humidity stability, reducing deviation in humidity-sensitive incubation and conditioning applications.

Trade-offs

High power and electrical requirements: Rated 3850 W at AC 220V/50 Hz, requiring a dedicated circuit and limiting compatibility with labs using 60 Hz or 110V supplies without a transformer.
Restricted ambient operating range: Specified working environment of +5 to 30°C restricts placement to climate-controlled laboratory spaces; operation outside this range may degrade performance or trigger protection.
