CO2 Incubator 80 L Gas-Jacket 90 °C Sterilization ATOMFAIR®

This incubator requires an ambient temperature of +5 to +30 °C and AC 220 V, 50 Hz power supply. The unit must remain upright during transport and be installed with accessible chamber, sensors, and control interfaces for cleaning and inspection.

• Sterilization Process Specification: The 90 °C high-temperature and high-humidity sterilization cycle is required for chamber decontamination between culture runs.
• Power Failure Alarm Condition: The system monitors power failure, CO2 deviation, door opening, and multiple temperature sensor conditions to alert operators during unattended operation.

Follow these steps to set up the incubator for advanced cell culture. Confirm the installation environment meets ambient temperature and power requirements before proceeding.

Required Equipment: AC 220 V, 50 Hz power supply

1. Verify Installation Space
   Verify that the installation area accommodates the 590 × 687 × 790 mm external dimensions and provides access to the chamber, sensors, and control interfaces.
2. Connect Power Supply
   Connect the incubator to an AC 220 V, 50 Hz power supply meeting the 500 W rated operating power requirement.
3. Set Temperature and CO2 Parameters
   Set the desired temperature between RT + 3 and 55 °C and the CO2 concentration between 0 and 20% using the touchscreen interface.
4. Perform Sterilization Cycle
   Initiate the 90 °C high-temperature and high-humidity sterilization cycle to decontaminate the chamber before loading cultures.
5. Load Culture Vessels
   Load culture vessels onto the three included shelves, ensuring proper spacing for airflow and sensor access.
6. Monitor Environmental Parameters

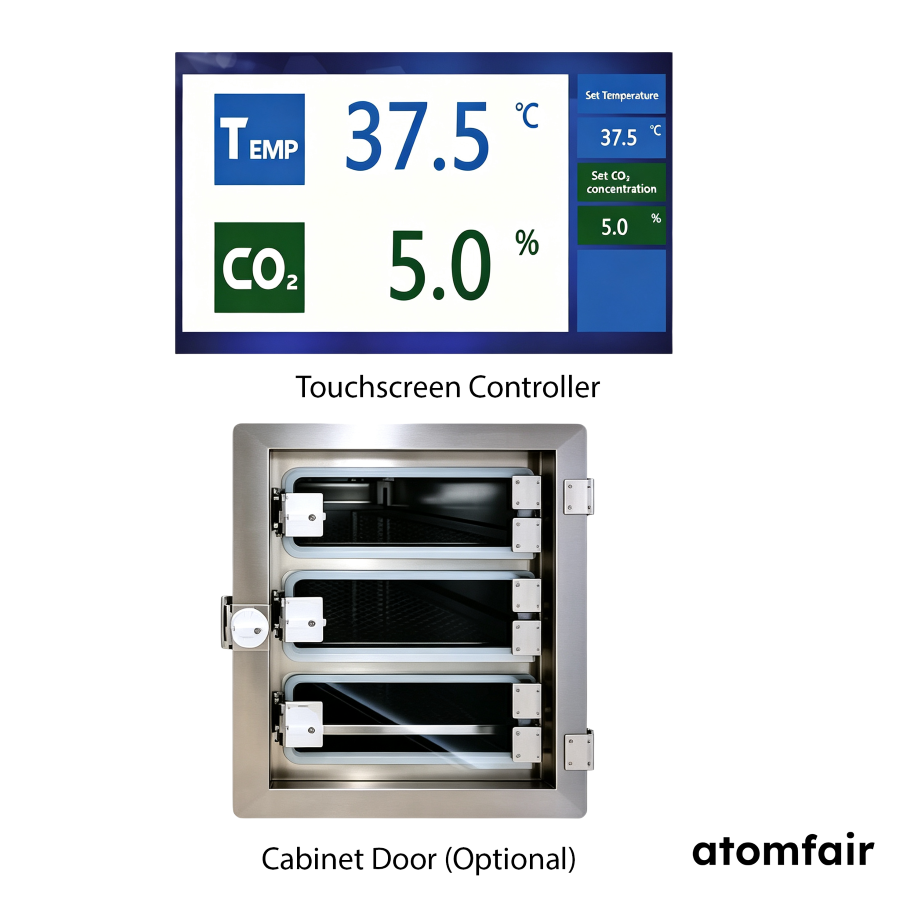

   Monitor temperature, CO2 levels, and optional O2 concentration via the touchscreen trend charts and alarm system during incubation.

The 80 L Gas-Jacket 90 °C Sterilization CO2 Incubator (High-End Touchscreen Series) offers precise temperature (±0.1°C stability) and CO2 control (±0.1% accuracy, rapid recovery), with a 90°C sterilization cycle and touchscreen-based data logging, though it requires a controlled ambient environment and optional O2 monitoring for advanced gas management.

Positive

• Precise temperature and CO2 control: Temperature stability ±0.1°C and uniformity ±0.3°C at 37°C, combined with infrared CO2 sensing accuracy of ±0.1% and recovery to 5% within 3 minutes after door opening, ensure reproducible incubation conditions.
• 90°C sterilization and digital traceability: High-temperature humid sterilization at 90°C supports chamber decontamination, while the touchscreen controller provides trend curves, alarm review, and 72-hour running record lookup for documentation.

Trade-offs

• Ambient temperature range constraint: The incubator requires a working ambient temperature of +5 to +30°C, limiting placement in unconditioned or hot environments without additional climate control.
• O2 control is optional add-on: Zirconia O2 control from 1% to 90% is listed as an optional accessory, not included by default, requiring additional procurement and configuration for hypoxia or hyperoxia experiments.
